# How to use an Ignition Coil

I had second thoughts about adding this page to my website, questioning whether it's such a good idea to encourage people to build their own cannons. But seeing the dangerous methods of ignition that some people use, I figure it's in the interest of safety for people to use a proper ignition system and trigger their cannons from a safe distance.

### Operating principles

An ignition coil is essentially an autotransformer with a high ratio of secondary to primary windings. By "autotransformer", I mean that the primary and secondary windings share some of the windings, so the transformer provides no isolation.

The ratio of secondary to primary turns in an ignition coil is somewhere around 100:1. The ignition coil is operated directly off a 12 volt source. The coil doesn't quite operate like an ordinary transformer. An ordinary transformer will produce output current at the same time that input current is applied. An ignition coil actually does most of its work acting as an inductor. When the ignition coil is connected to the battery, the inductor is 'charged' with current. It takes a few milliseconds for the current to build up the magnetic field - this on account of reverse voltage caused by the increase in magnetic field. During this short charging period, maybe a thousand volts are produced at the high-voltage terminal, not enough to produce a spark.

The actual spark itself is produced when the breaker contacts open. For an ideal inductor, the current and voltage relate by:

V = L dI

where V is voltage, L is inductance (in henrys) and dI is the rate of change of the current.

The abrupt change in current will cause a spike in high-voltage across the coil. The change in current is on the primary side, but because the primary and secondary coils have a large mutual inductance (this is where the transformer part comes in), you get a spike on the order of 100 or more volts on the primary, and 10000 volts on the secondary. Even the primary side of the coil can give you a bit of a jolt if you hold the wires while disconnecting power. Also note that any contacts you will use will also get some sparks when disconnected.

A less theoretical way of looking at it is that disconnecting the current source will cause the magnetic field in the coil to collapse (because nothing is forcing it to be magnetic anymore), and the rapid change of magnetic field in turn induces a large voltage in the windings.

In older engines with four our more cylinders, the high-voltage terminal of the coil is connected to the distributor, which is just a fancy high-voltage rotating switch for selecting which spark plug the coil connects to. This was cheaper than having one ignition coil for each cylinder. However, the whole arrangement is finiky, and newer vehicles have a coil for each two cylinders, with each coil sparking two cylinders at once. This makes ignition coils like the one shown very difficult to find.

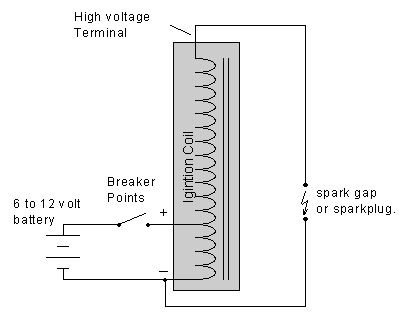

One thing that cars usually have, that I didn't include in the circuit, is a small capacitor across the breaker points, often called the "igniter". This capacitor (in cars before electronic ignition) had a tendency to fail over time, so you may have heard people refer to it. The capacitor, together with the inductance of the coils, makes the coils resonate, which makes for a brighter spark. I don't fully understand why. It also helps protect mechanical contacts a bit, but cars these days no longer have mechanical ignition contacts. For the purpose of firing a cannon, things work well enough without one.

### Using an ignition coil

Using an ignition coil is fairly straightforward. Connecting 8 AA batteries in series provides more than enough current and voltage. The AA batteries should last for a lot of firings, so you might as well connect the batteries together by soldering wires onto them. Even a 9 volt alkaline battery is sufficient to produce sparks with an ignition coil.

Connect the high-voltage terminal of your ignition coil to the tip of the spark plug. The high-voltage terminal is at the top center of the coil, with the deep socket. Use wire with good insulation - use at least the kind of cable used in a power cord or something with thicker insulation. Its best to keep the wires a few centimeters apart, and away from any moisture. High-voltage will find its way through any defects in the insulation. Keep the wires less than a meter long. Use another wire to connect the body of the spark plug to one of the terminals of the ignition coil (doesn't matter which one).

Next run two wires from the positive and negative terminals of the ignition coil. If you can't tell which is which, don't worry, swapping positive and negative won't make much difference. I recommend you use a long, but fairly thick wire for this, so that you can trigger your cannon from a safe distance. Your ears will thank you.

Connect the negative one to the battery. Then take the positive wire, and quickly swipe it over the other battery terminal. You should see and hear sparks at the ignition coil as you do this. Be sure to hold the wire you are swiping on the battery by just the insulation. If you do end up holding the conductor, and the batteries with the other hand, you will get a bit of an electrical jolt as you do this -- though not enough to be dangerous.

A pair of screws screwed through the ABS pipe can be used instead of a spark plug. However, I found on my cannon that after just a couple of firings, there was enough moisture buildup in the cannon to prevent this arrangement from sparking. The moisture comes from the water vapour, which is a product of the combustion, along with carbon dioxide. A proper spark plug will not short out as easily. To mount the plug, just drill a hole slightly smaller than the outside thread of the spark plug, and then screw the plug into the unthreaded hole in the ABS pipe. It should hold quite well that way. But even with a spark plug, moisture buildup from repeated firings can short out the plug. I recommend blowing fresh air through the cannon between shots.

### Danger? What Danger?

Even though an ignition coil will produce about 10,000 volts, it is actually less dangerous than the 110 volts from a wall socket. This is because the ignition coil does not produce enough current to do a lot of harm. Also, the ignition coil will only produce high output voltages in transients on the input current. So if you are just firing it by stroking the wires across the battery terminals, you only get short bursts of voltage, not the continuous electricity coming out of a wall socket. So if safety is your concern, the safety that is to be gained by being able to fire your cannon from a distance outweighs the perceived danger of the high-voltage.

### Oil furnace ignition coils

Older oil furnace ignition coils are very different from automotive ignition coils. Oilder coils were typically about 10x15x15 cm and rectangular, weighing 5 kg or more. They were essentially just transformers. Newer ones use much smaller transformers operated by some high frequency electronics. Oil furnace coils need 120-volt power directly from the wall. Those things are seriously dangerous. The power from those things can kill you if you are unfortunate enough to get zapped by it. I don't recommend their use for this sort of purpose. They need a lot of AC power and cannot be operated from batteries.
