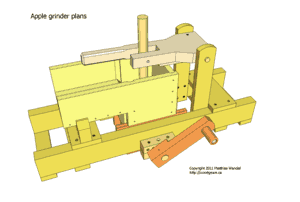

Apple grinder plans preview

Copyright 2011 Matthias Wandel

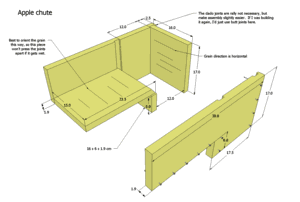

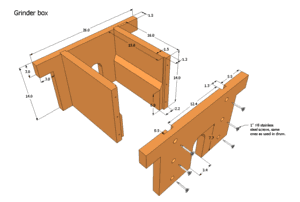

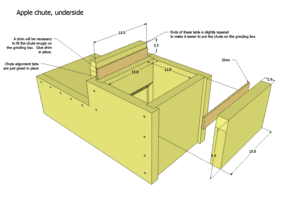

Grinder drum and box

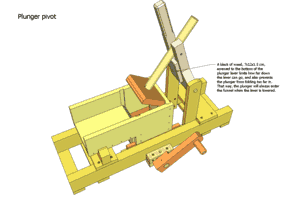

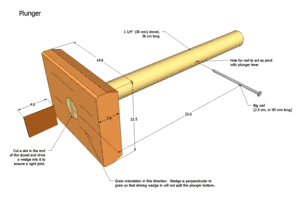

Plunger

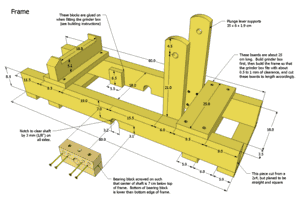

The frame

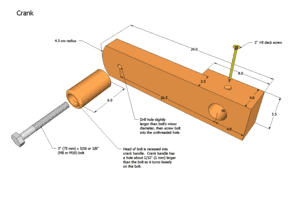

Powering the grinder


1:1 drawings

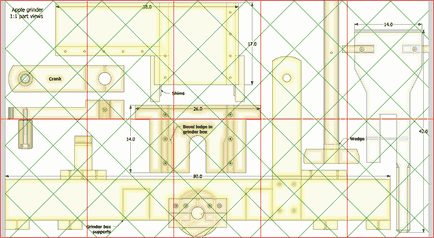

The plans also include 1:1 printable drawings. These are printed over several sheets and then pasted together. The 1:1 drawings are very handy for checking the parts against. Or you can avoid measuring alltogether by using the 1:1 printout as a guide.

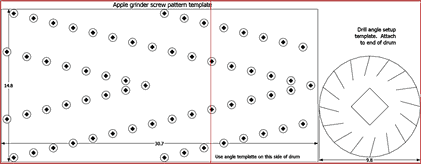

A 1:1 drawing of the screw pattern is also included. This pattern is wrapped around the wooden drum to mark the screw locations. The circle with the lines on it is to help set up the angle on the drill press.

Detailed building instructions

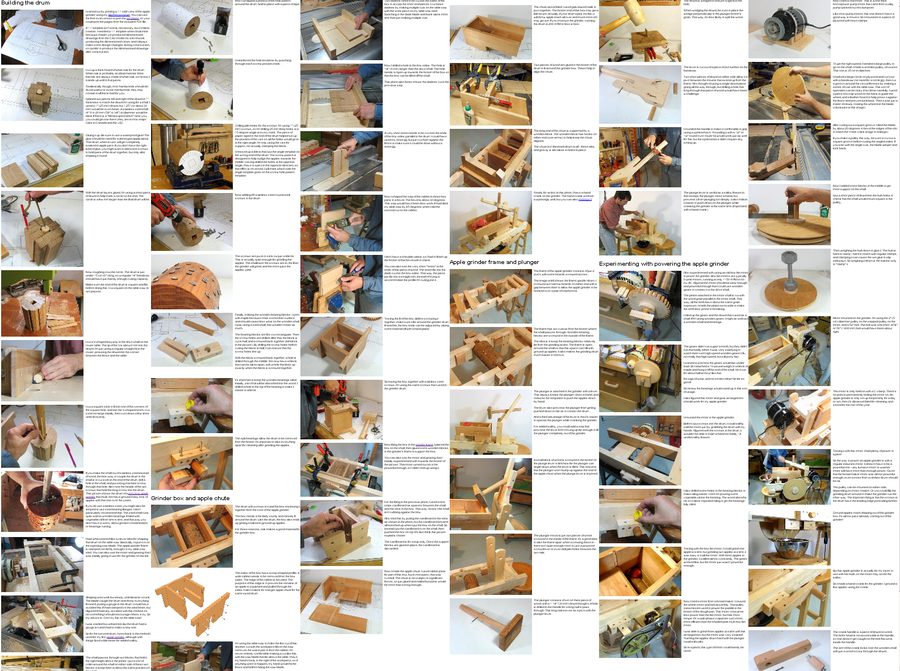

The plans also include building instructions with over 60 photos showing various steps in the construction.

Back to the plans
