Copy carver specifications

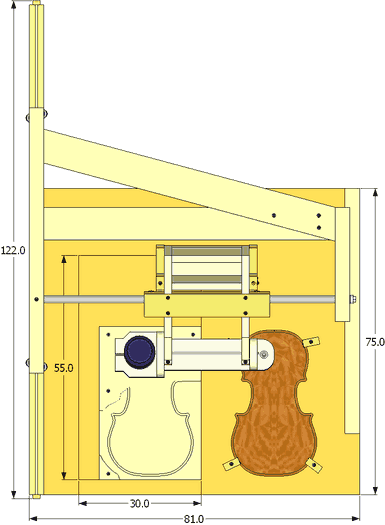

Overall dimensions

Length122 cm48"
Width81 cm32"
Height25 cm10"

Copy capacity

Length55 cm *22" *
Width28 cm **9" **
Height10 cm8"
* Length is only limited by how long the rails are.
** Width can be extended to 45 cm by widening frame and carriage.

Router

I used a Bosh Colt (GKF 600) router, with a 71mm diameter body. Other "palm" routers or laminate trimmers can also be used.
Diameter60-75 mm
