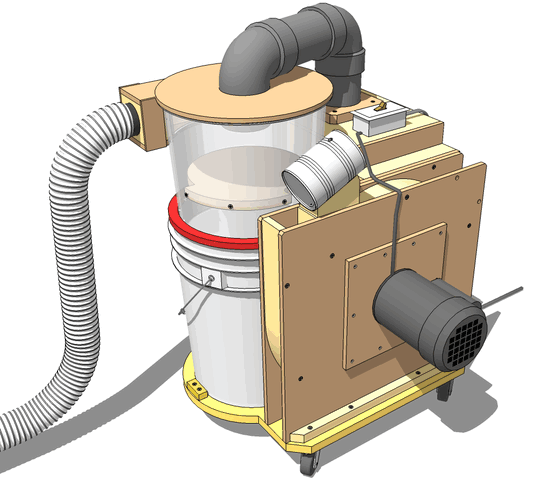

Small dust collector plans for sale

The small dust collector is smaller than a big dust collector, and is quieter and uses less power than a shopvac. Using a cyclone made of transluscent buckets for collection makes it easy to see when it gets full. Handles fine chips and planer shavings.

The plans include:

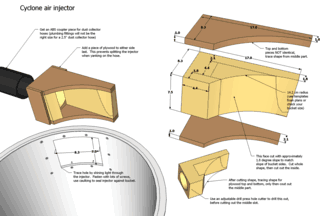

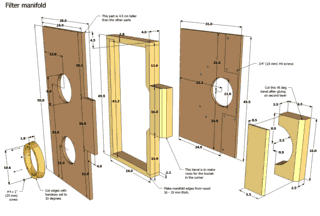

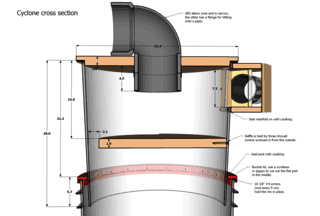

  • Detailed drawings of every part of the dust collector

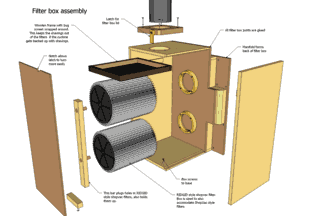

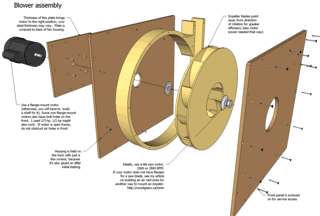

  • Dimensioned 3D views and assembly drawings
  • More detailed photographs of the finished unit
  • Full-scale 1:1 drawings of the critical parts so you can just paste them onto the wood instead of making measurements.
  • Detailed instructions on how to build it, with over 130 photos

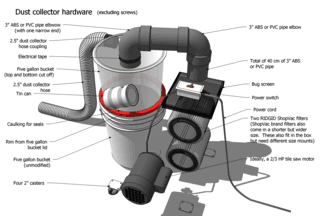

  • Hardware list
  • A SketchUp model which allows you to view them from any angle, disassemble it, or regenerate each of the views in the plans by clicking on the 'scene' tabs in SketchUp. SketchUp is a free, easy to use CAD program, downloadable from Google.
More about this dust collector

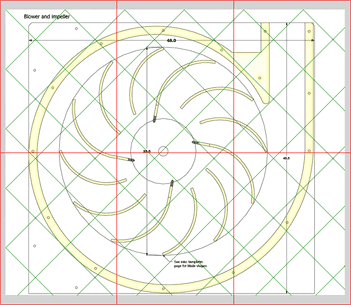

The plans include printable 1:1
cutting templates to simplify construction
See what's in the plans

The plans are in metric units, except for drill and dowel sizes, which are in imperial units. You can generate plans in imperial units simply by changing the units to "imperial" in SketchUp under "model info", but the units will not work out to even numbers like they do in metric.

Please also consider these important safety notes

Cost: $15

On payment, you will be able to download your plans immediately.
The plans are a 13 megabyte zip file (your computer, Mac or PC, already knows how to open zip files) A download link will also be emailed to you automatically. Some email programs may treat this email as spam, so please check your spam folder if you did not receive the email.

You can checkout with your credit card or PayPal account.

If you encounter any problems with the download link or email, feel free to contact me at:
Sales email address
