Tipping ramp mouse trap plans

These are the plans for my tipping ramp mouse trap, which I first came up with during these experiments and then refined some more

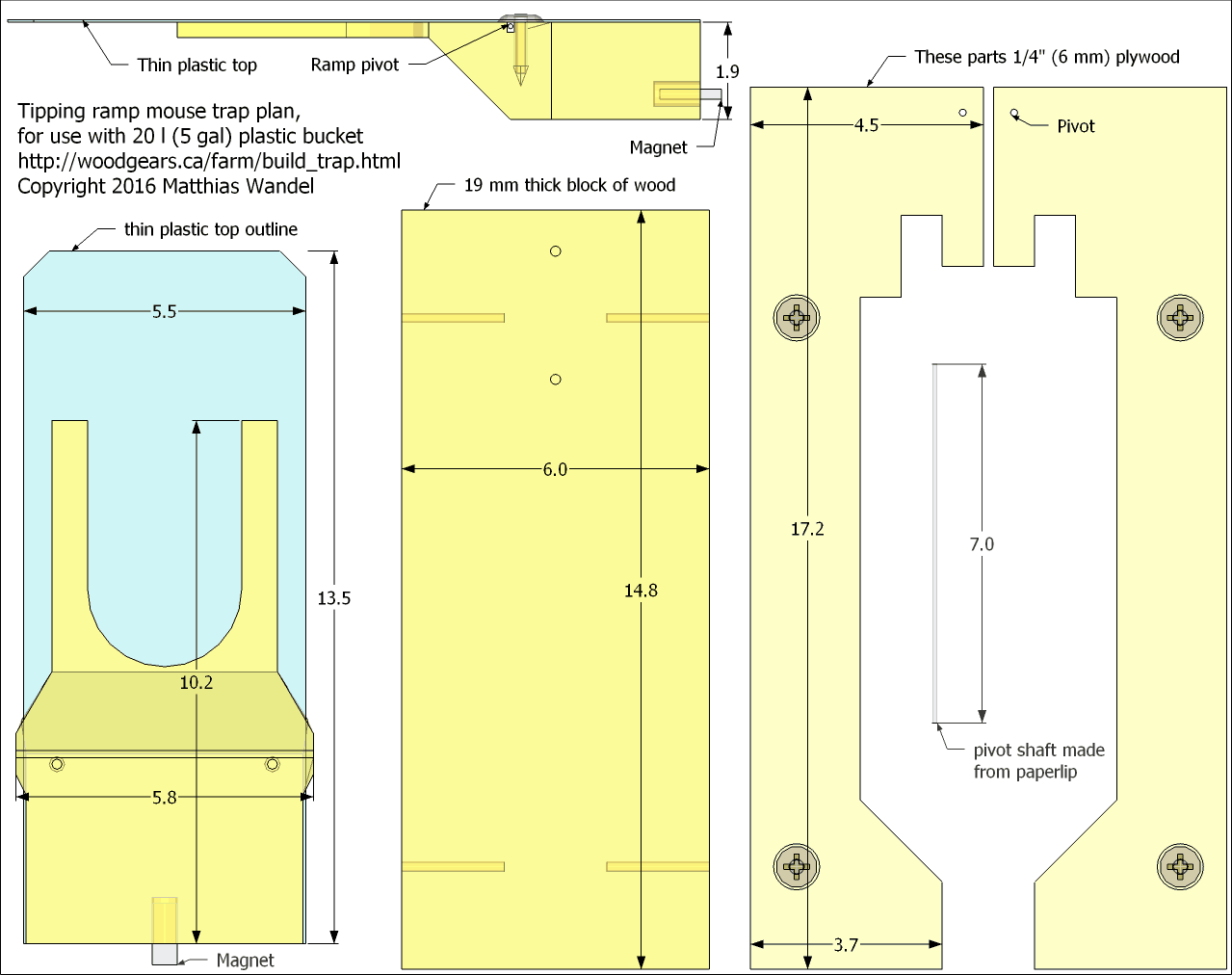

At left, my mouse trap plans. These need to be printed so that the outline is 24 x 19 cm in size.

The easiest way to print them is to just download and print the free pdf of the plans

For how to build the trap, please see my article on building this trap
