Wooden jointer plans plans - preview
Copyright 2012 Matthias Wandel

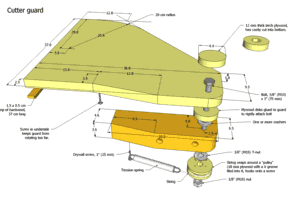

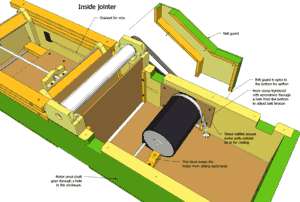

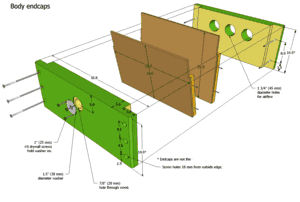

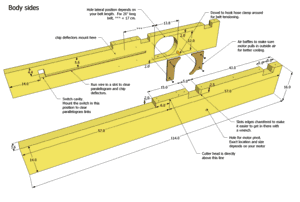

Jointer body

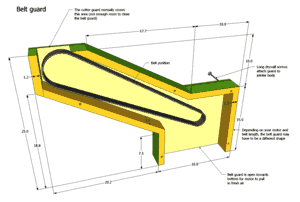

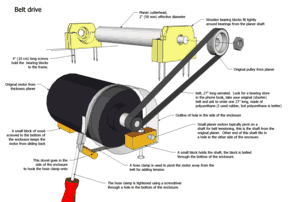

Drive

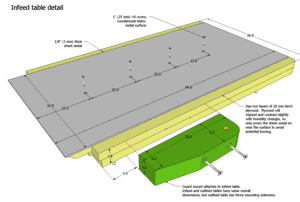

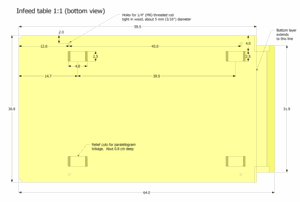

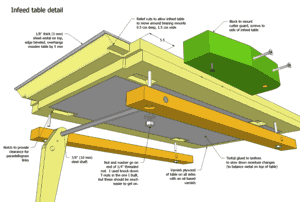

Tables

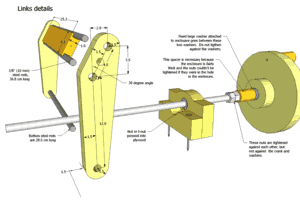

Cut adjustment

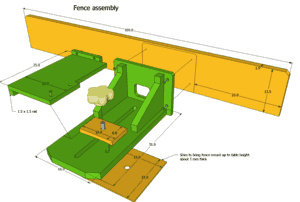

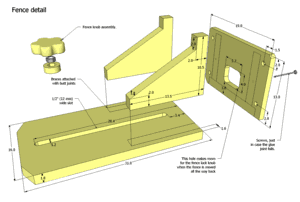

Fence
Frame

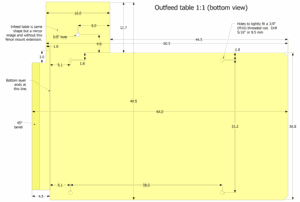

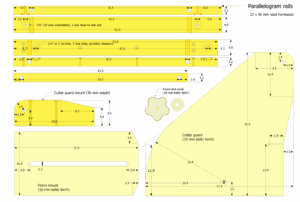

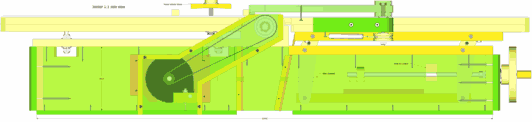

1:1 drawings
 |
The plans also include 1:1 printable drawings. These are printed over several

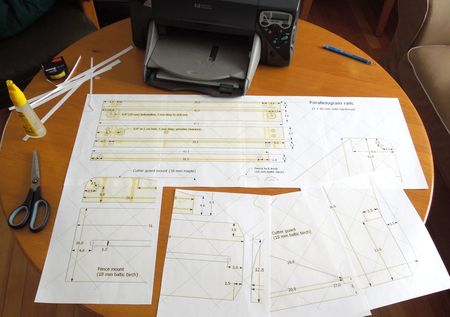

sheets and then pasted together. You can paste the 1:1 printouts onto the wood for cutting out on a bandsaw, or just use them to check the parts against. Having full scale printouts really helps to get a better sense of scale for everything. Where exact dimensions aren't critical, I just mark parts straight from the printouts without even measuring. |
|
|
|
|
|
|
|
Detailed building instructions

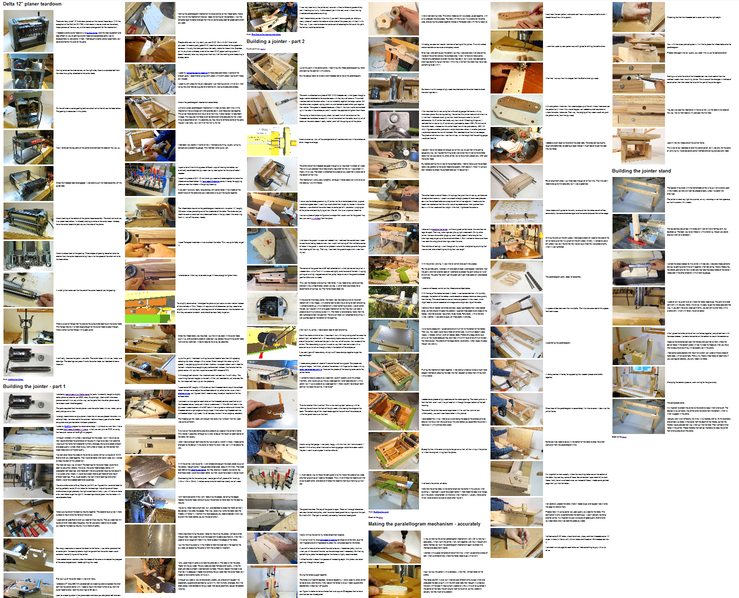

The plans also include building instructions with over 90 photos showing variyous steps in the construction.
