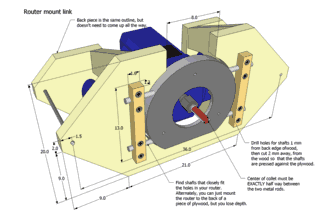

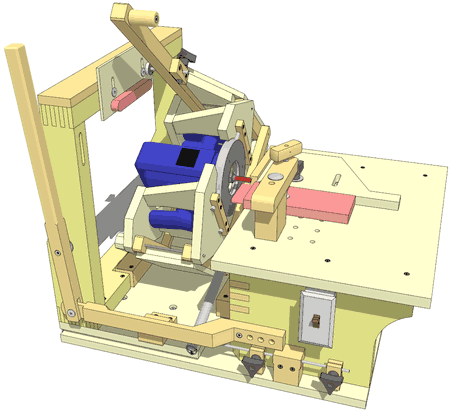

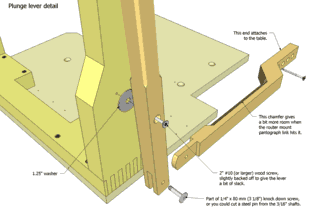

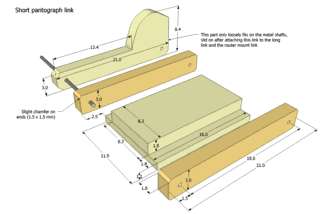

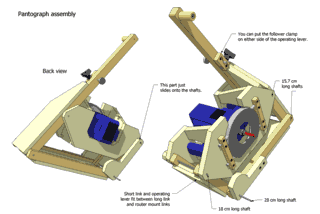

Pantorouter XL plans The Pantorouter XL is a larger version of my original pantorouter. It's designed to accommodate plunge routers, which the smaller pantograph of the original pantograph cannot accommodate. I have produced a detailed set of drawings for this machine. You can see a preview of the plans so you can get a better sense of what's inside before buying. Included with the plans: Detailed drawings of every part of the Pantorouter 26 drawings and illustrations of the parts Full-scale printable templates of many parts. Full-scale printable drawings of the assembled machine. Detailed building instructions for the machine, with over 250 photos More photos of the finished Pantorouter A SketchUp model of the Pantorouter, which allows you to view the Pantorouter from any angle, disassemble it, or regenerate each of the views in the plans by clicking on the 'scene' tabs in SketchUp. SketchUp is a free, easy to use CAD program. Also see the specifications

The plans include printable 1:1 cutting templates to simplify construction

See what's in the plans

The plans are in metric units, except for drill and shaft sizes, which are in imperial units. You can generate plans in imperial units simply by changing the units to "imperial" in SketchUp under "model info", but the units will not work out to even numbers like they do in metric.
Please also consider these important safety notes

Cost: $20 USD or equivalent in your currency

On payment, you will be able to download your plans immediately.
The plans are a 23 megabyte zip file (your computer, Mac or PC, already knows how to open zip files)

If you encounter any problems with the download link or email, feel free to contact me at:
