Turning a segmented bowl

This article by Pekka Svinhufvud


             ;

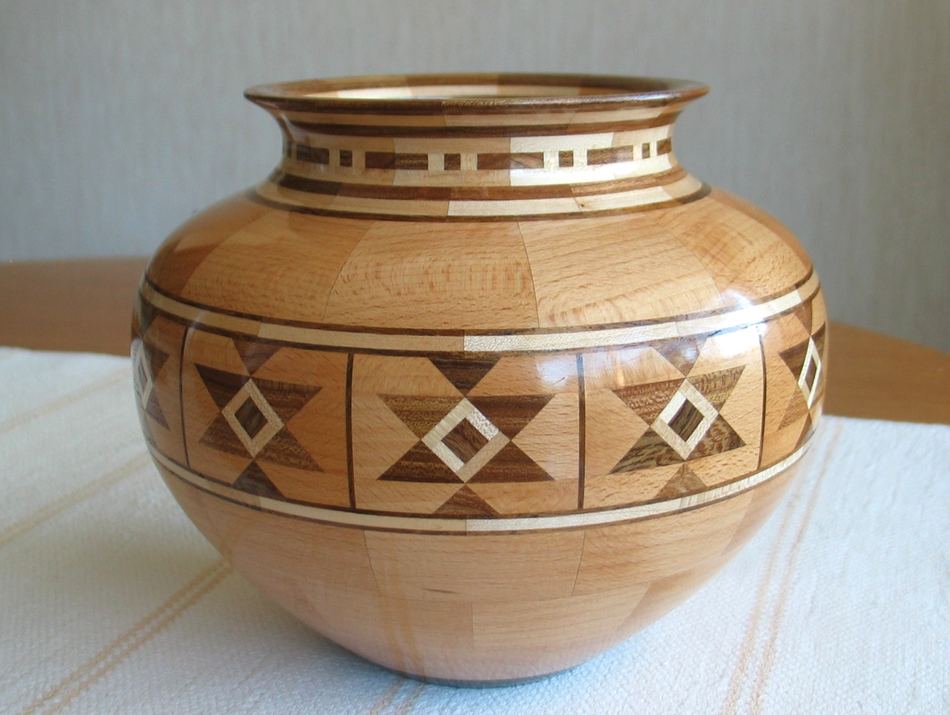

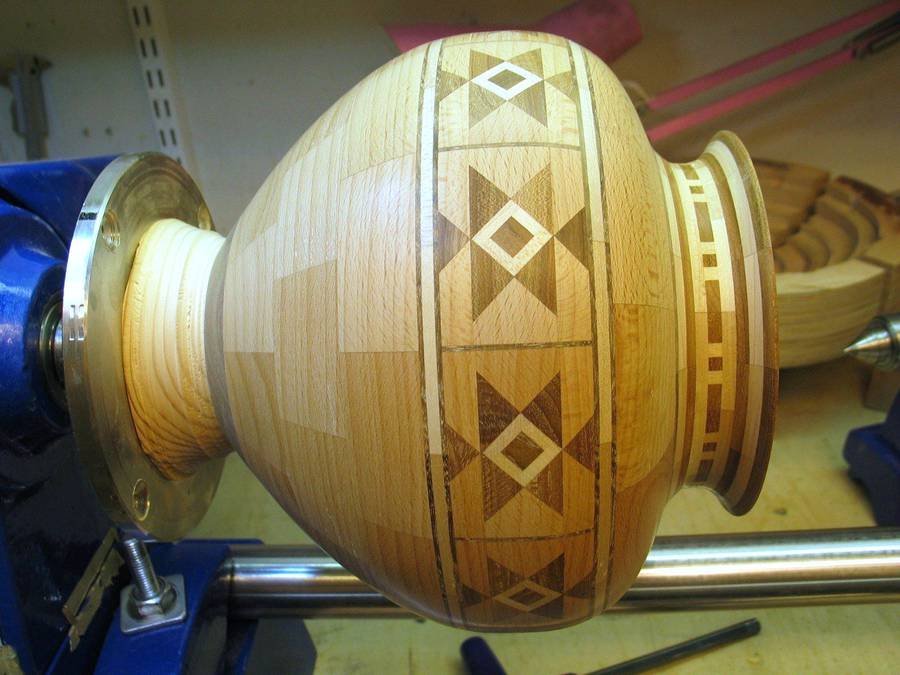

This bowl is a segmented turning, made of several hundreds pieces of wood of different species.

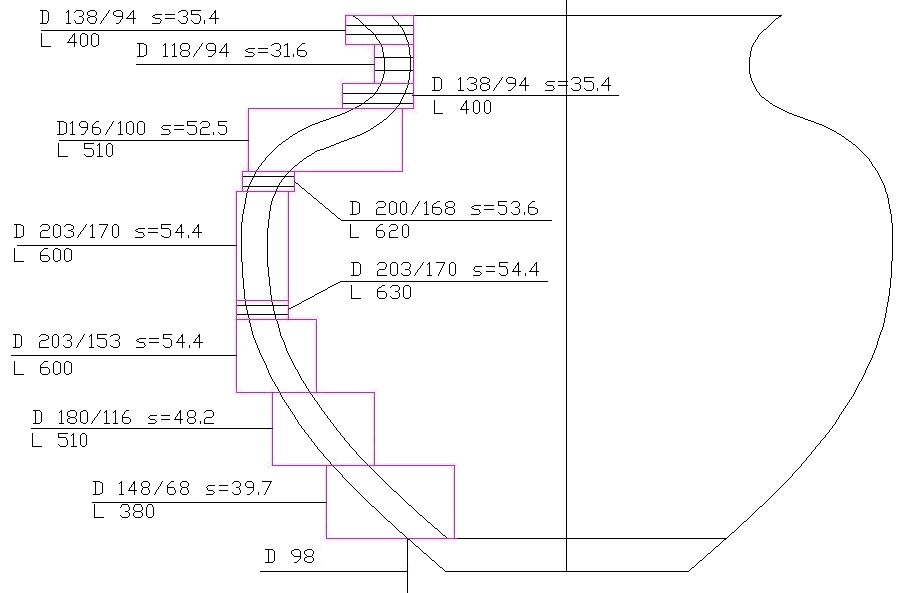

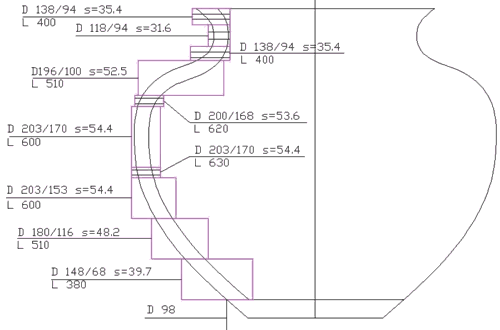

First I draw the shape with intended wall thickness, 5 or 6 mm. Then ring diameters are drawn with some margin for roundness and position errors. The segments lengths are calculated from the drawing.

Segment lengths (outside edge) are calculated:

      segment length = outer diameter * 3.14 / number of segments.

This bowl has 12 segments /ring so segment length for 200 mm diameter will be:

      200 * 3.14 / 12 = 53.6 mm

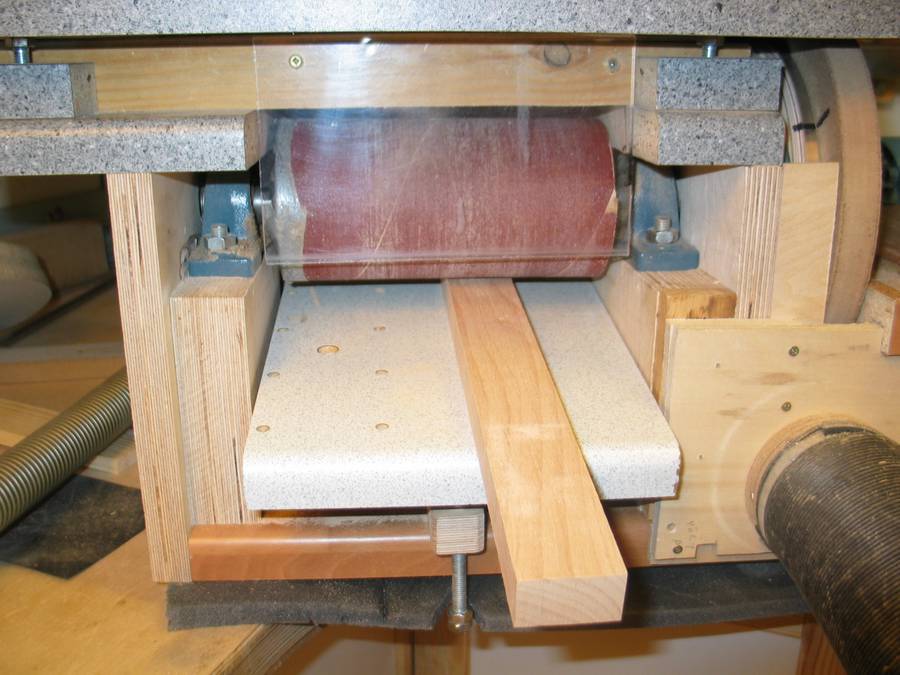

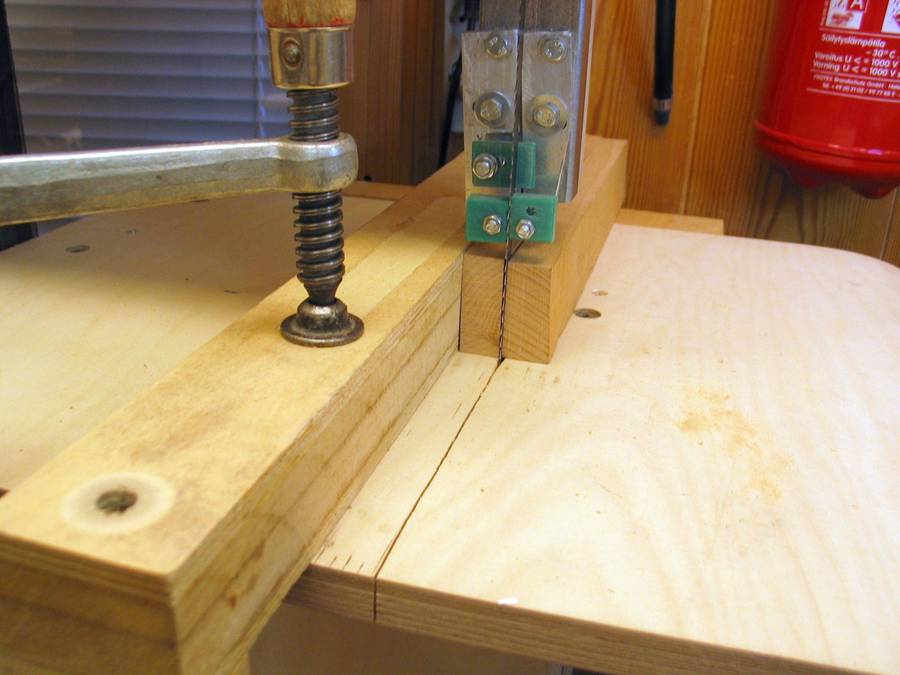

Ripping the material comes first. Boards must be of equal width and thickness. I use my bandsaw, but a table saw can also be used. I thickness the boards with a simple homemade thickness sander. I cut the segments with my homemade miter saw, but a table saw can also be used.

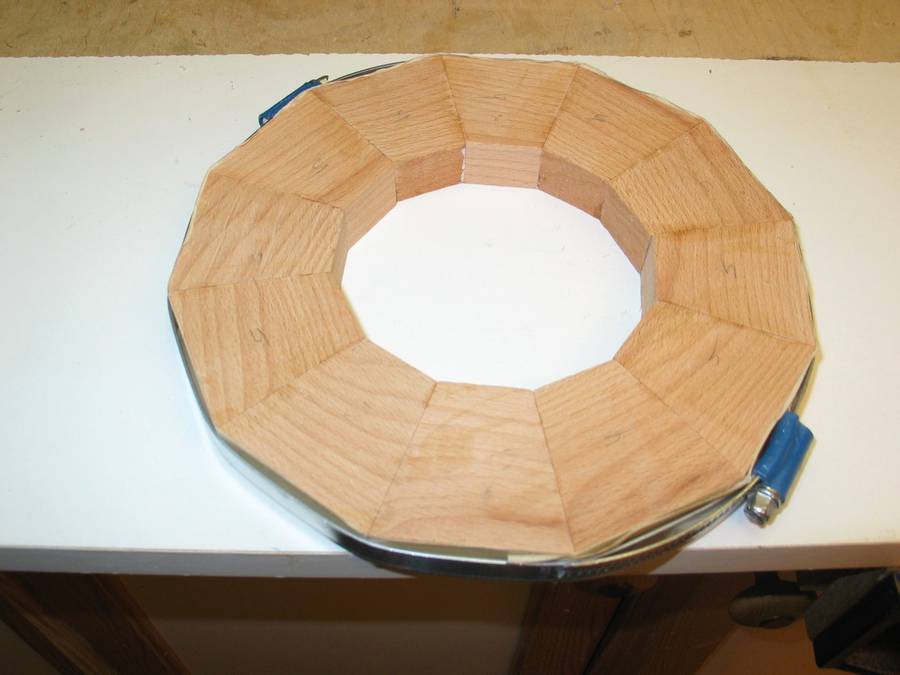

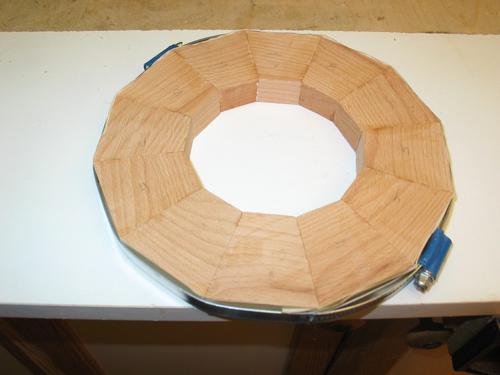

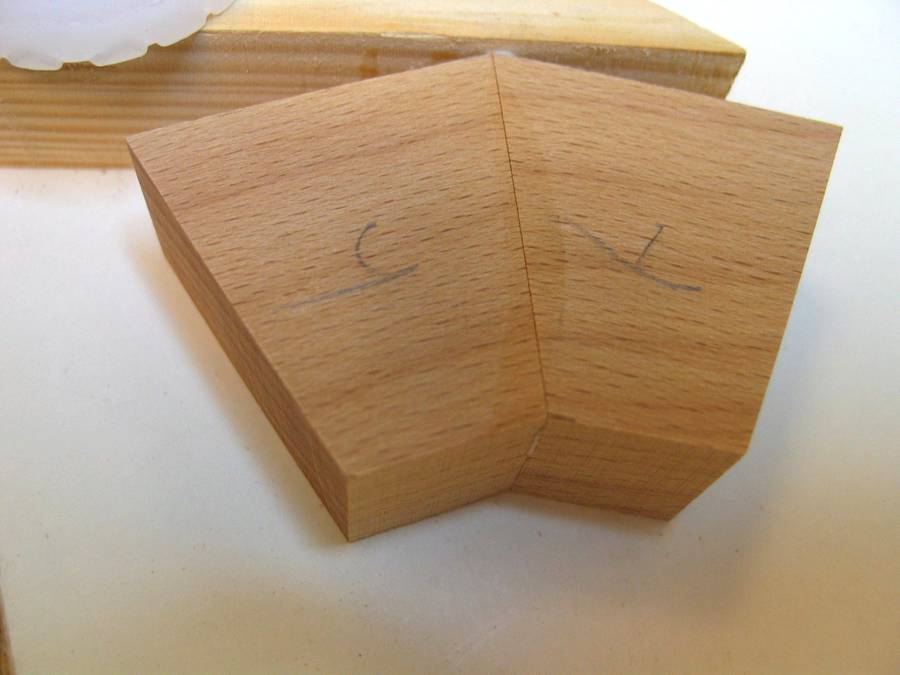

The segment's miter angle must be very accurate so that the pieces will form a full circle. Segments are glued with PVA wood glue. One method is to glue two pieces together (end grain against end grain) then pairs are glued together and so on. Another method, if you have cut the pieces very accurately, is to glue all pieces at the same time, clamping the ring together with a hose clamp.

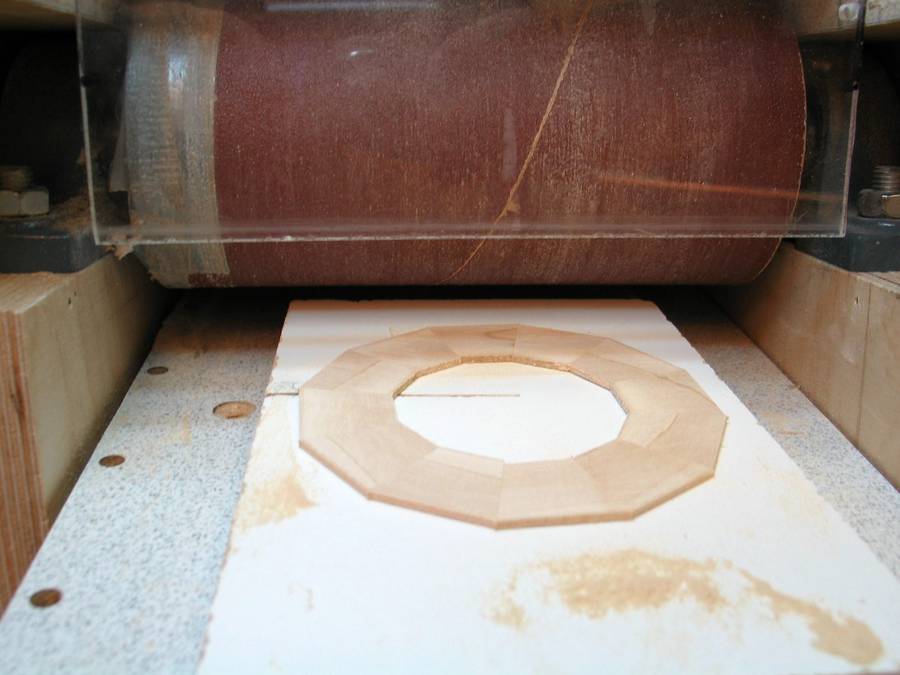

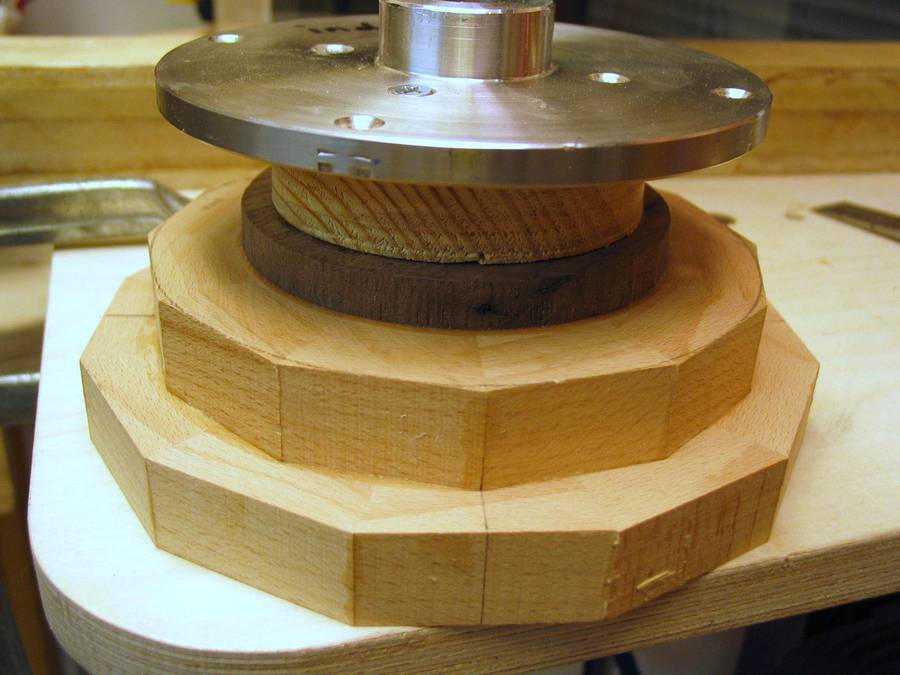

After the glue is dry the rings can be thickness sanded. The first ring is glued to a solid wood disk on a lathe face plate. Then the next ring is glued to the first ring, carefully centered and "brick layed" as above right photo. With the brick lay pattern we get a very strong construction.

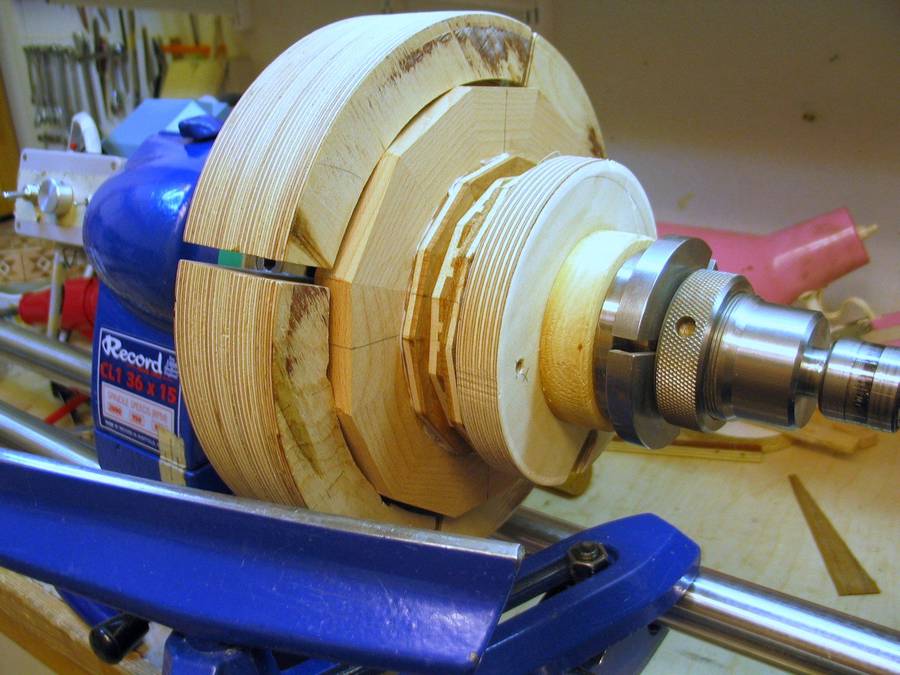

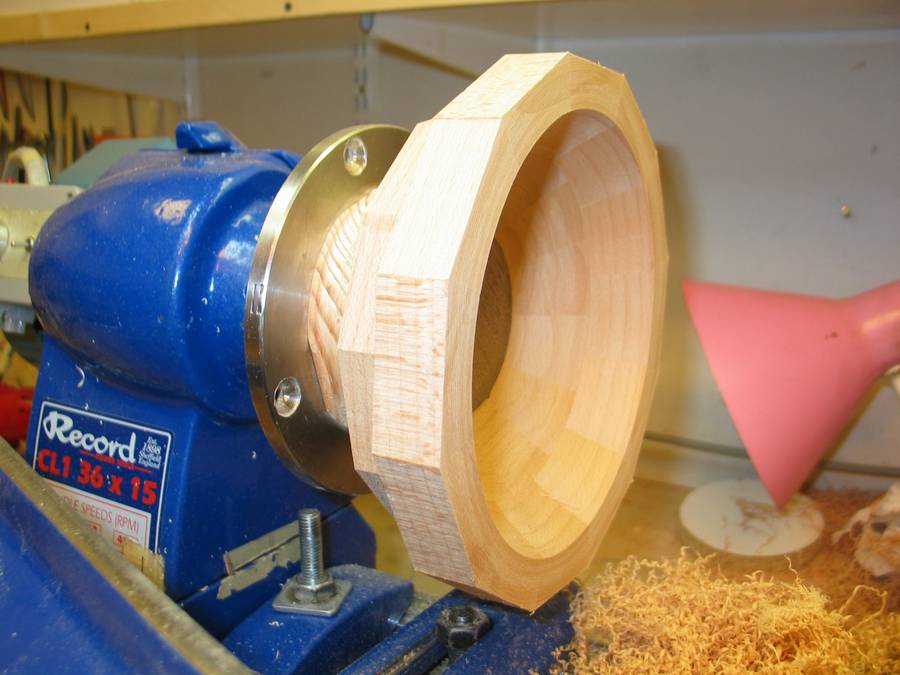

After some rings are glued it is easy to turn the inside to rough shape, but not from the outside, because of stability. The lathe makes for a very effective gluing clamp, pressing the rings together with the tailstock.

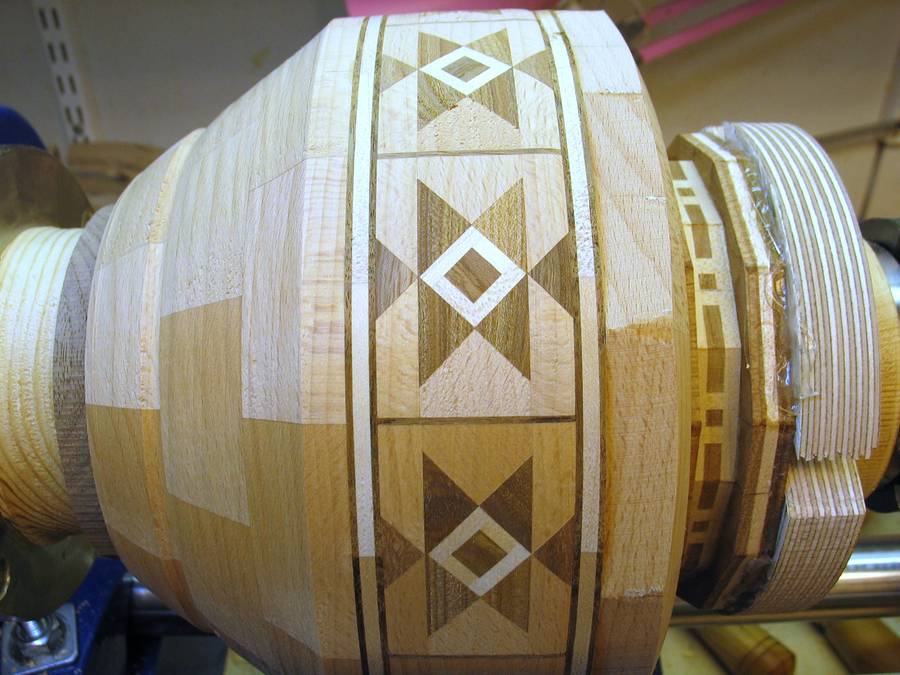

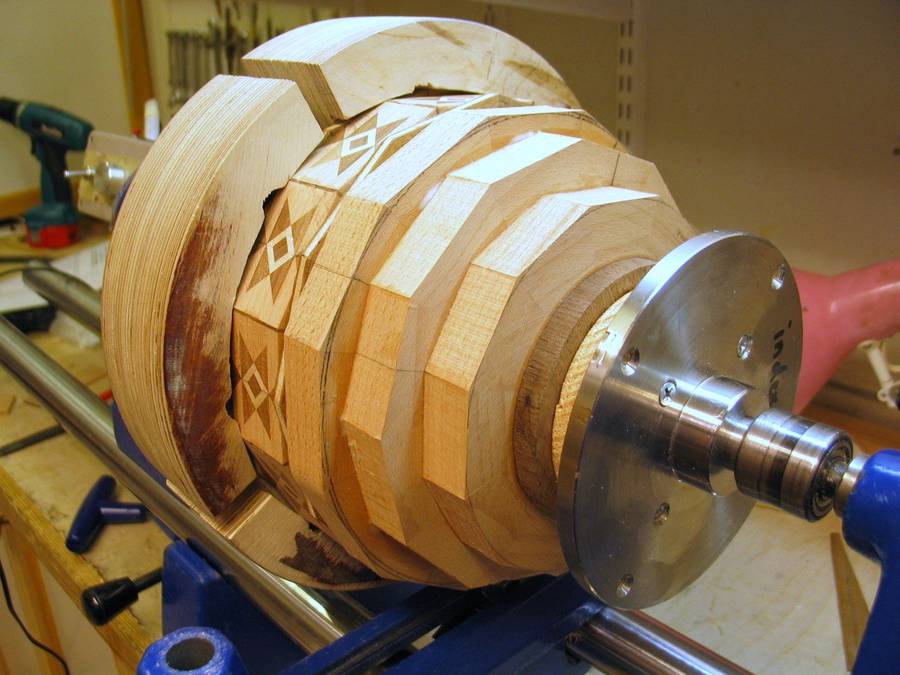

The "feature" ring has been added and top part is glued to another face plate.

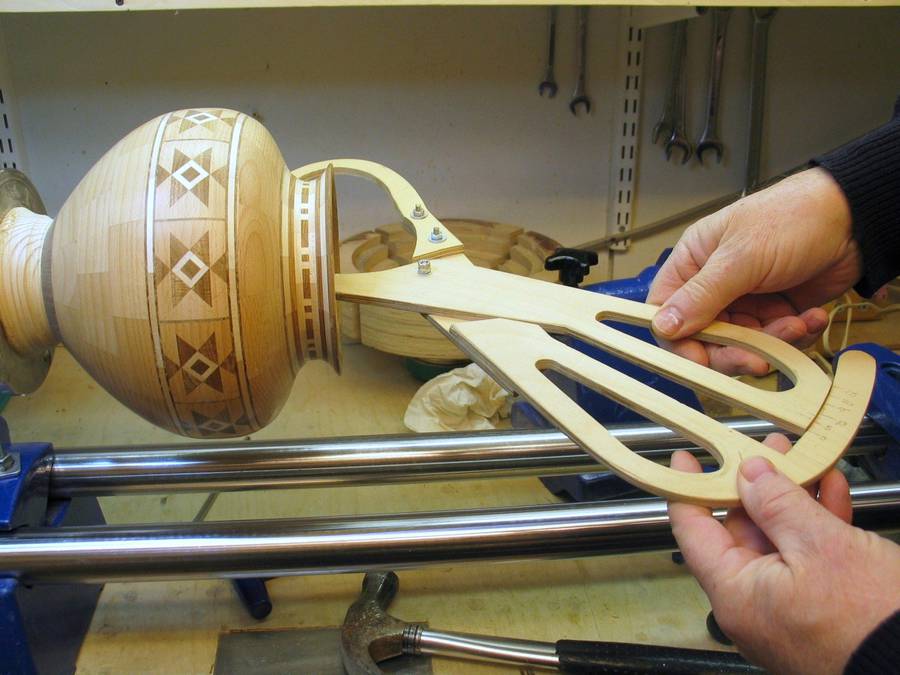

Inside and outside are turned to final shape. I measure the wall thickness with a homemade tool.

Then the bowl is sanded with several grits and finished with several applications of Danish Oil.

After the oil is dry (next morning) the bowl is buffed with paper towel while the lathe is running.

Lastly the bowl is cut from the face plate with a parting tool, then the bottom is finished.

This is only a short description of segmented turning, there are excellent books and videos and if you are interested search the Web for "Segmented Woodturning".

Pekka Svinhufvud
