Ryszard's dust collector build part 3: More bits

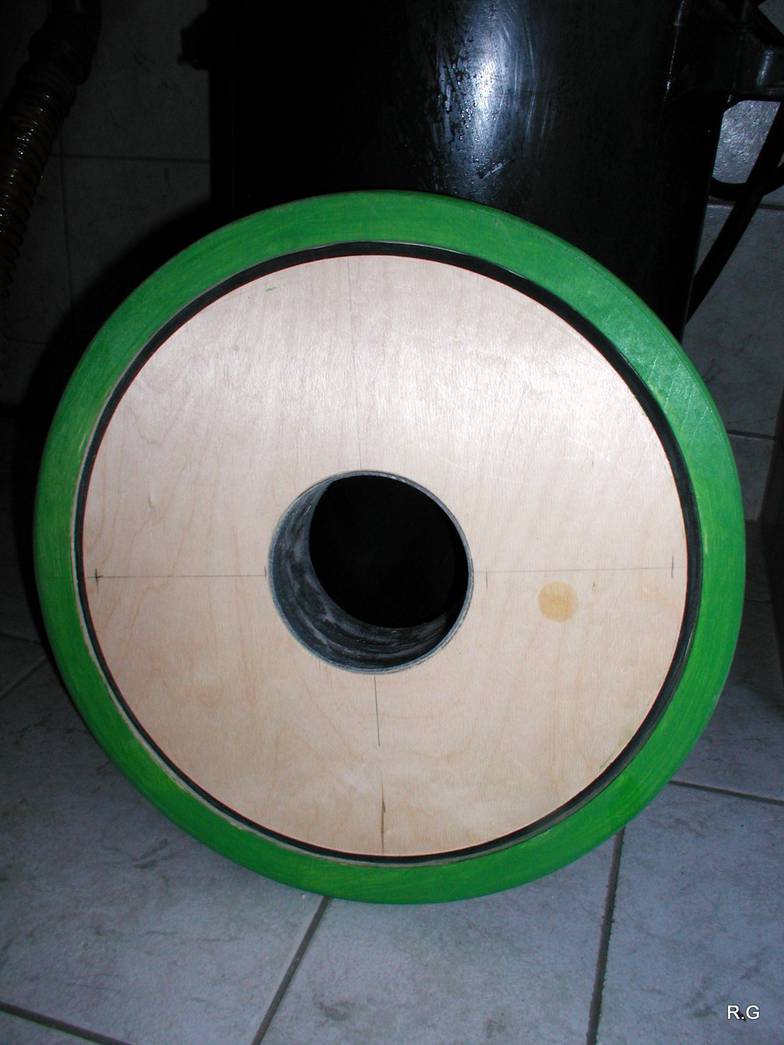

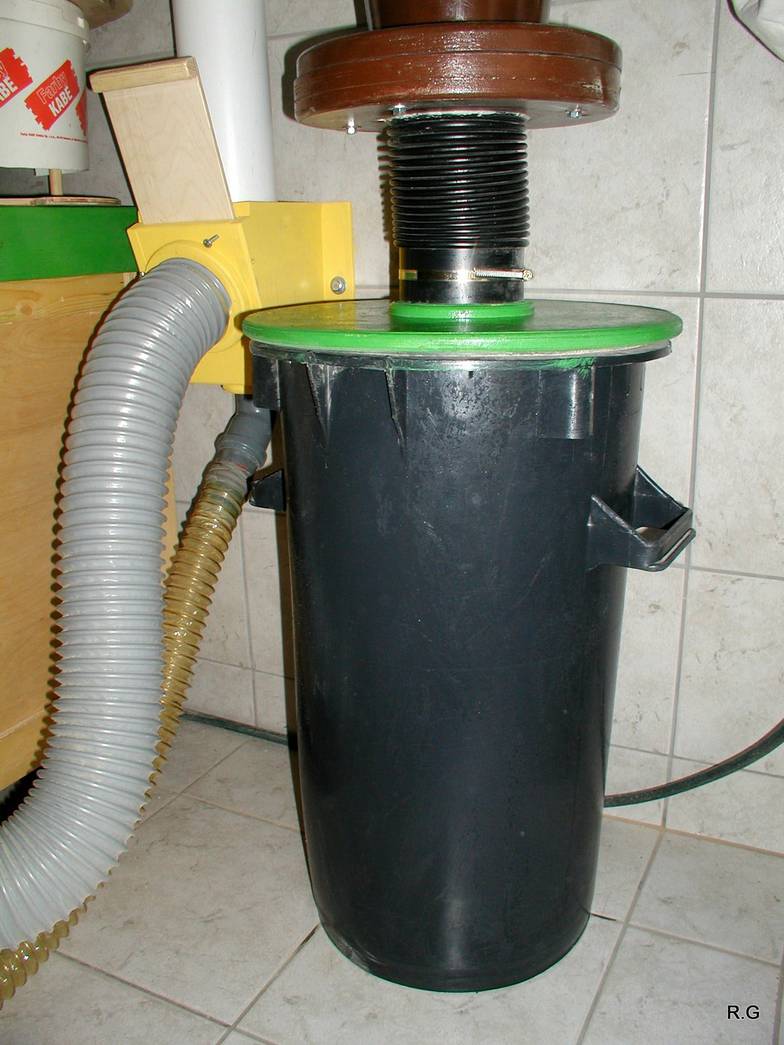

Collection bucket

80 liter plastic bucket, covered with plywood.

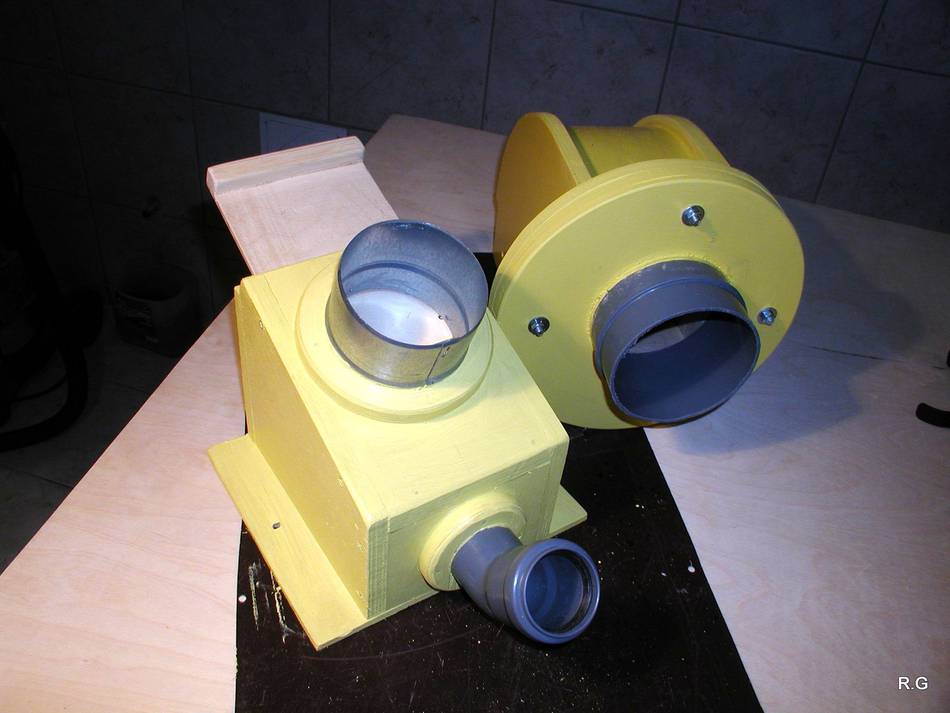

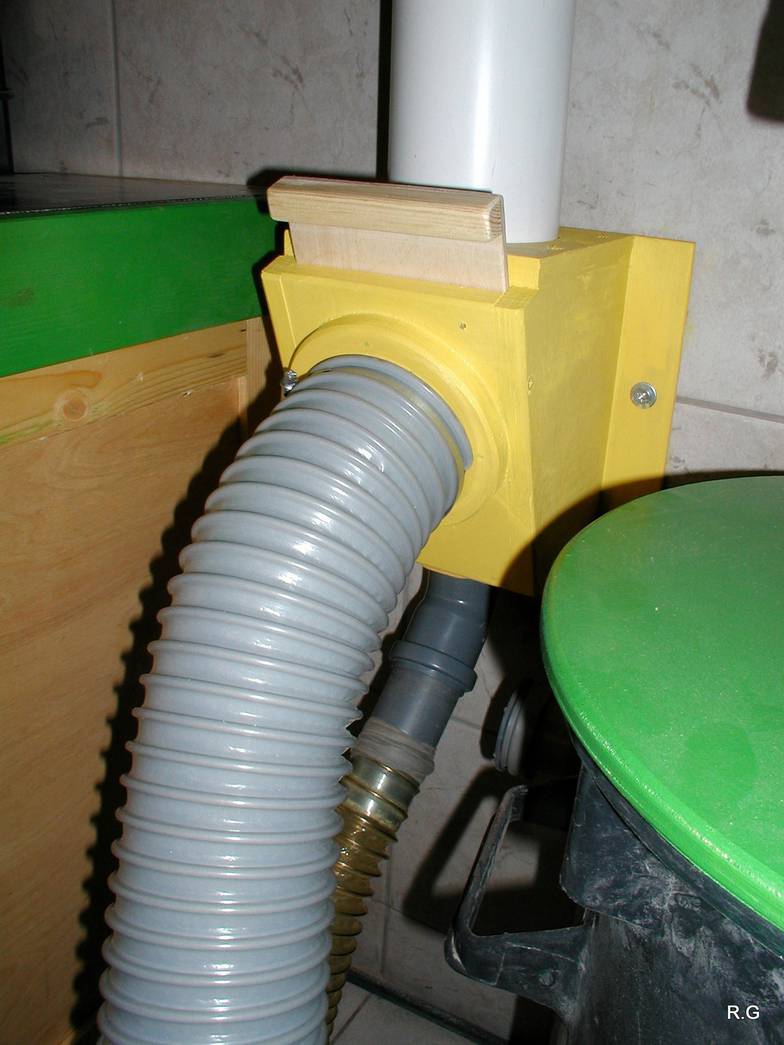

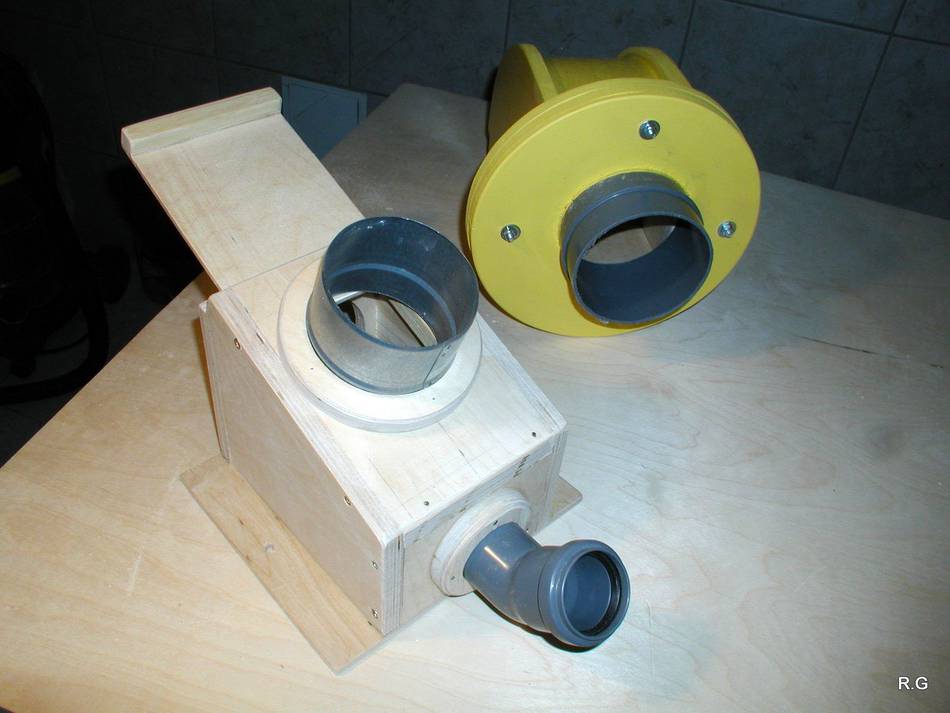

Dust hose manifold and blast gates

Hookups for 100 mm and 50 mm diameter hose, with blast gates.

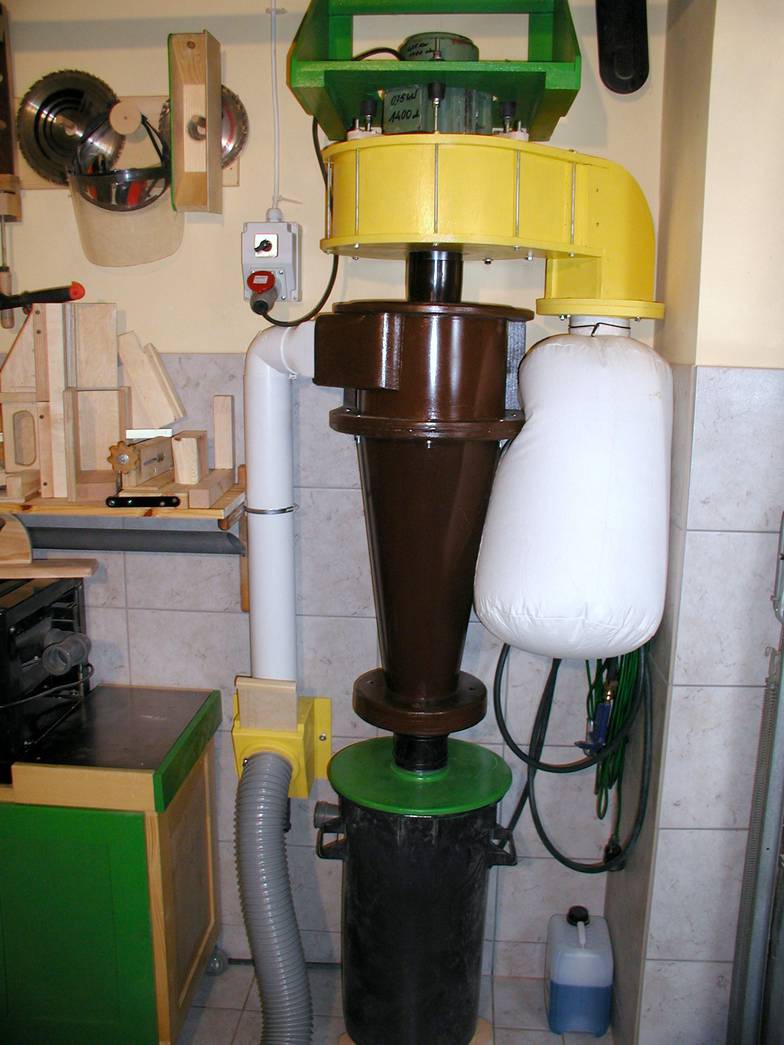

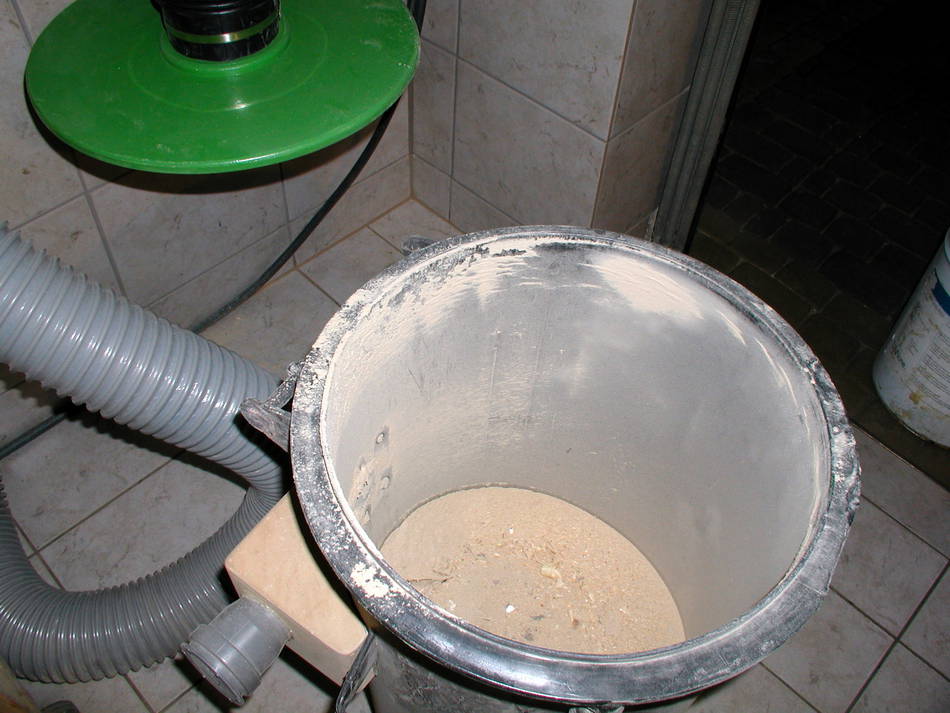

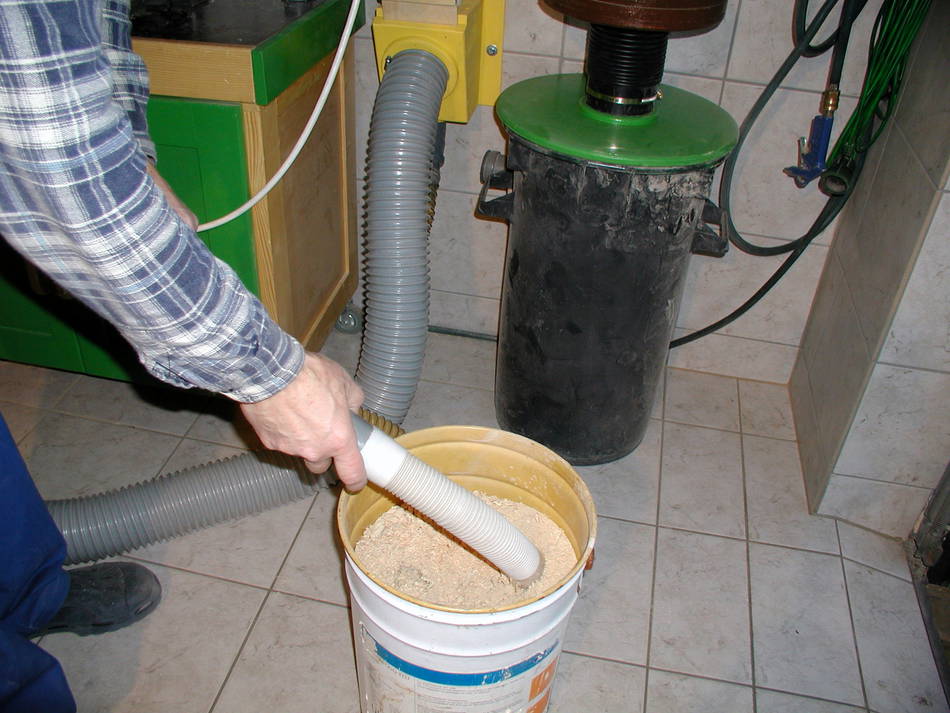

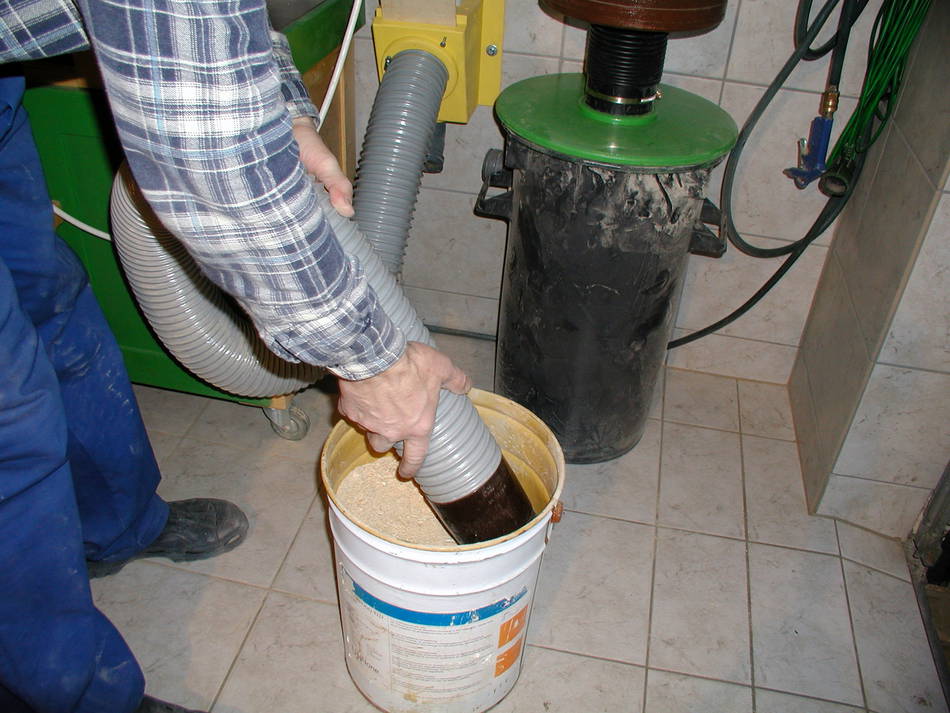

Testing it

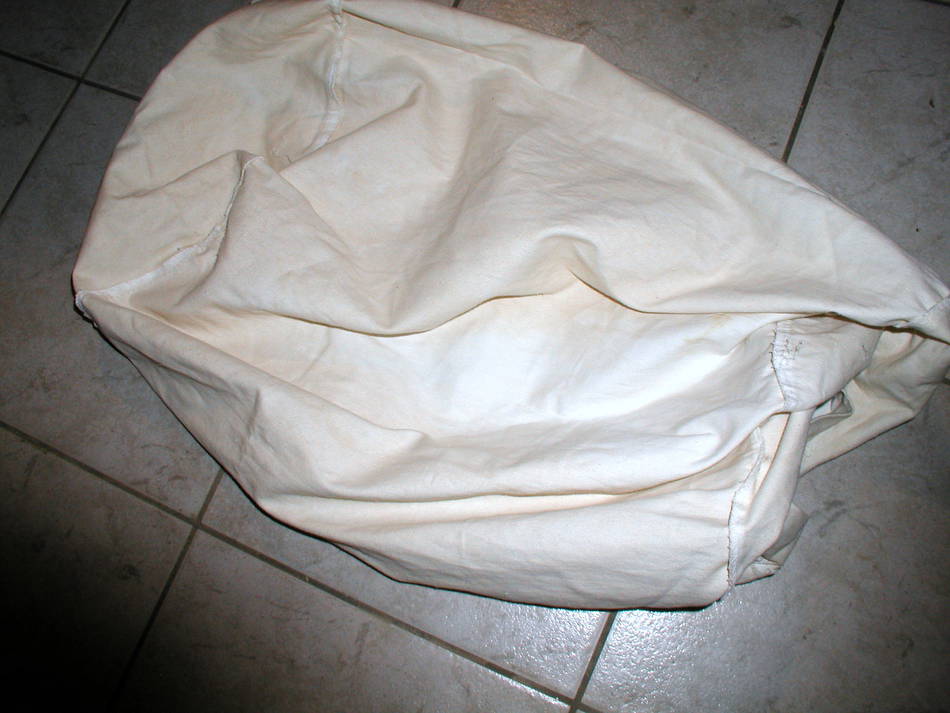

The bag turned inside out, still clean.

The bag is temporary. The plan is to replace it with a pleated filter.
