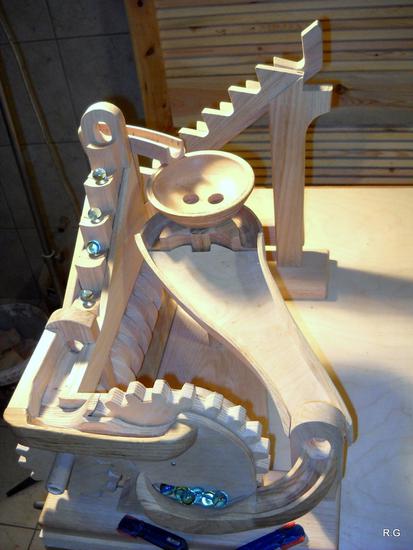

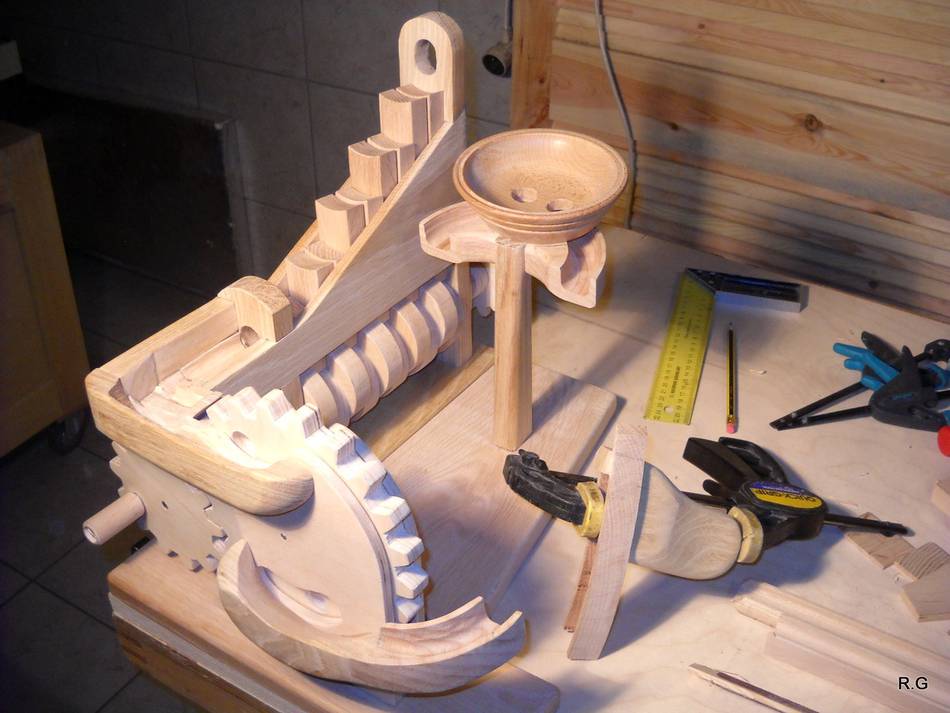

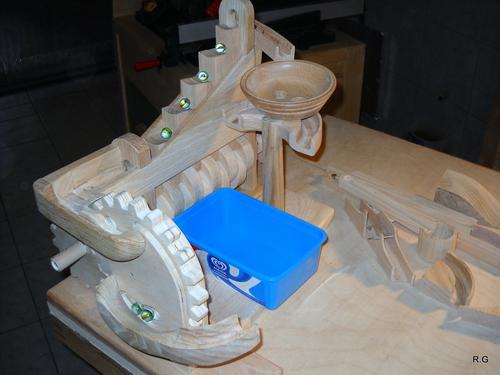

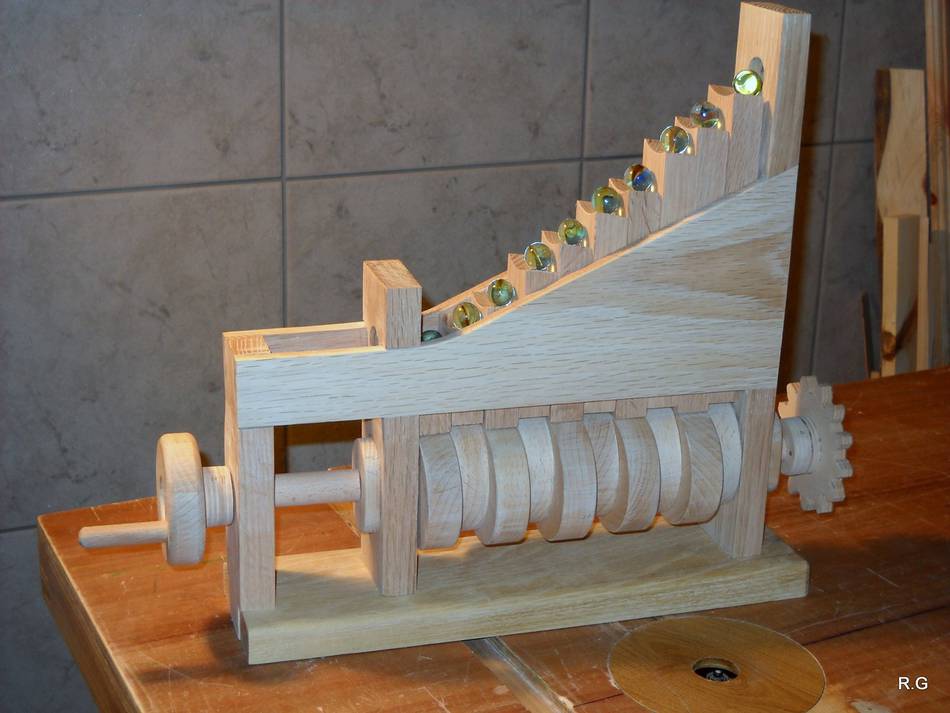

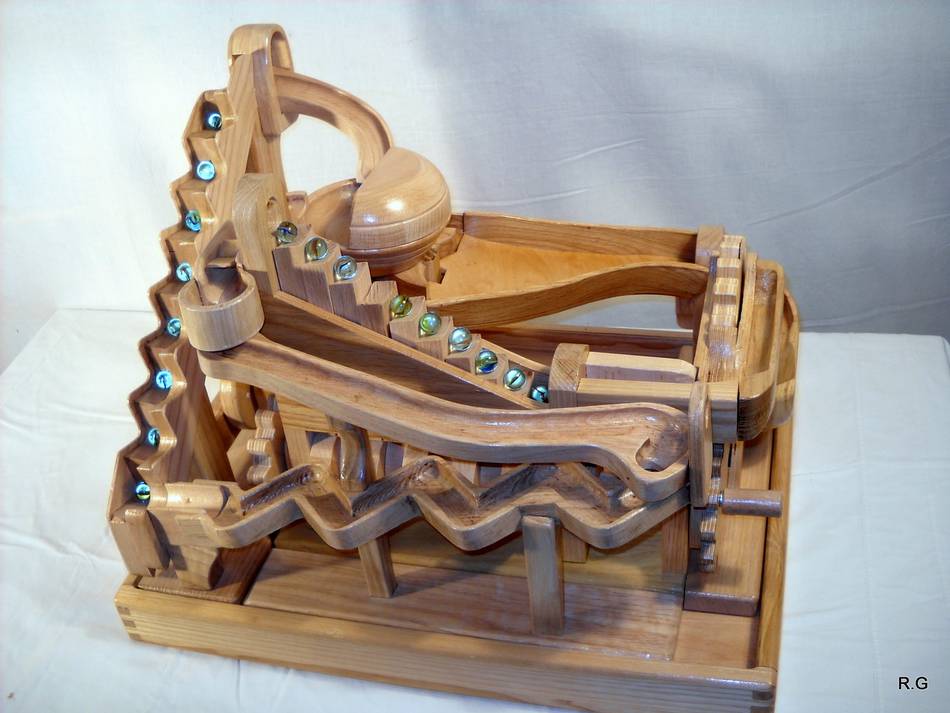

Ryszard's "marble machine 3" in pictures

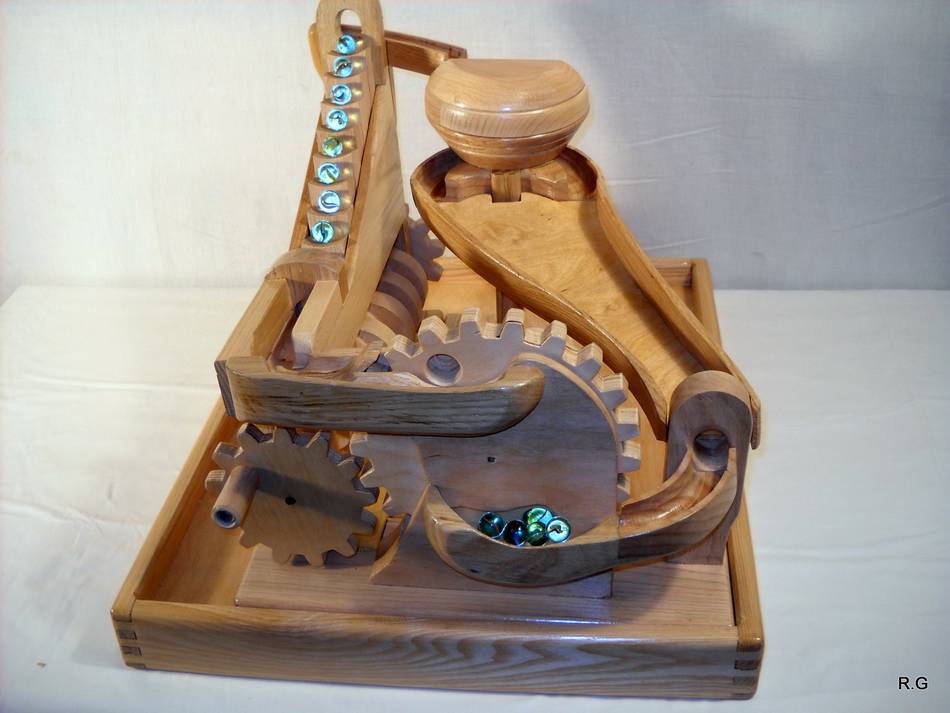

I call this machine Sisyphus.

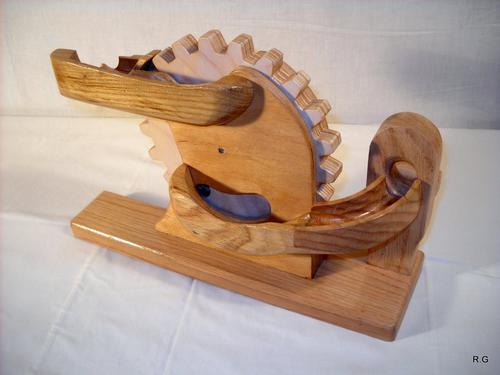

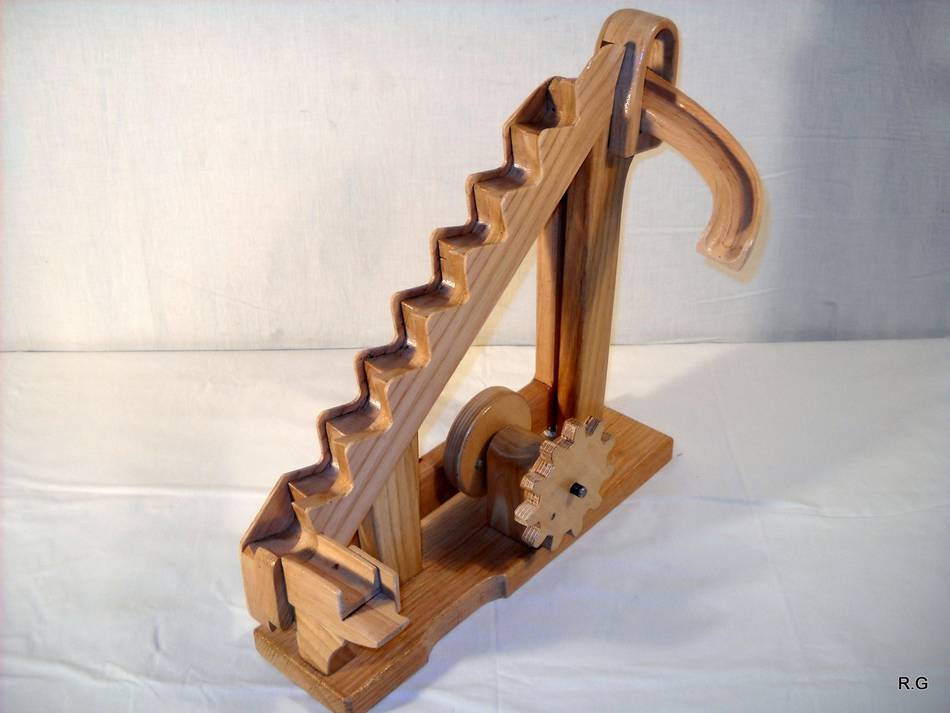

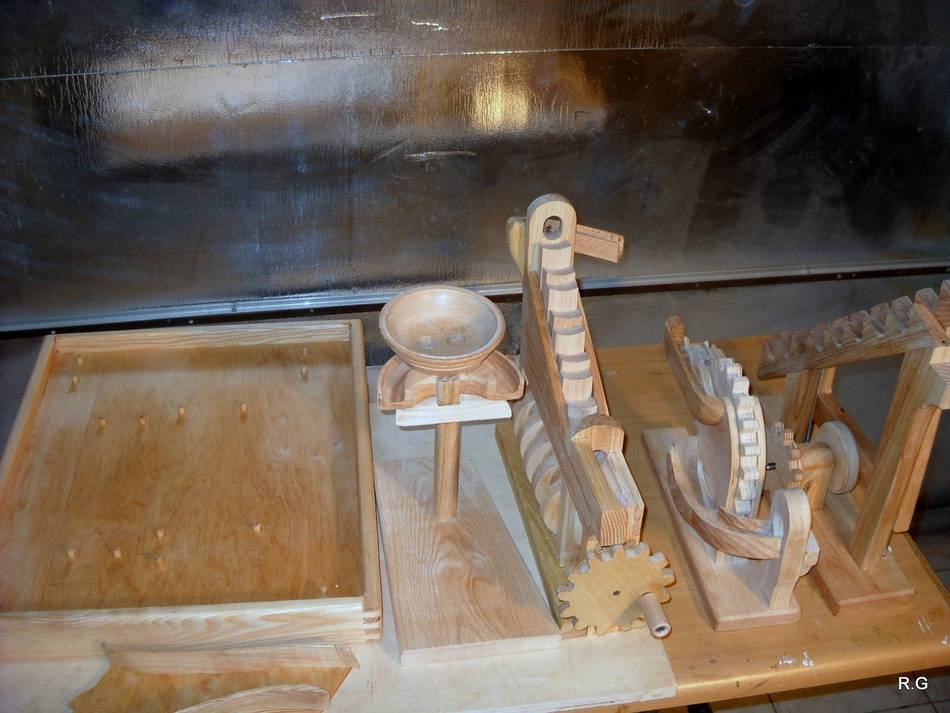

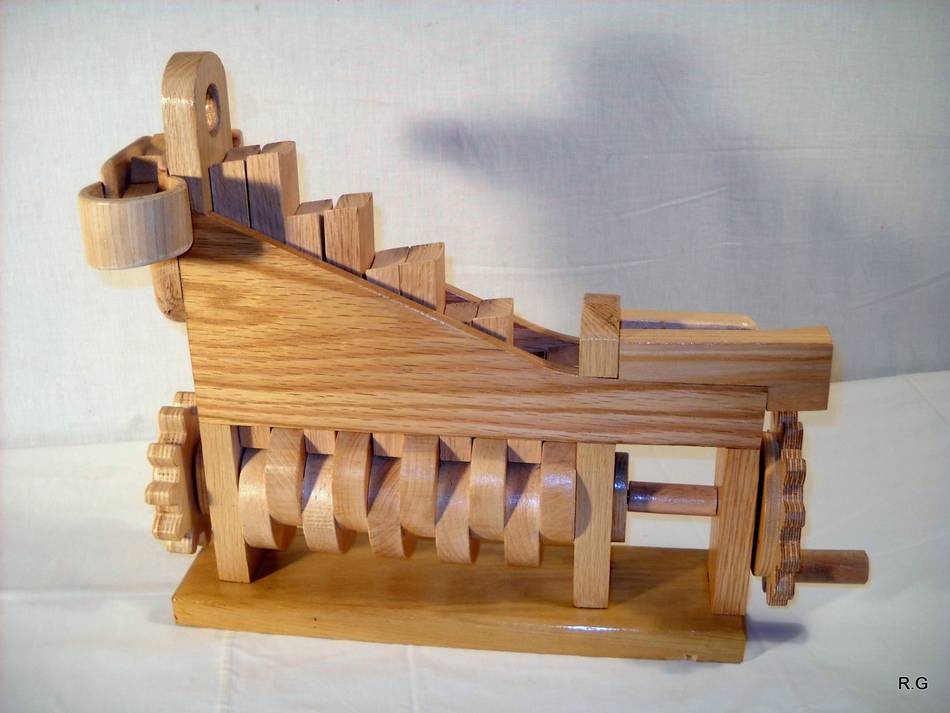

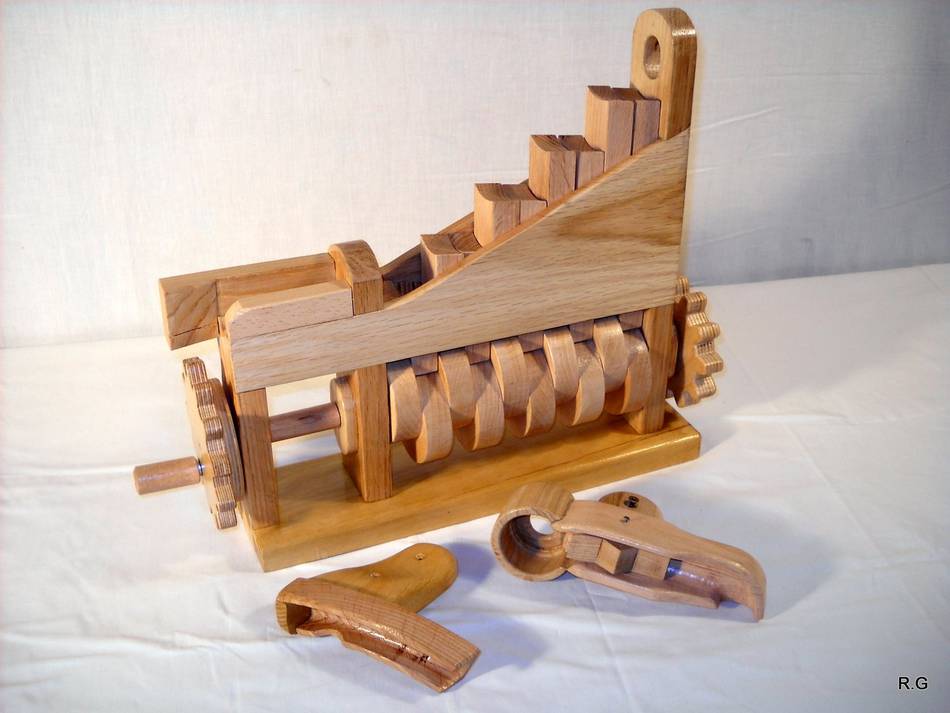

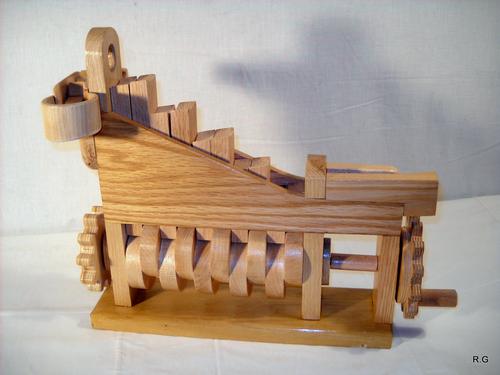

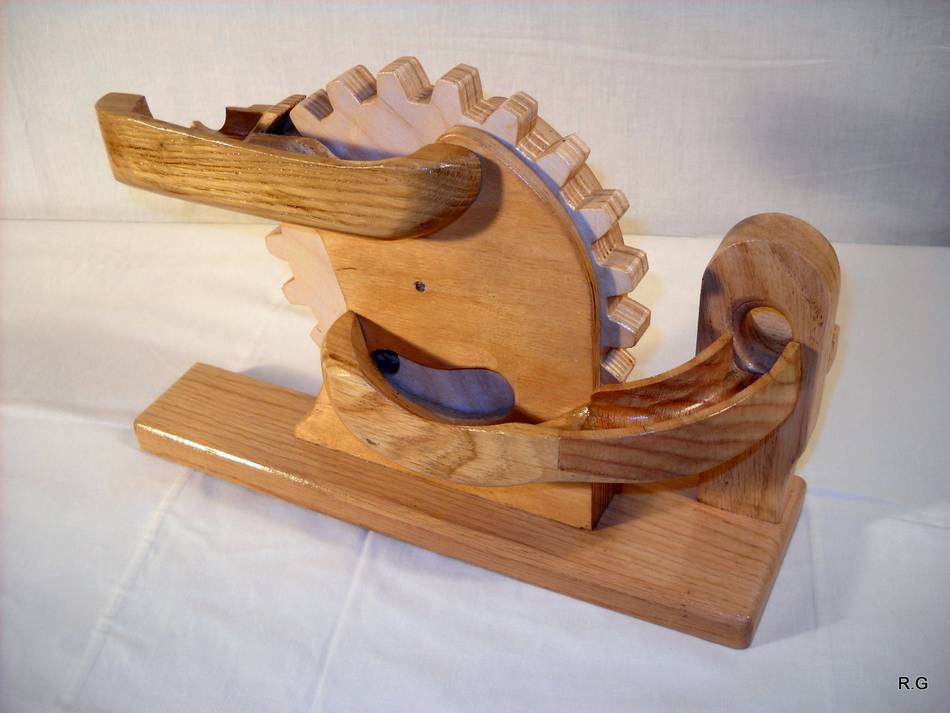

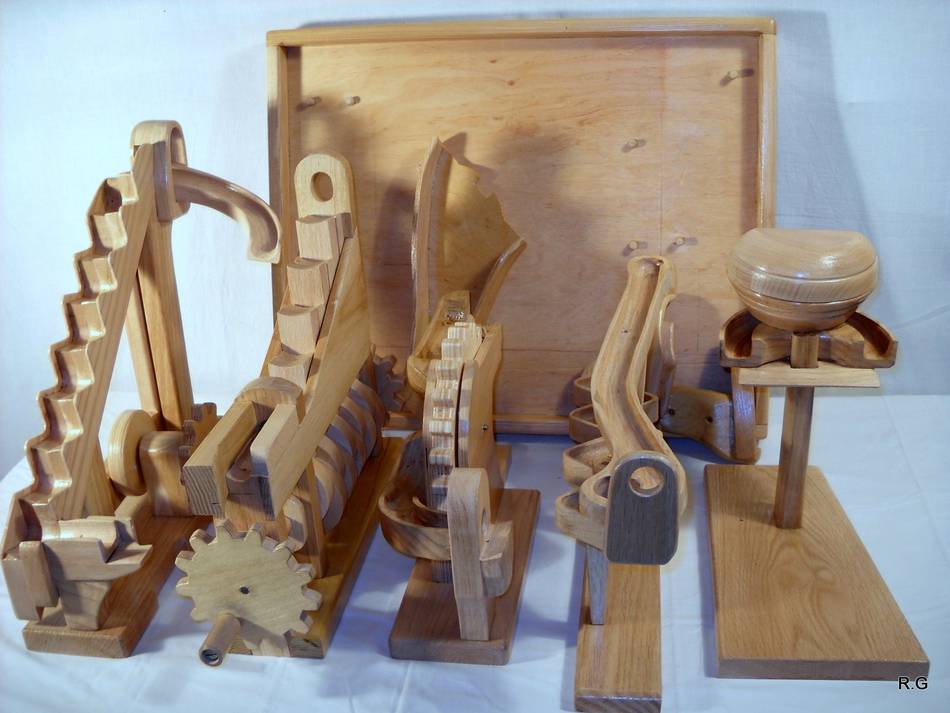

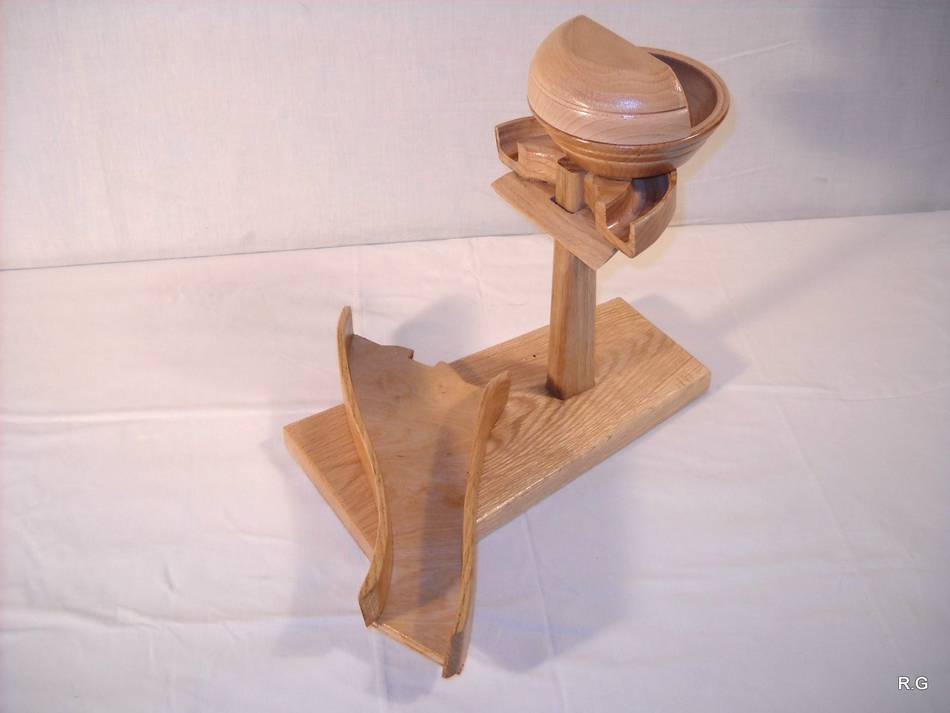

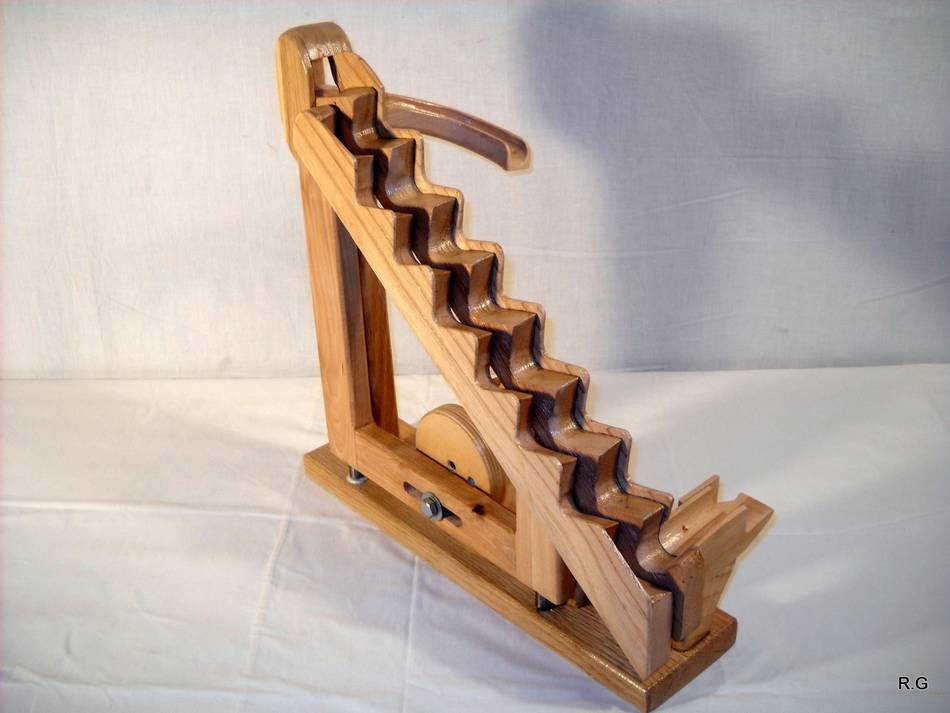

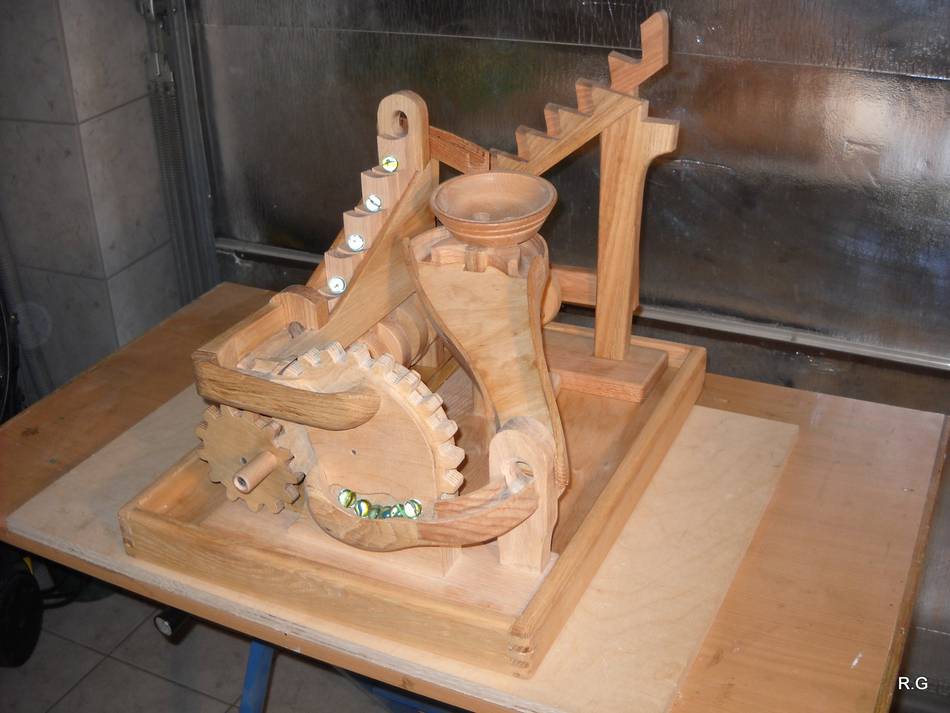

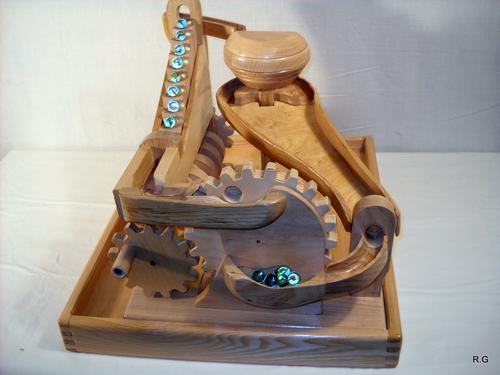

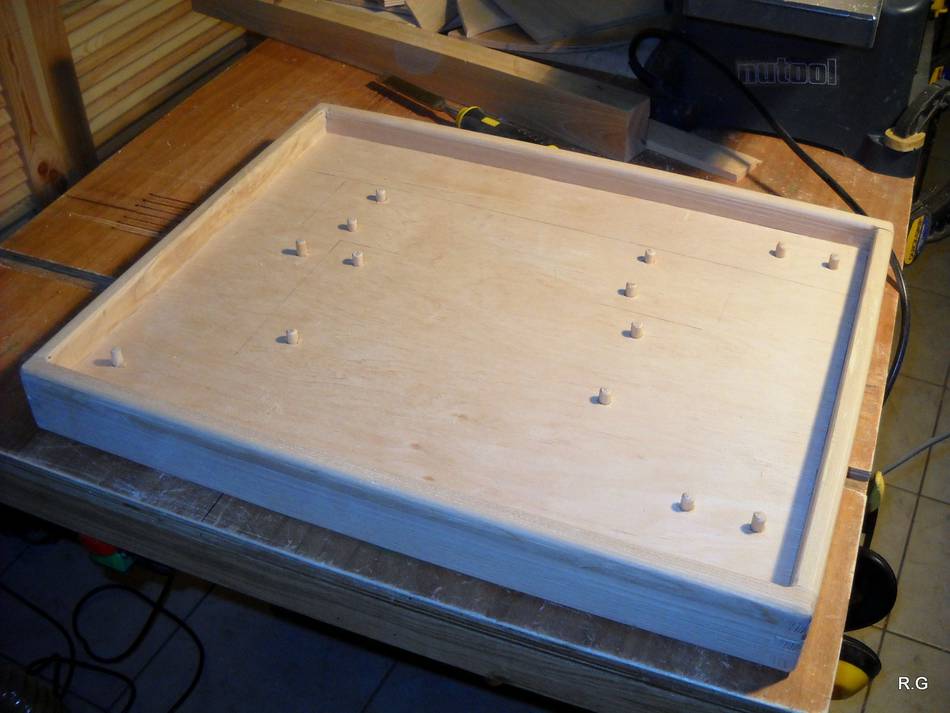

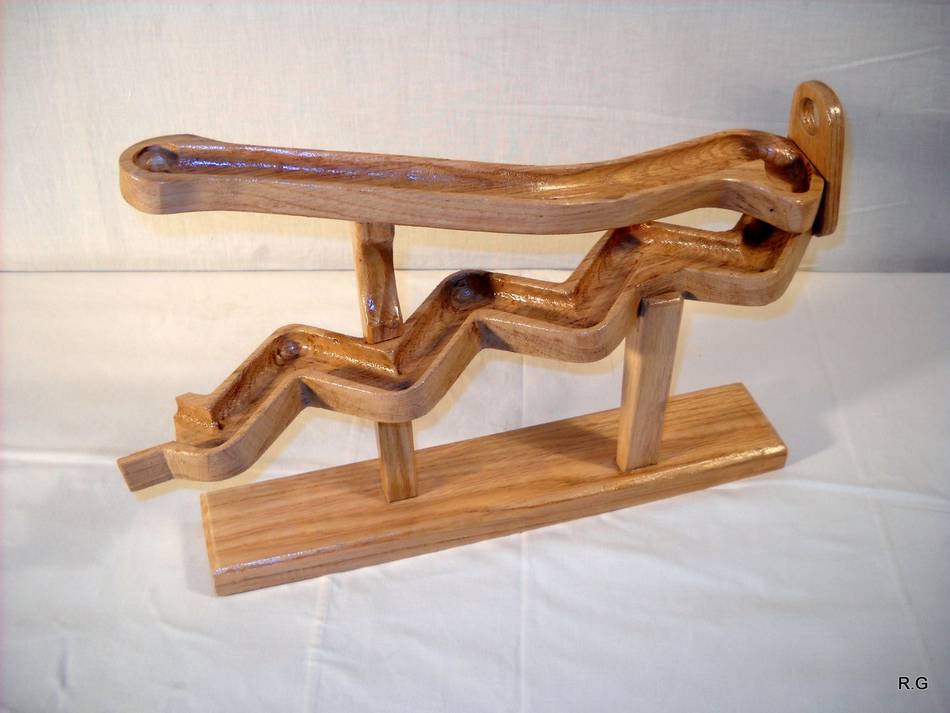

The machine consists of modules and a base. The "Max" configuration has 7 modules on the base, The mini version has 5 modules on the base.

The machine is 520 x 420 x 400 mm.
I built it out of oak, ash and beech.

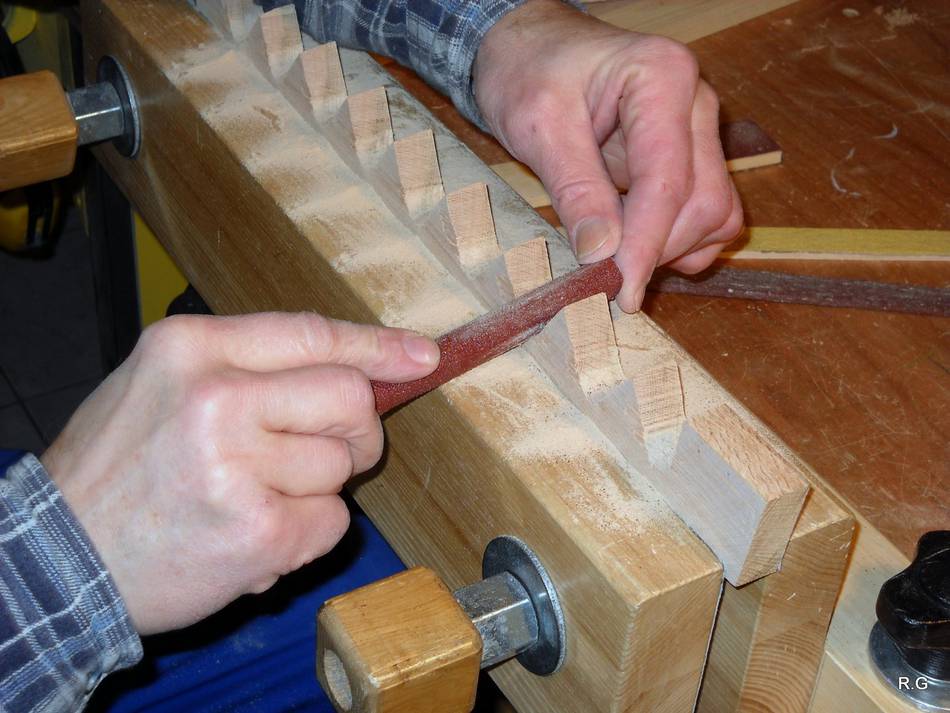

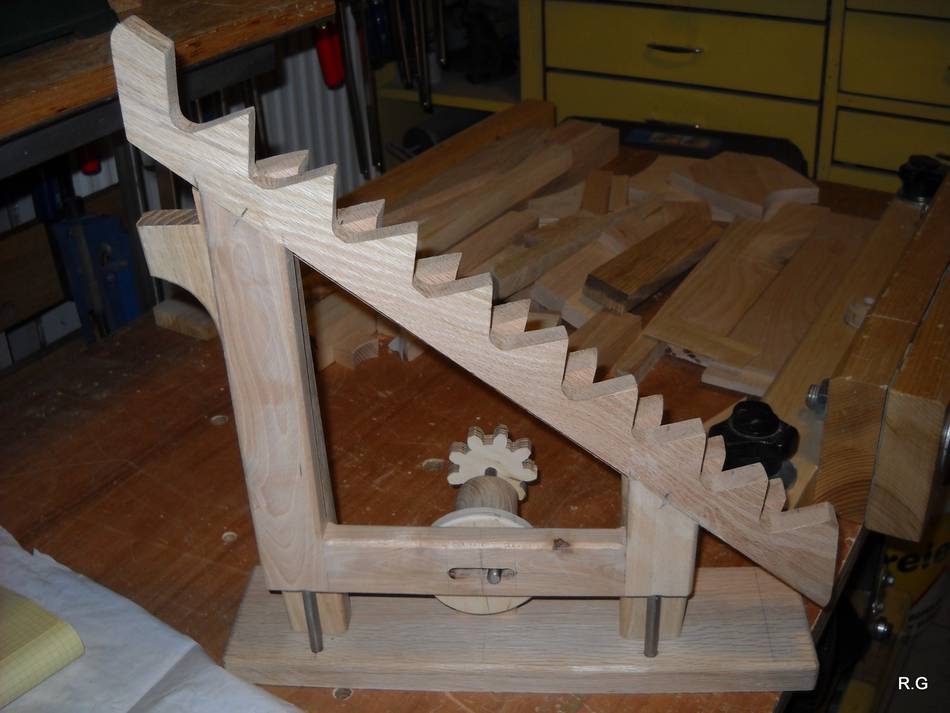

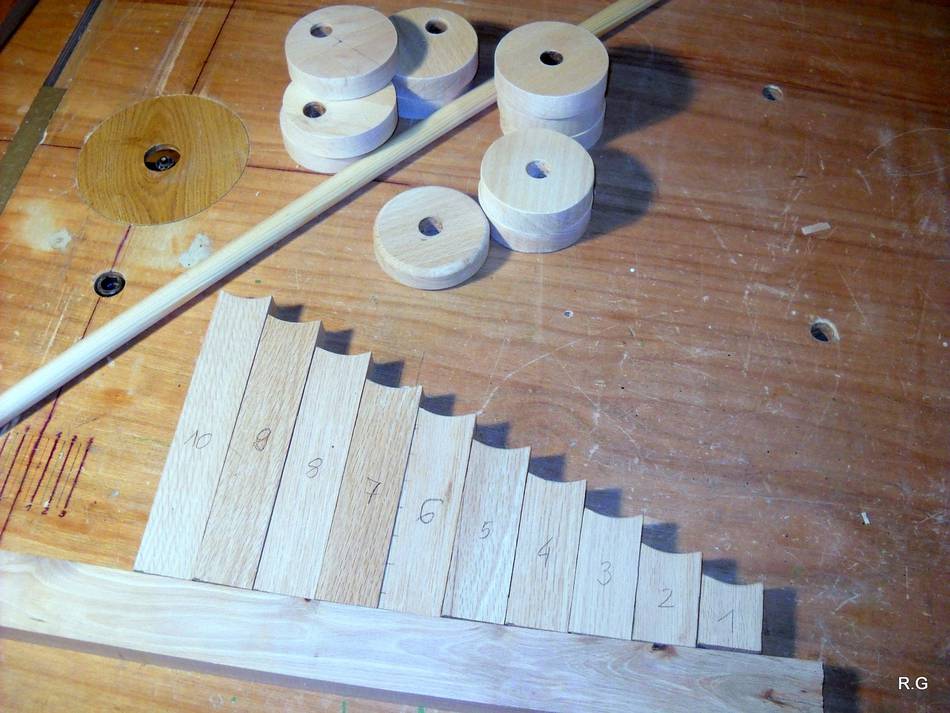

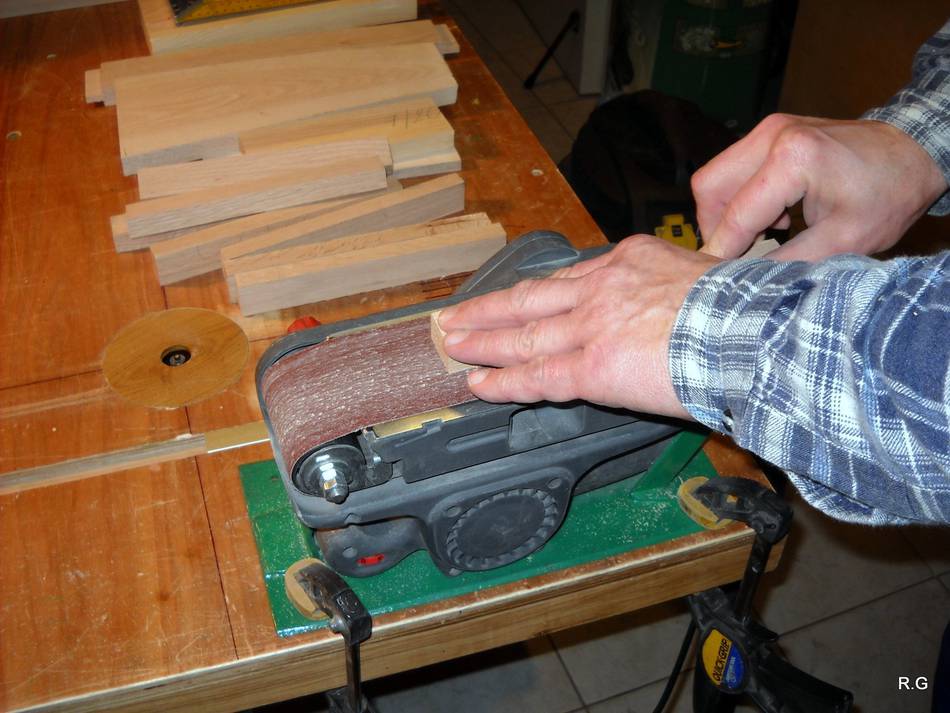

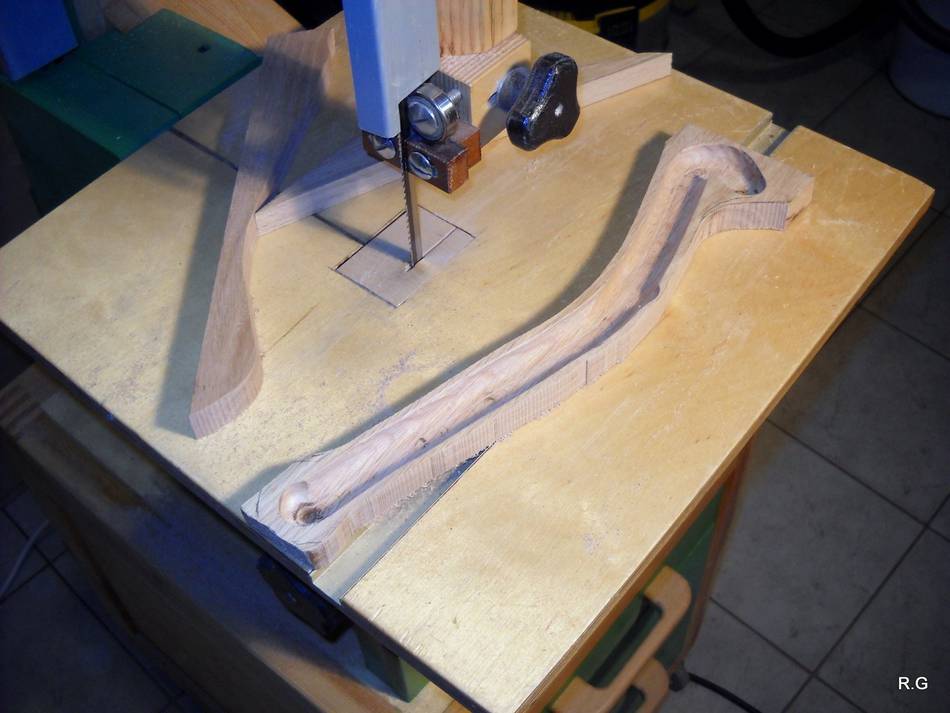

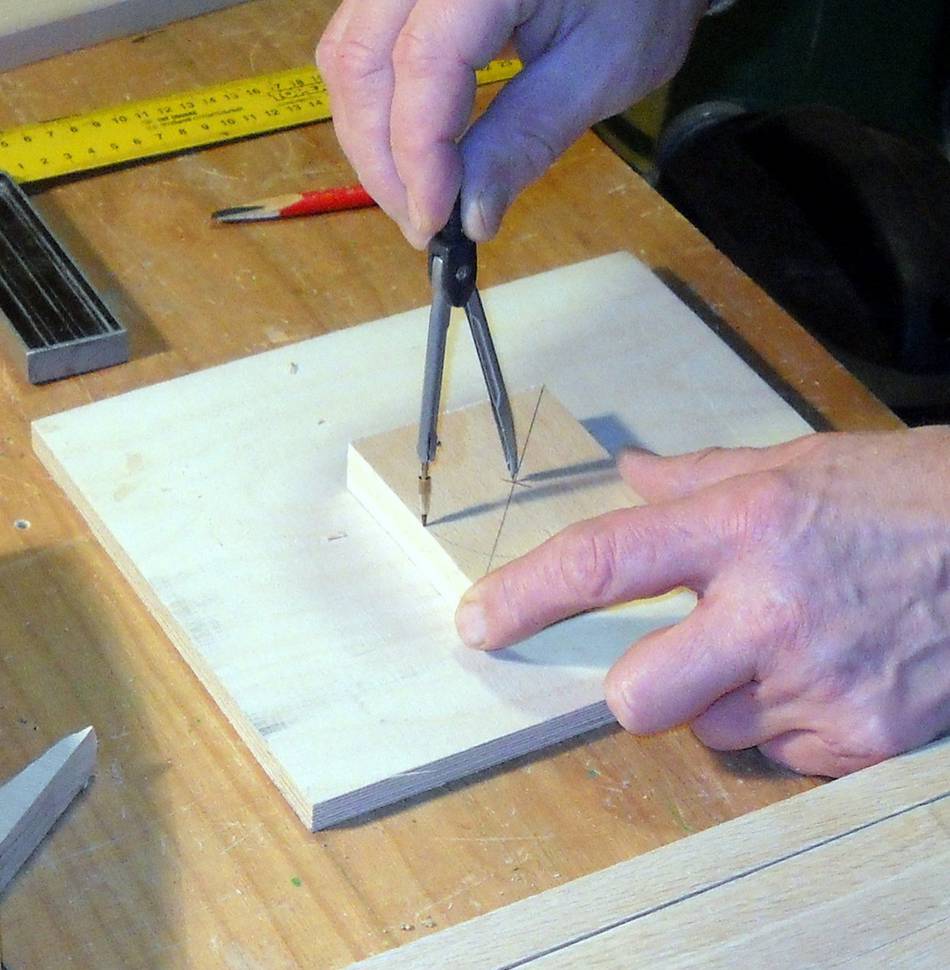

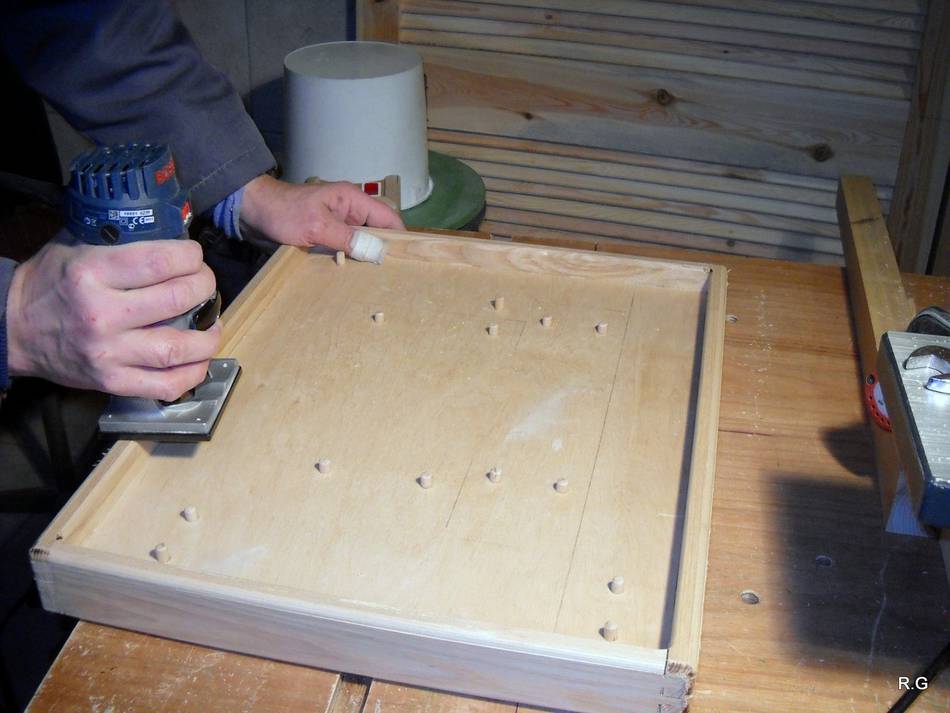

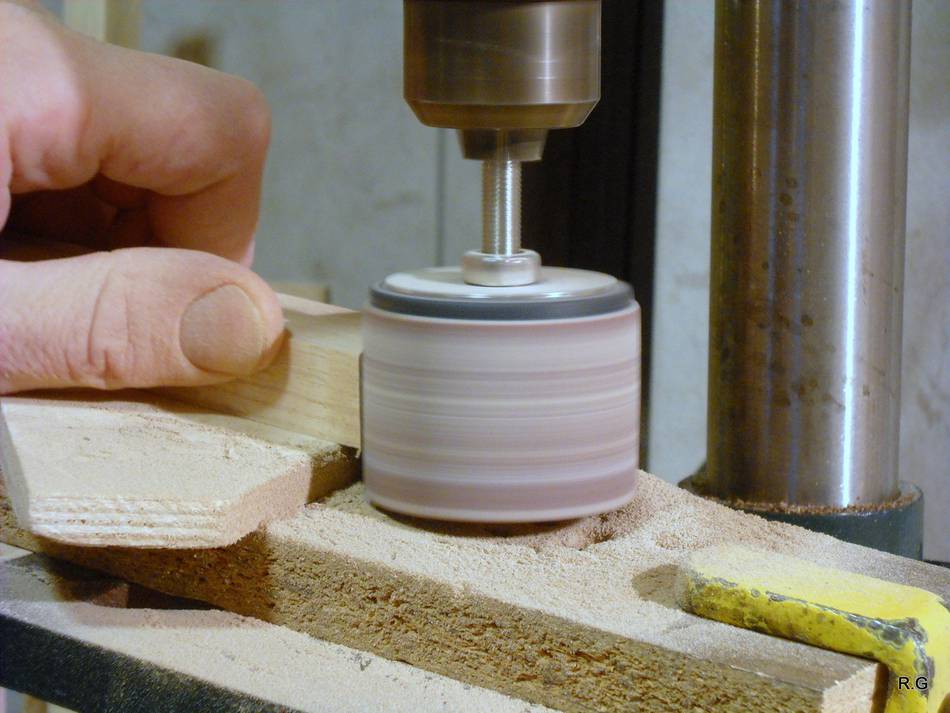

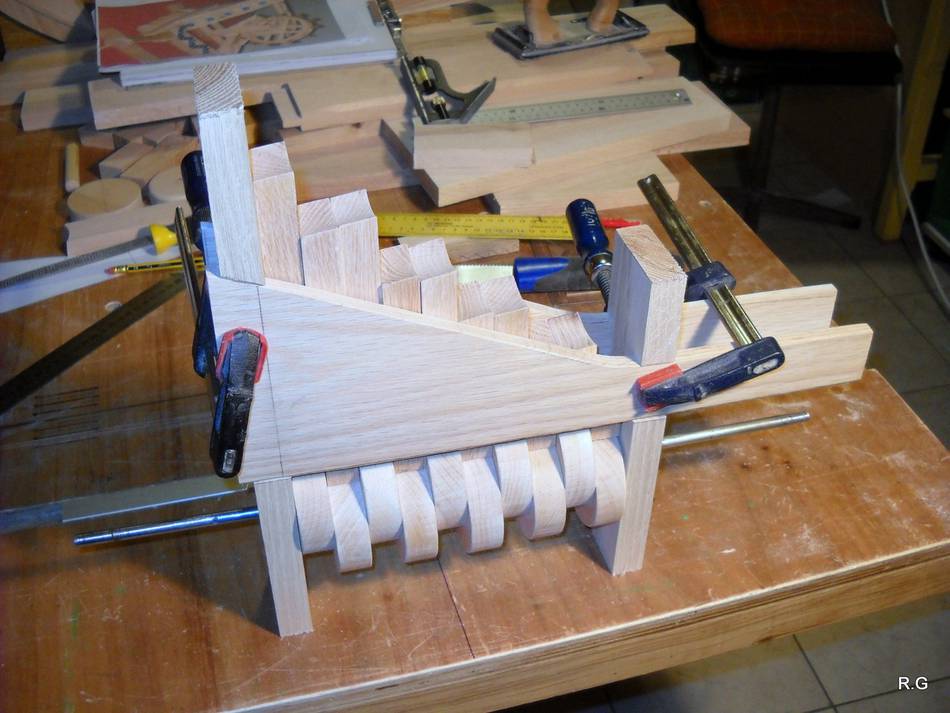

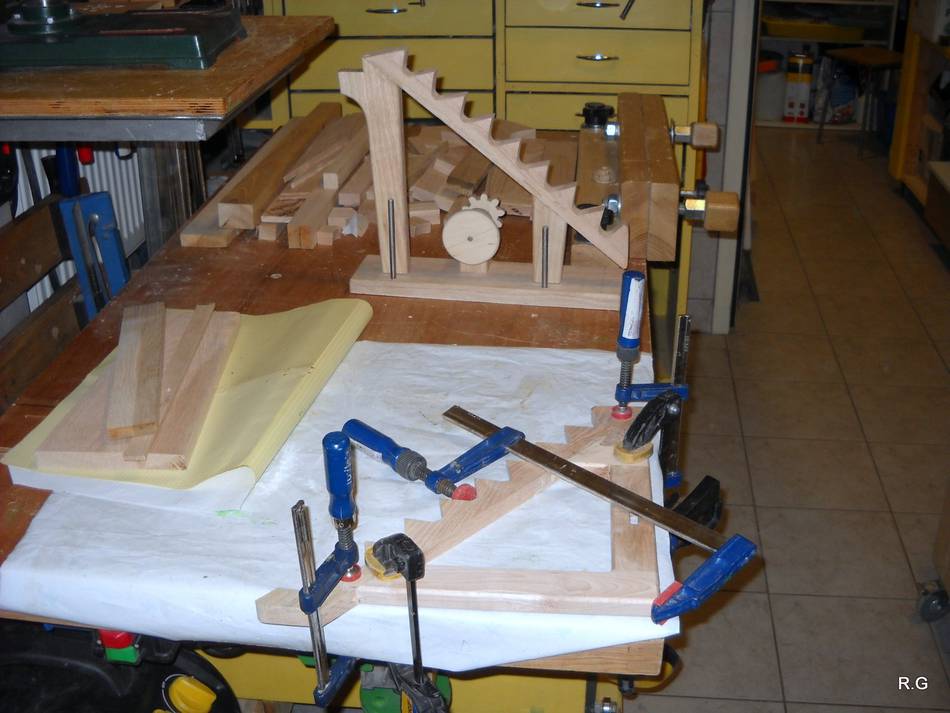

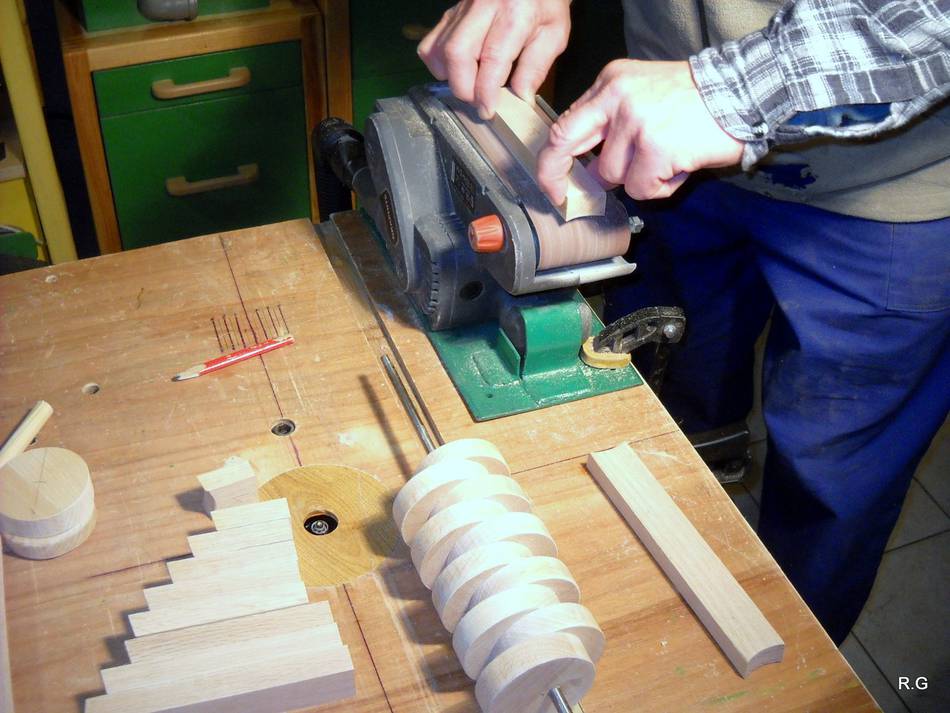

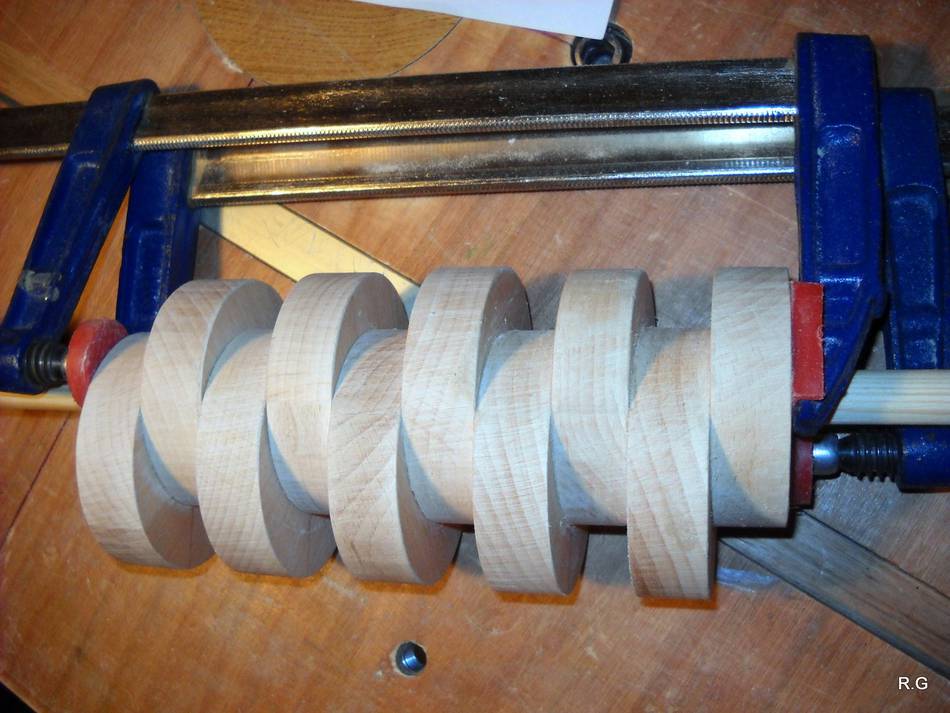

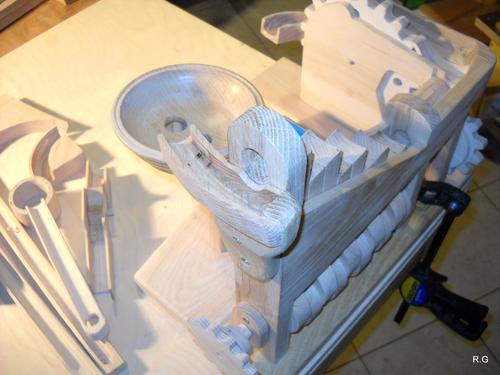

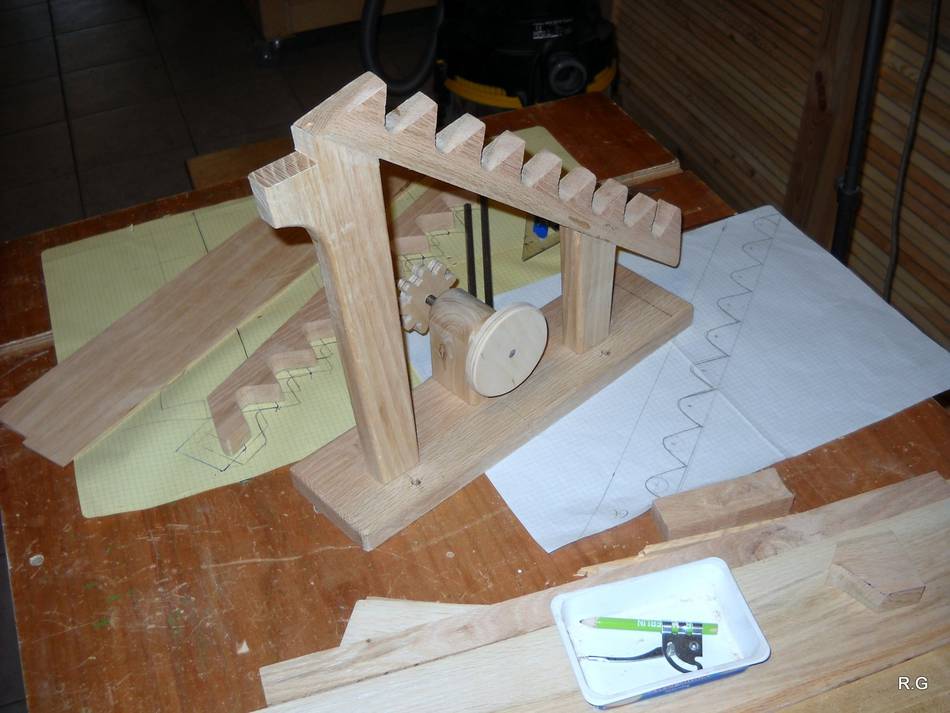

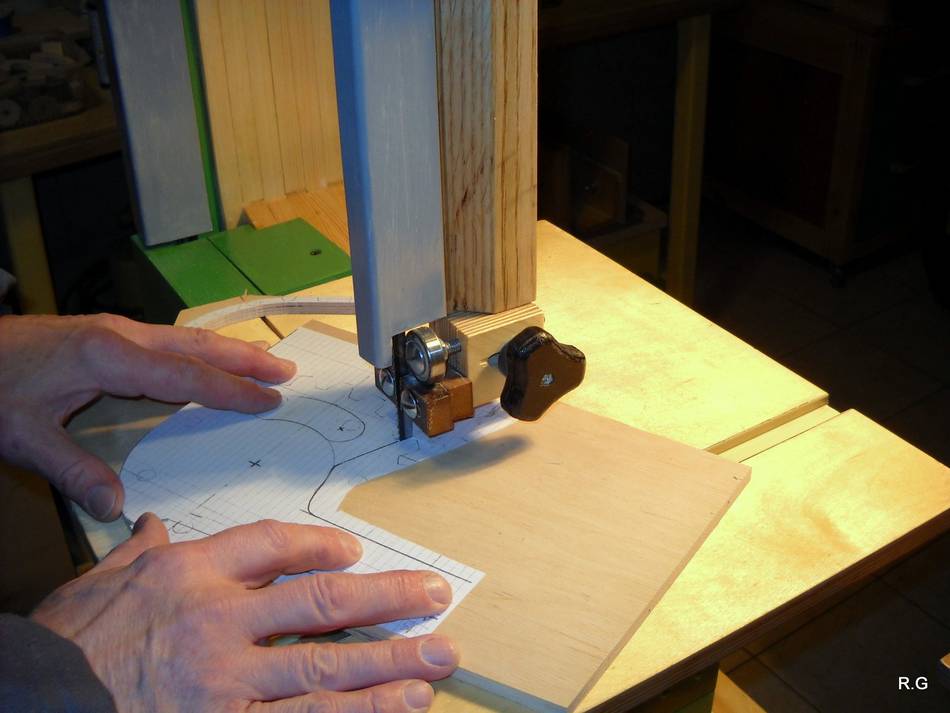

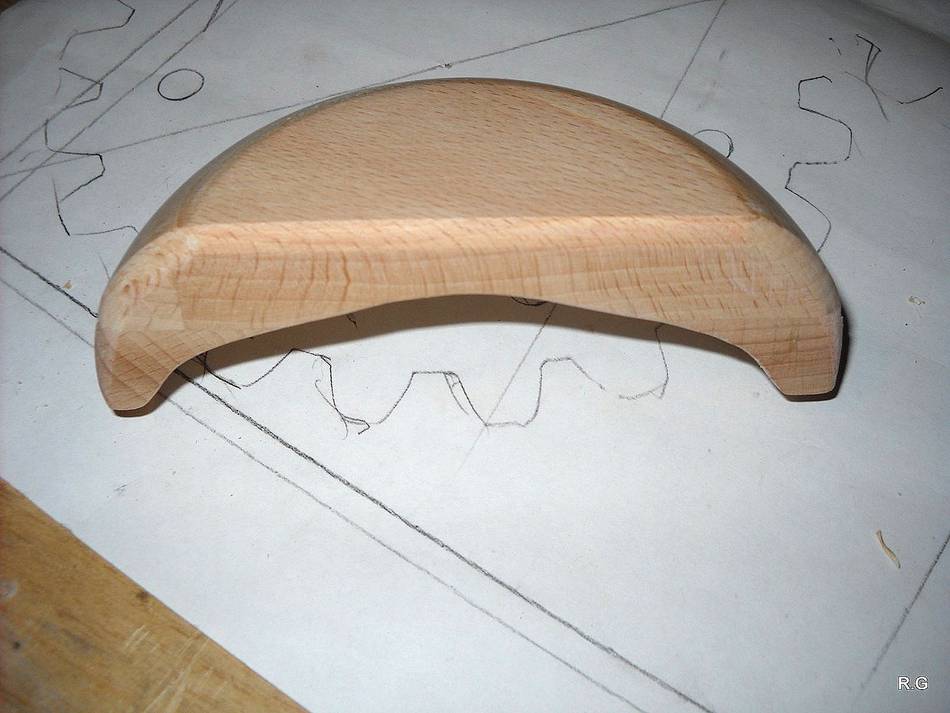

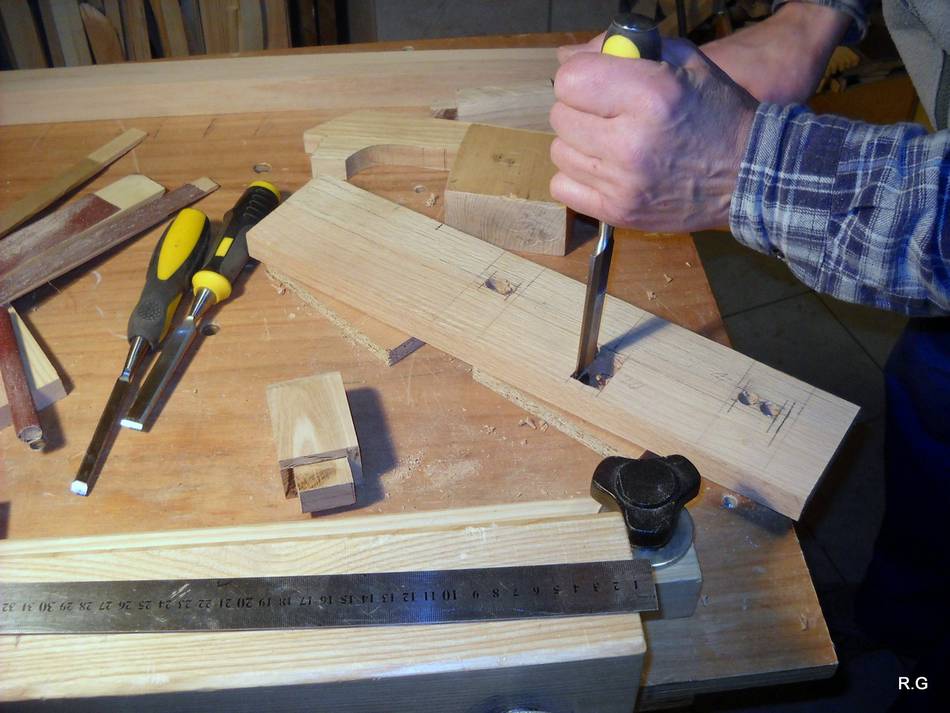

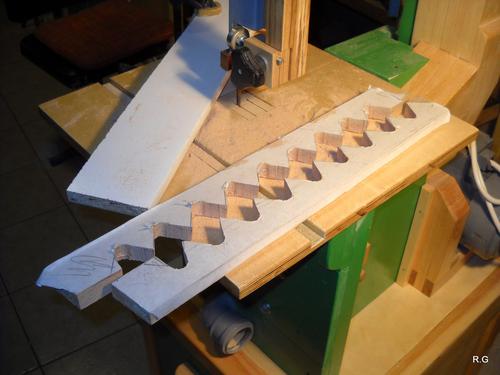

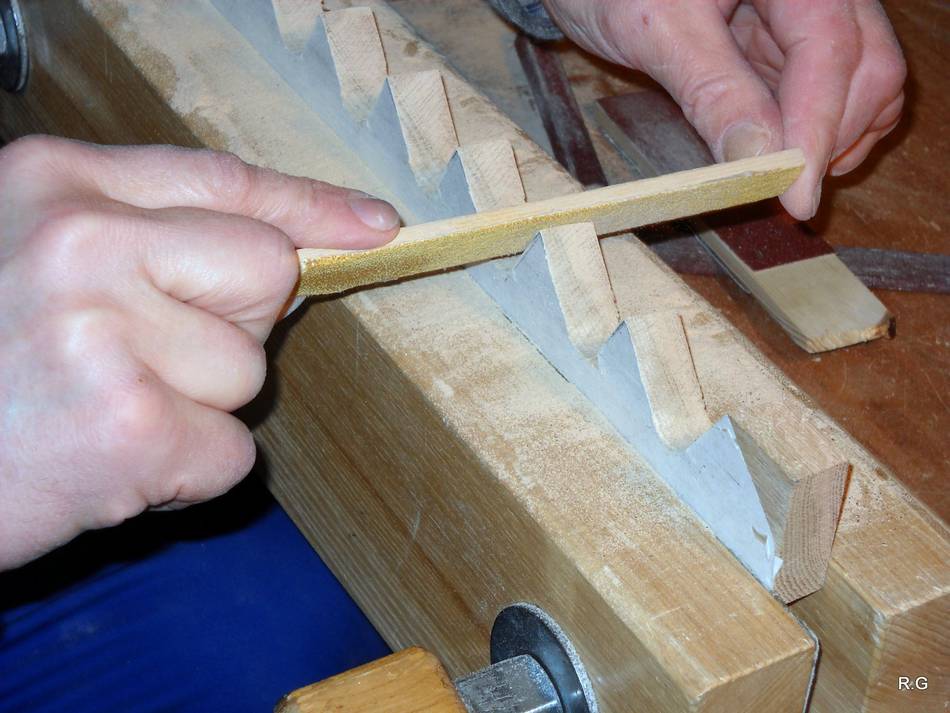

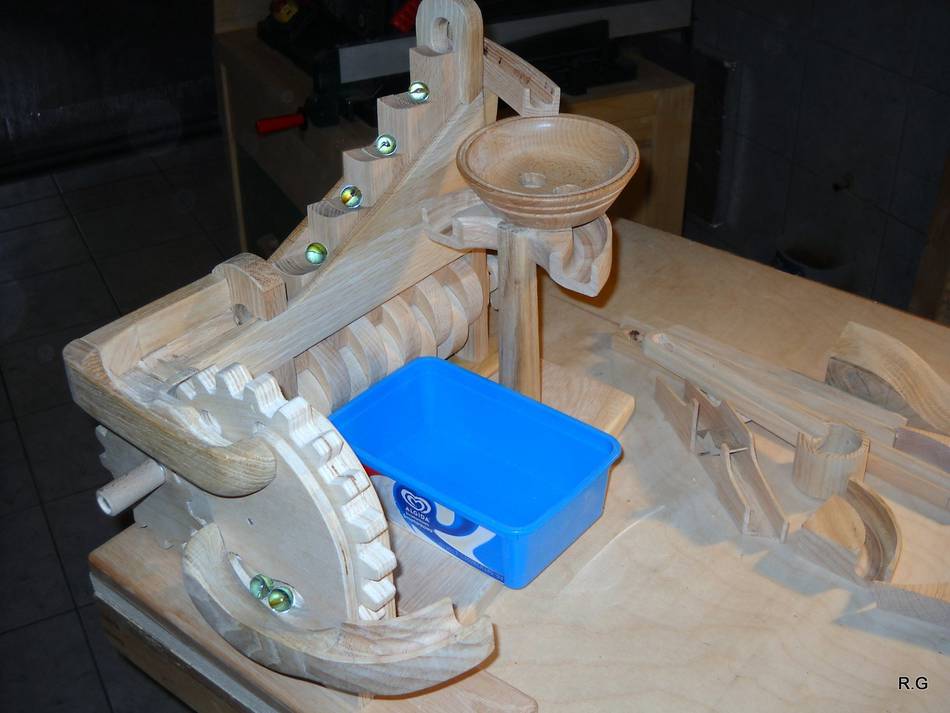

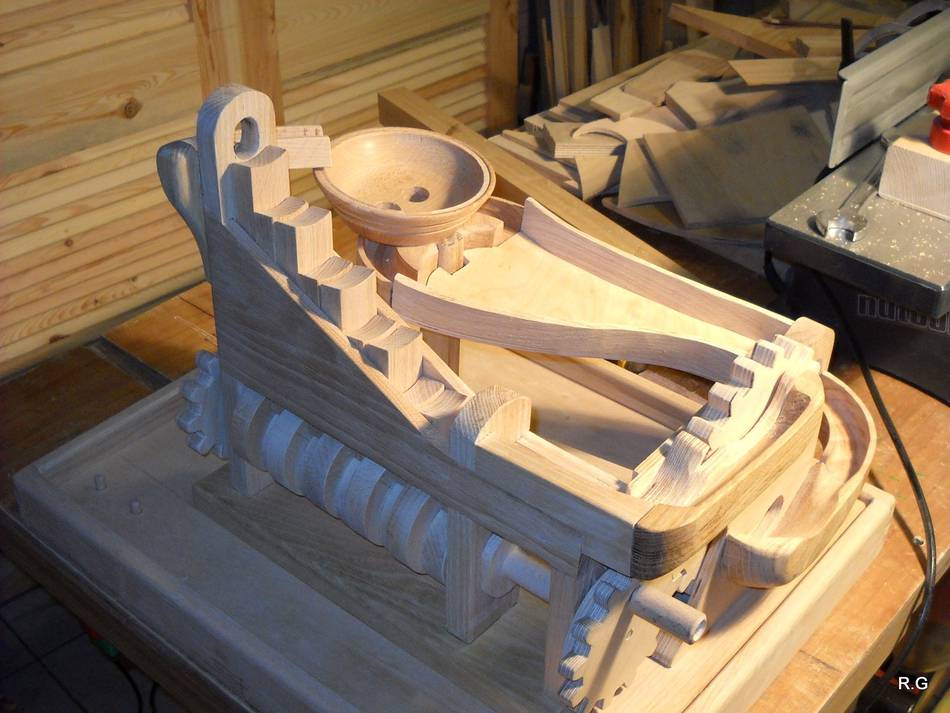

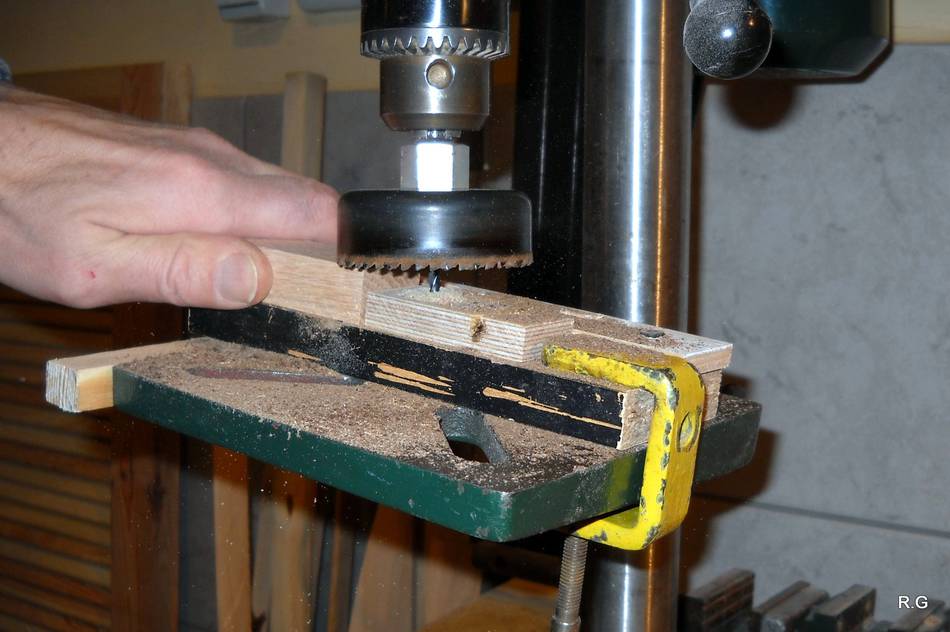

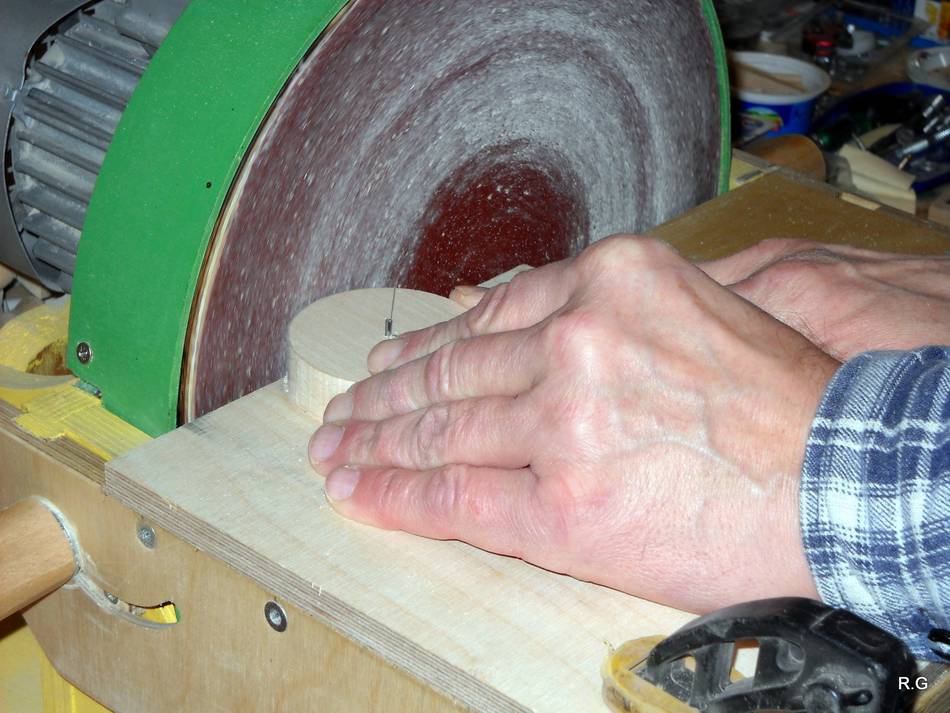

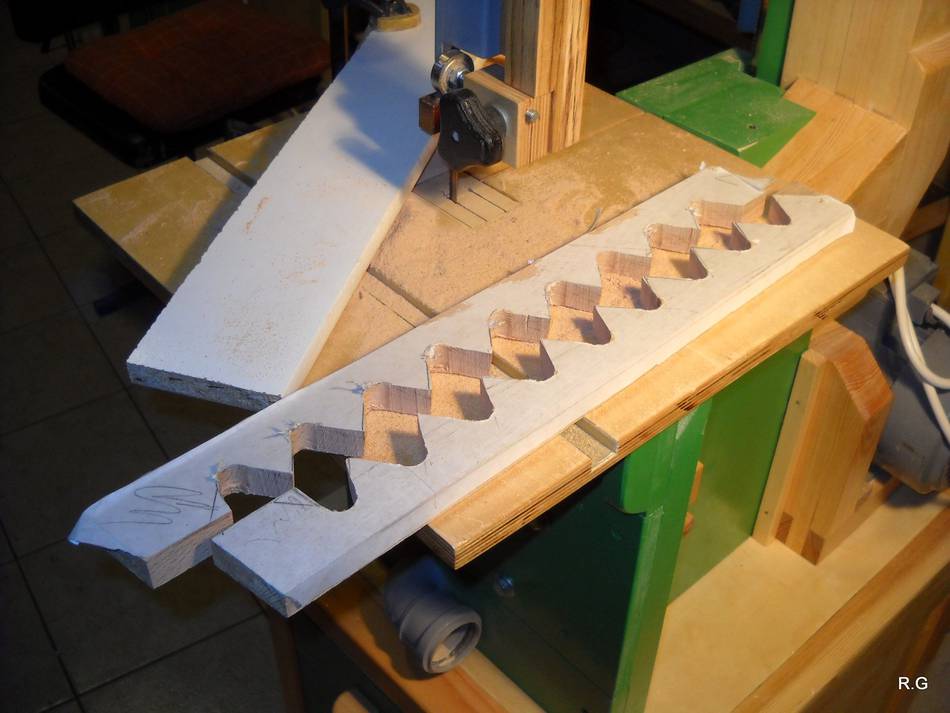

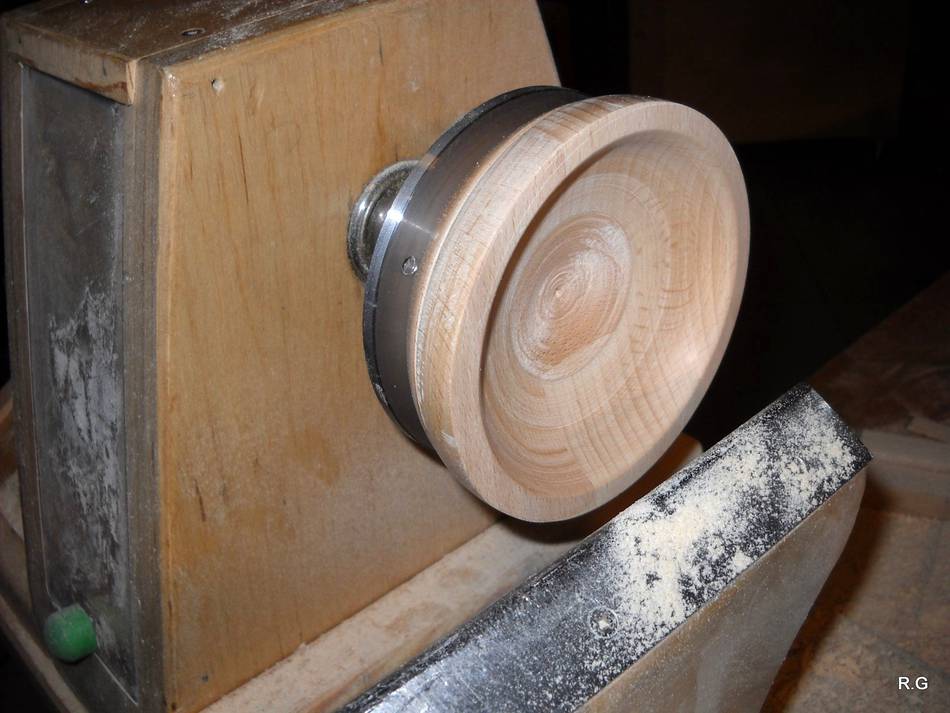

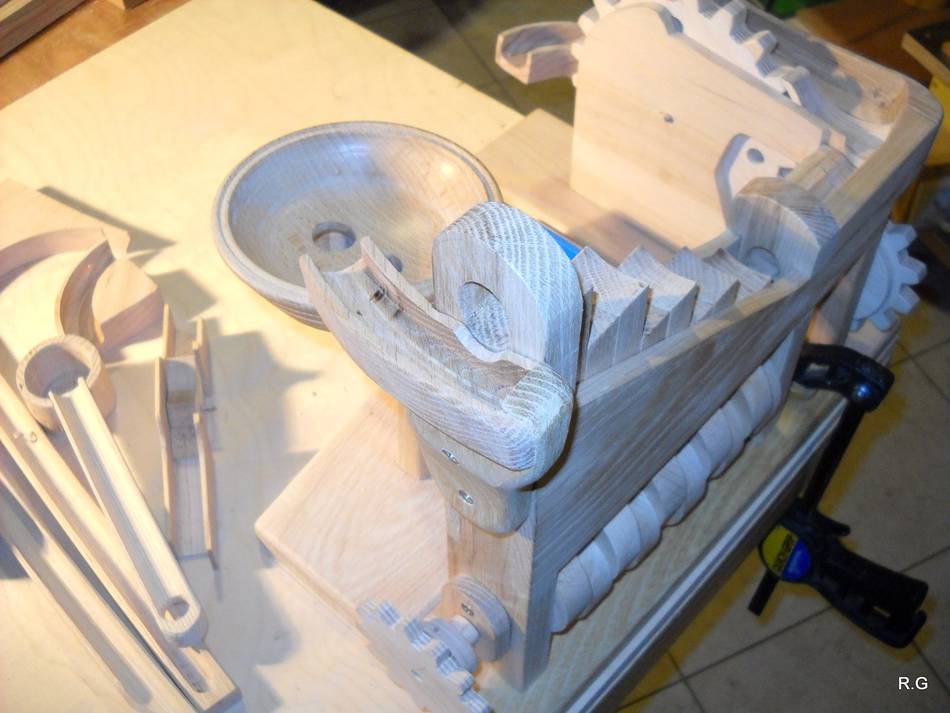

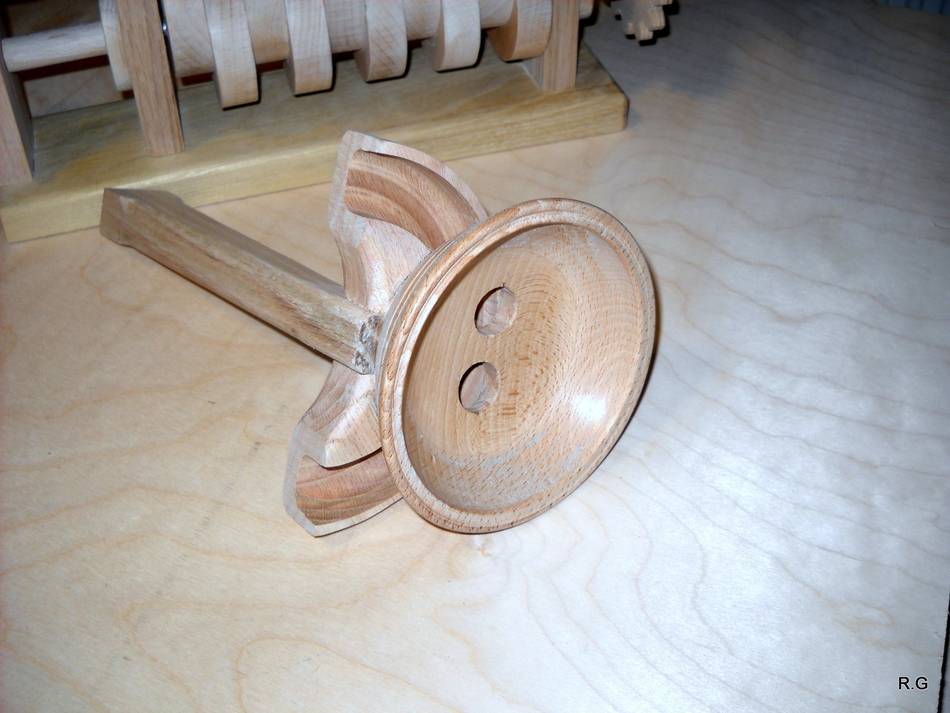

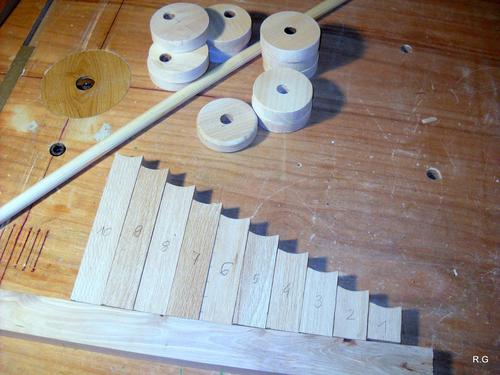

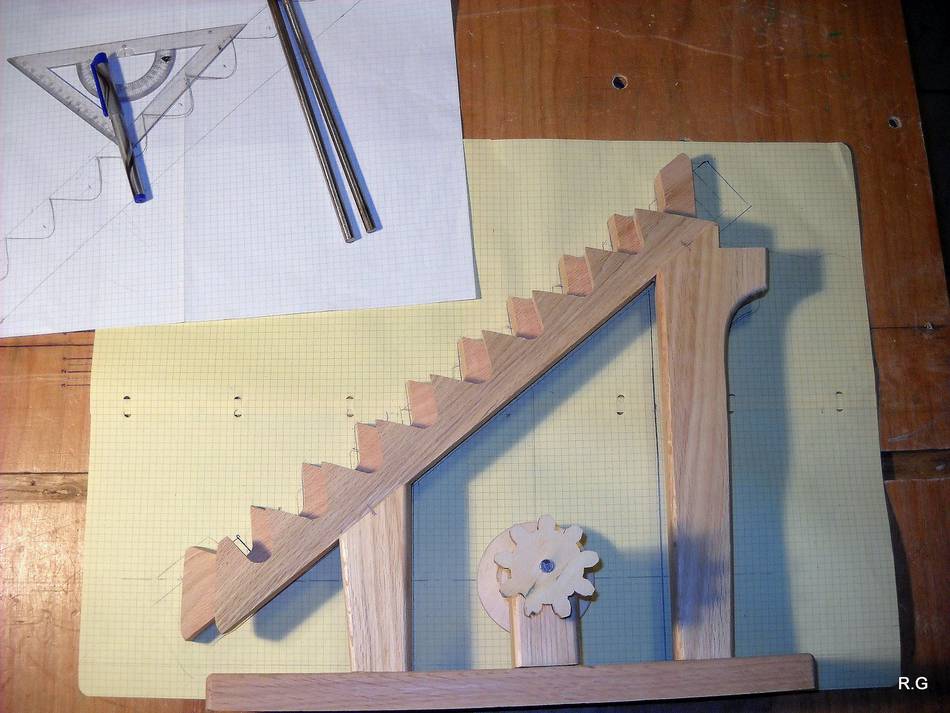

Construction of the machine

I hope the pictures tell the story in sufficient detail.

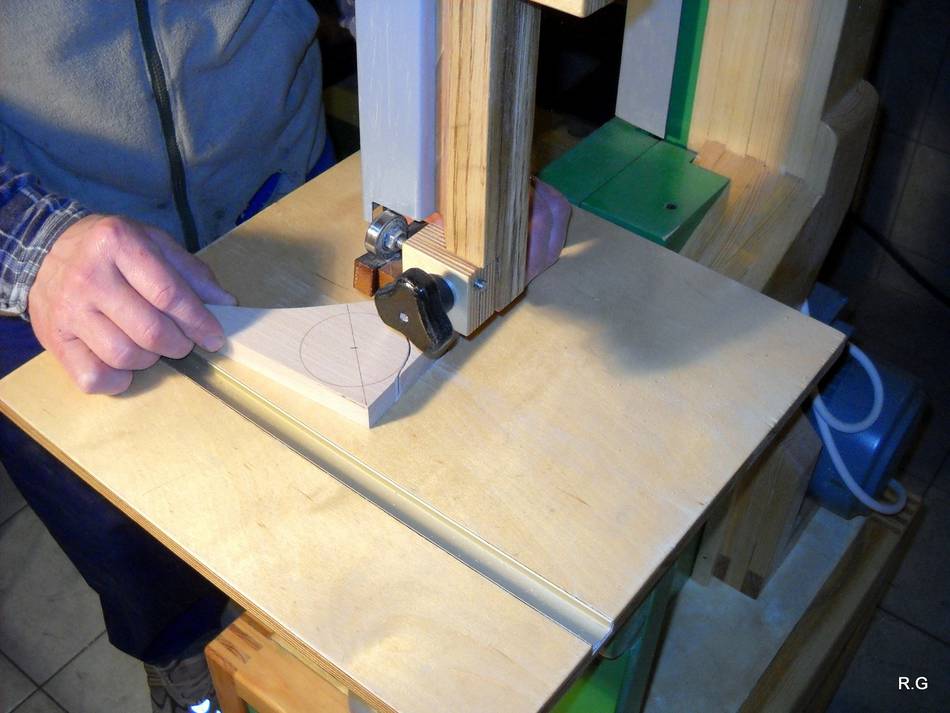

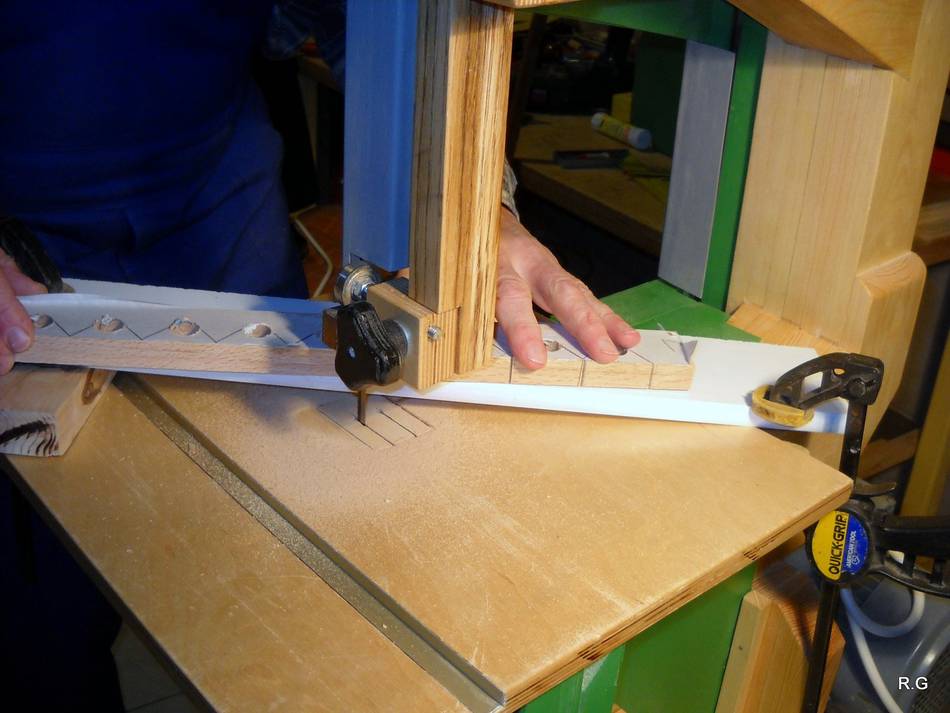

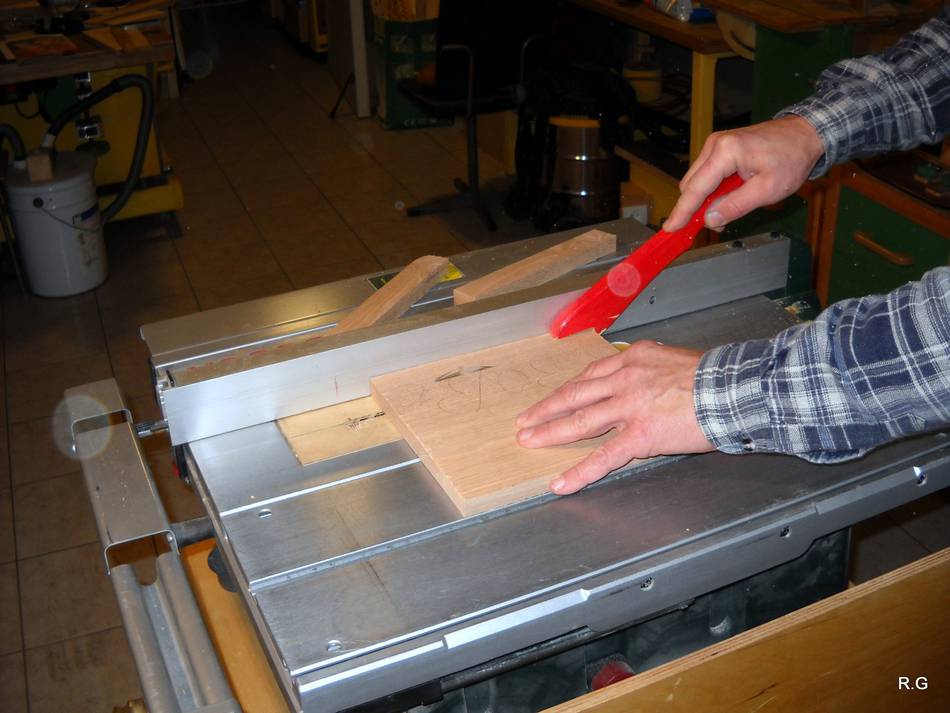

Ryszard used several homemade machines in the construction, including:

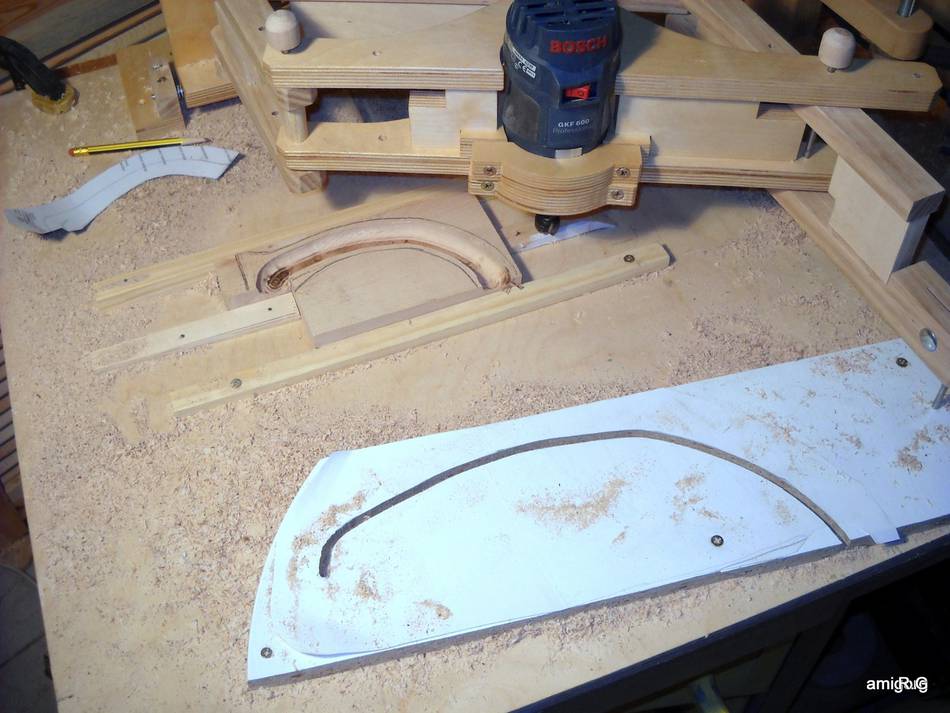

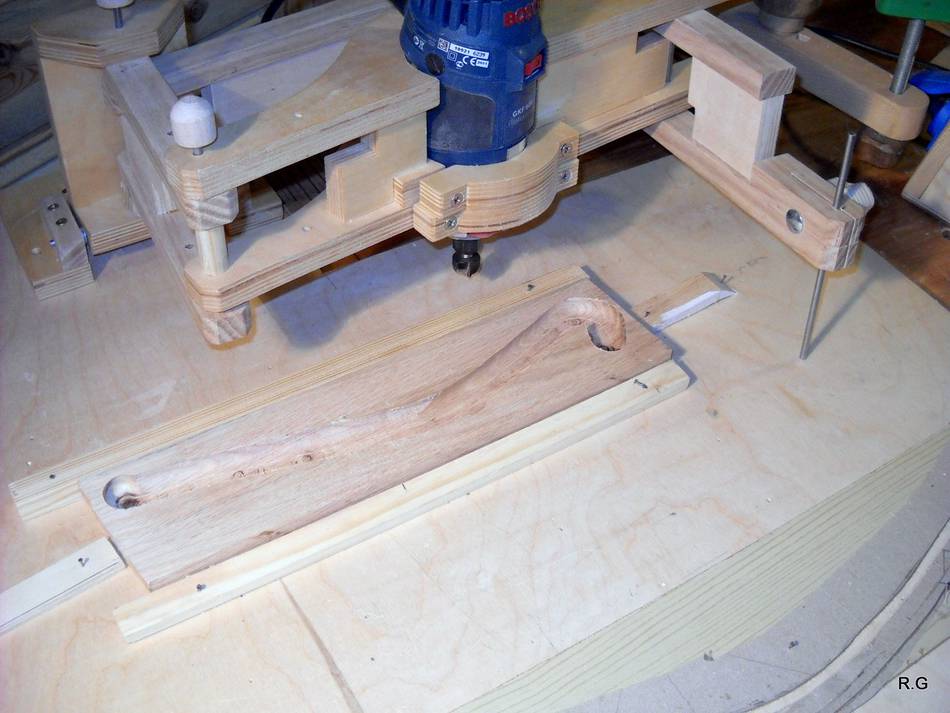

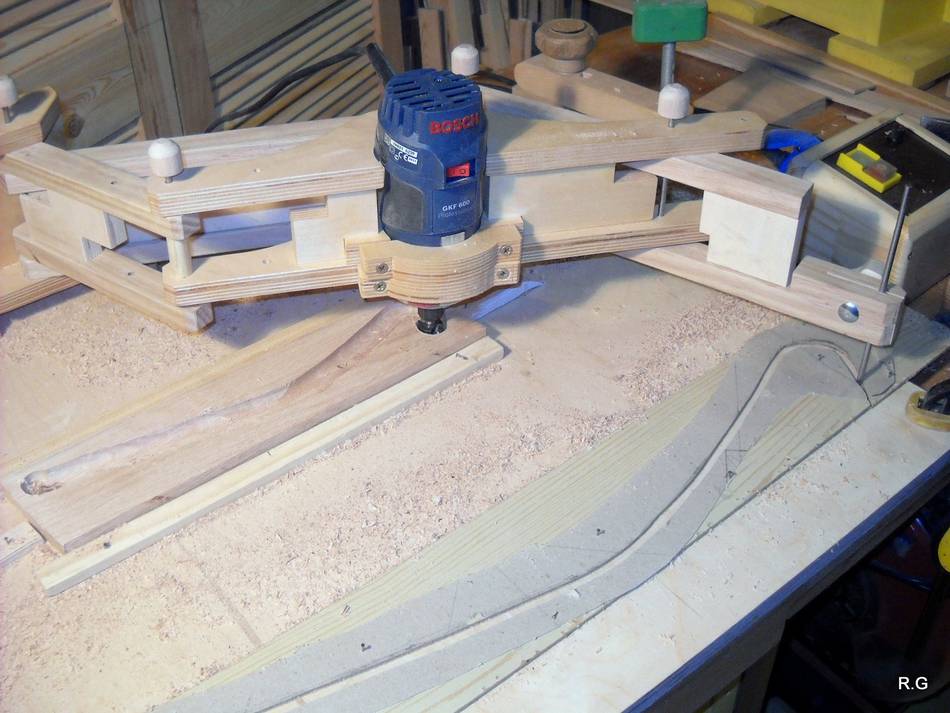

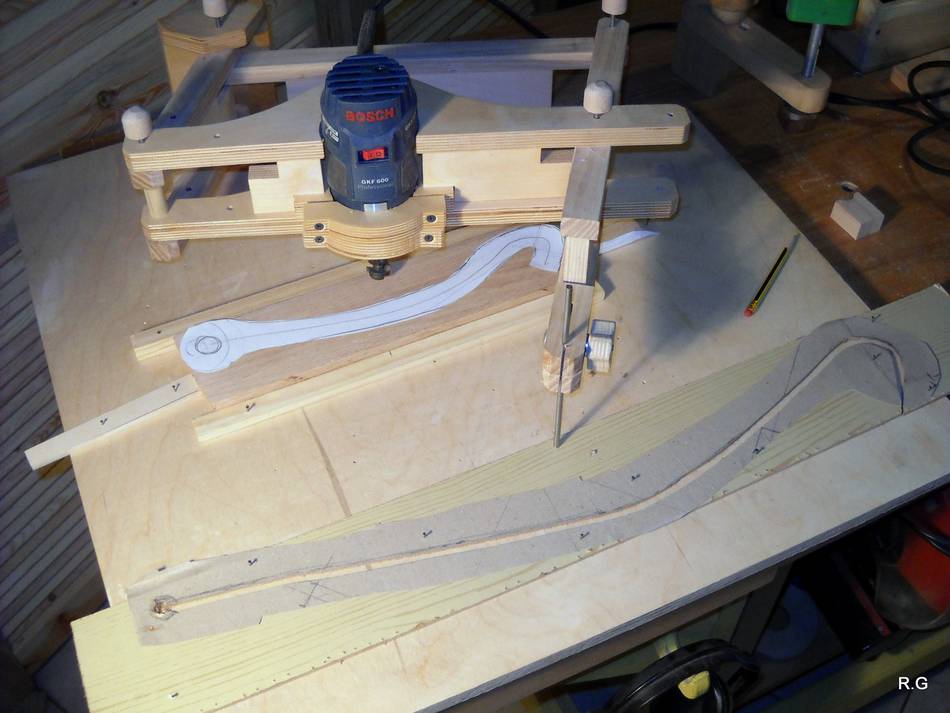

He also used a homemade pantograph based on this design

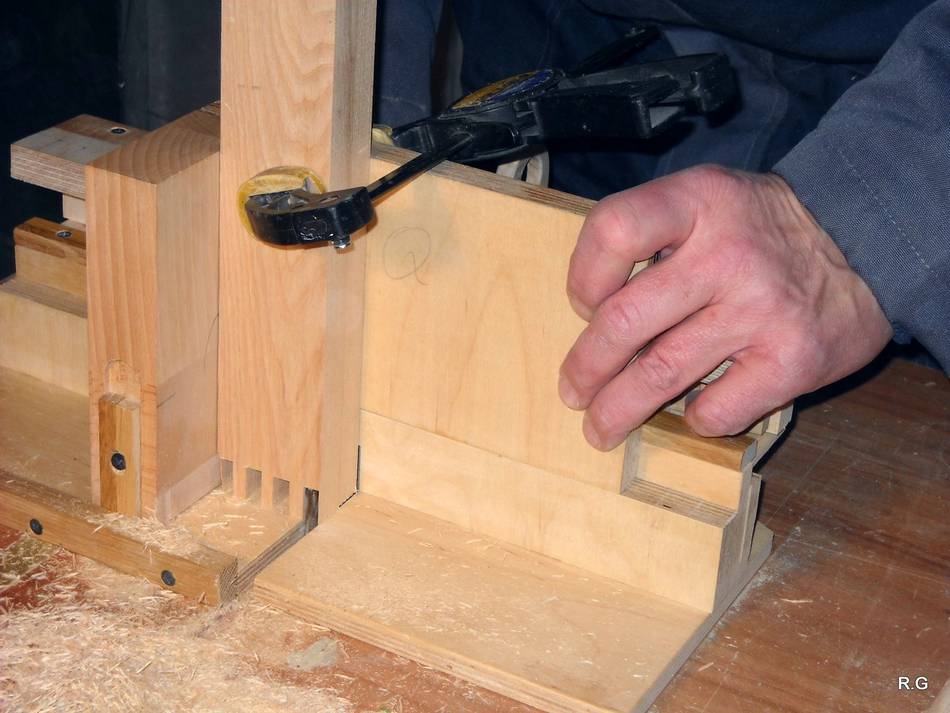

and a box joint jig based on John Heisz's design
and the free online gear generator
