Ukulele plans

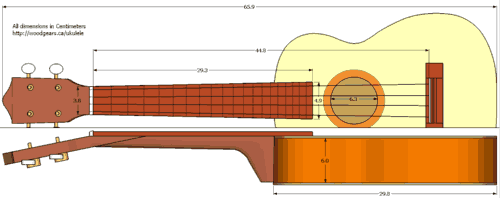

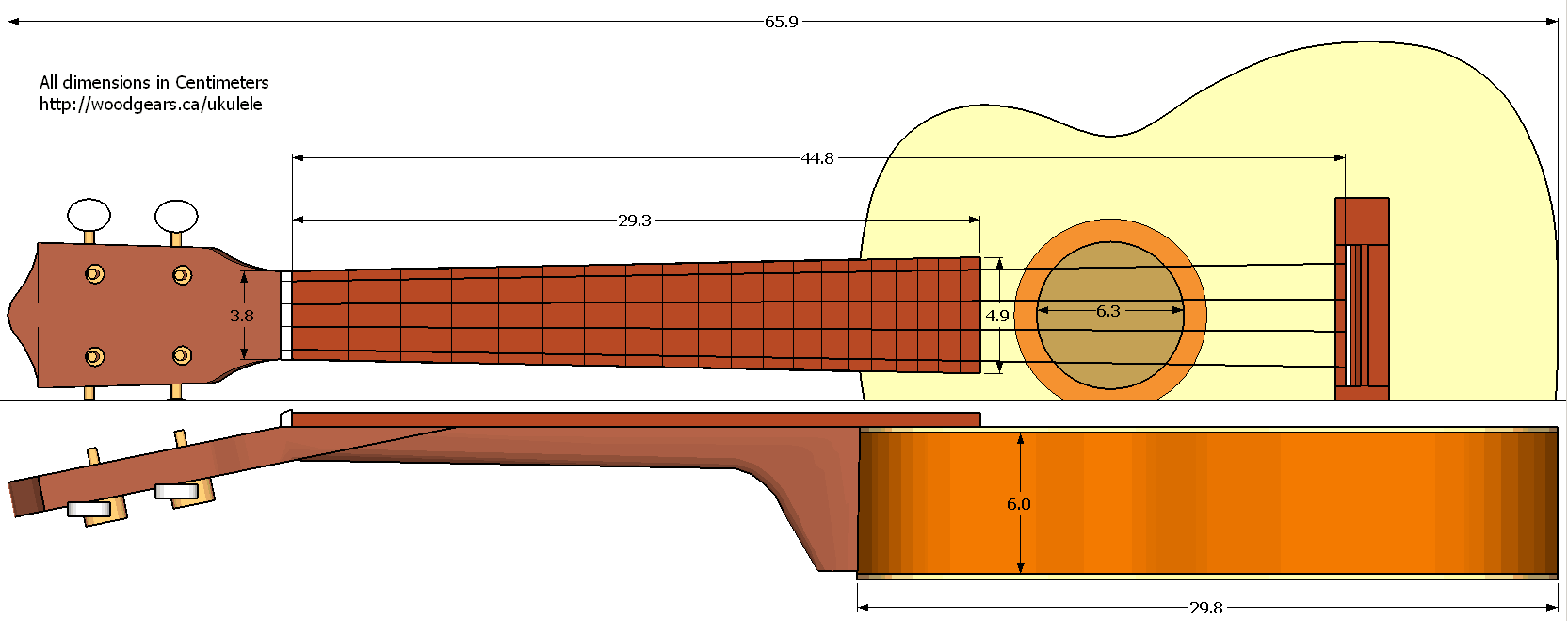

These are the drawings I used to build my tenor ukulele.

You can download this profile as a PNG file which you can use with the free eval. version of my BigPrint program.

You can also Download as PDF

All dimensions are in centimeters. Frets are NOT precisely positioned. Please see here for how to position the frets.

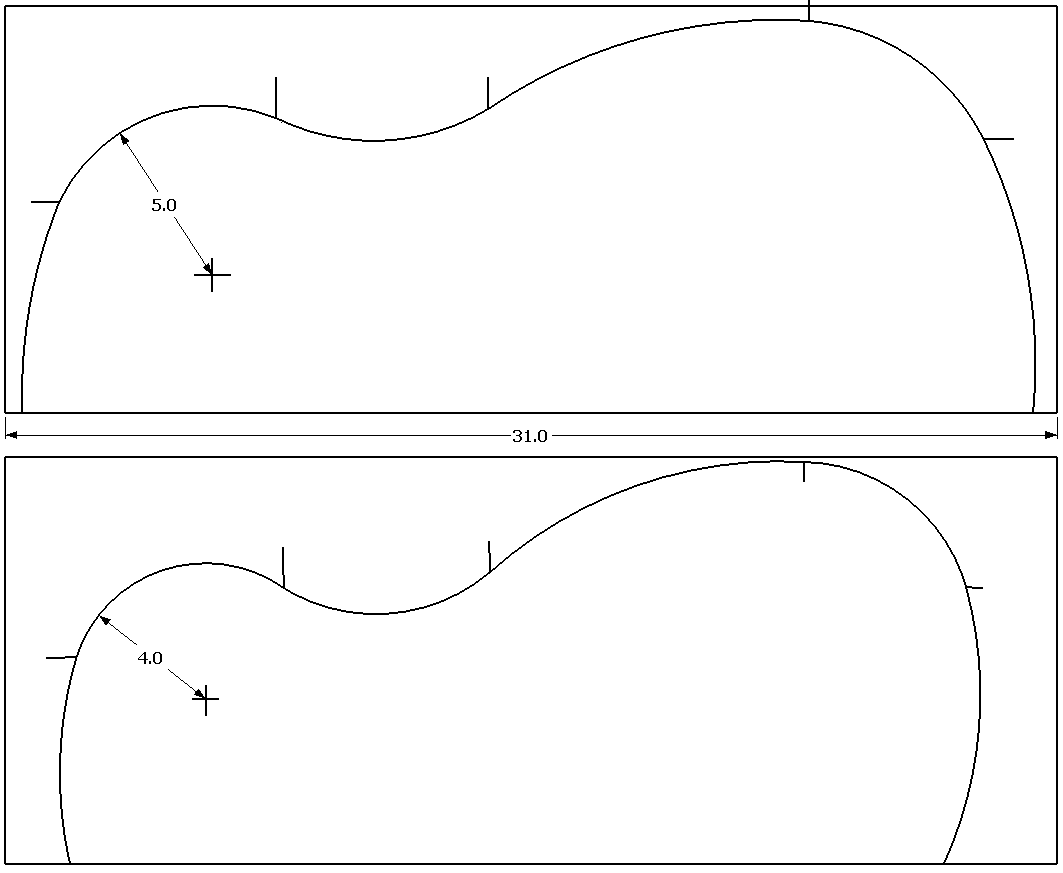

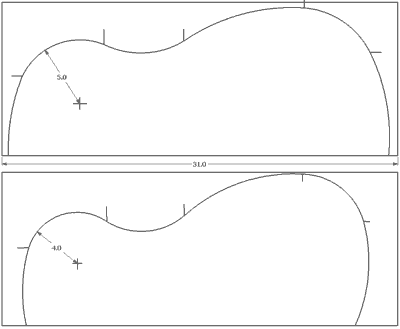

This is the bending shape, plus over-bent profile that I used for bending the sides.

You can download this profile as a PNG file which you can use with the free eval. version of my BigPrint program.

You can also Download as PDF

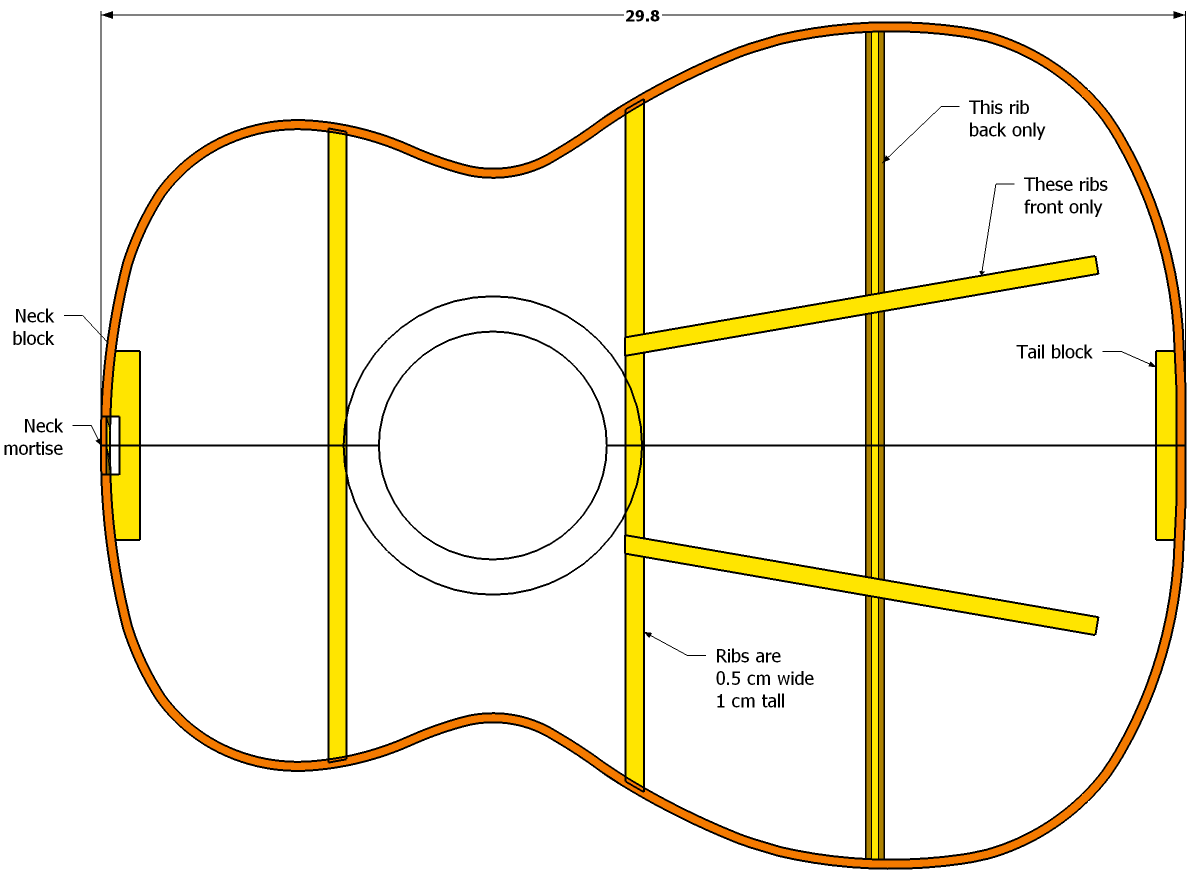

Rib locations. You can download this as a PNG file which you can use with the free eval. version of my BigPrint program.

You can also Download as PDF

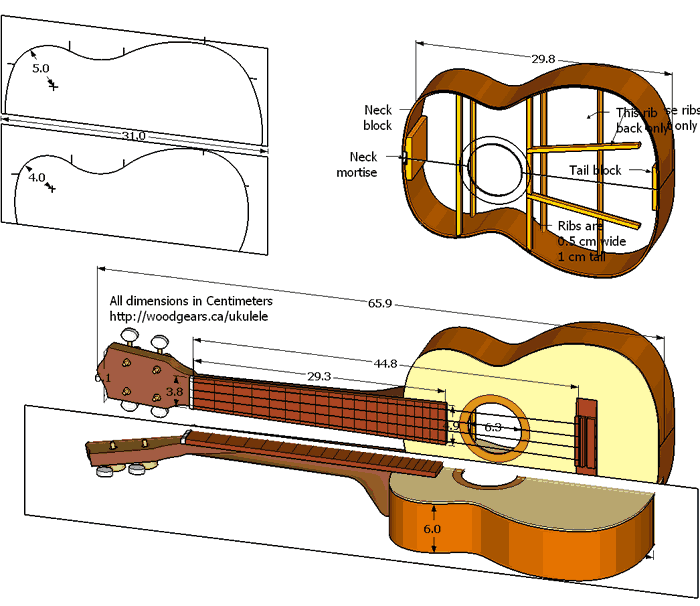

You can also download the SketchUp CAD model of the ukulele

To open the CAD model you need the free SketchUp program.
