Andy's homemade truck project

Every once in a while, I come across something non-woodworking related that is just too cool not to write about.
Andy's homemade truck project is one of those!

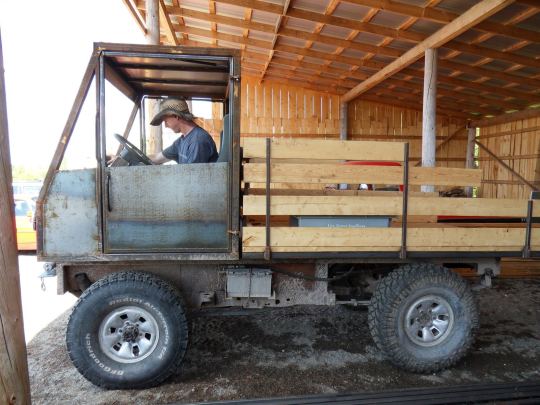

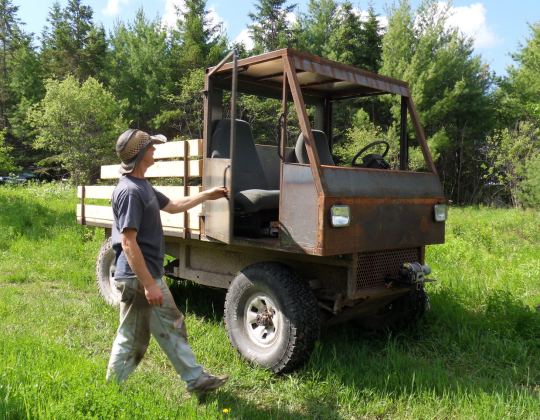

Andy's homemade truck is designed for delivering supplies to tree planters on rough terrain. It's intended to carry loads where pickup trucks can't go. ATVs are often used, but they don't have much cargo capacity. This is where this vehicle comes in.

Other vehicles that could do the job would be a Unimog or maybe a Hummer H1, but those tend to be quite expensive.

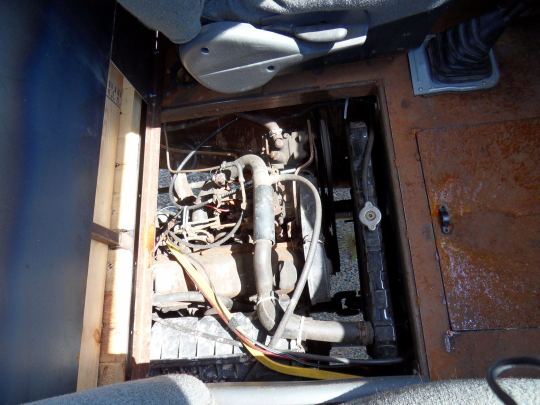

The engine is below the cab. It's a Volkswagen diesel engine, which is normally mounted transverse. But the engine is mounted forward facing.

The shafts that would normally connect to the front wheels connect to the front and rear differential axles.

The differentials themselves have a fair bit of reduction, so the gear ratio for the truck is quite high. It's intended to be driven off-road only, so having extra reduction to the wheels is a plus.

Most of the truck is made from scrap, although Andy has spent about $1500 on new steel. All the long straight pieces had to be bought new because these are hard to find as scrap.

The truck is still far from finished, but so far it's drivable. It's a pretty cool vehicle!

Update 2012

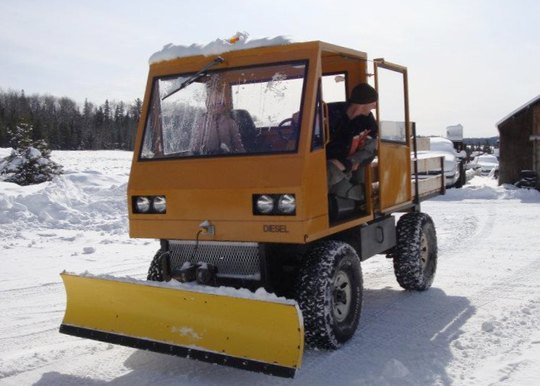

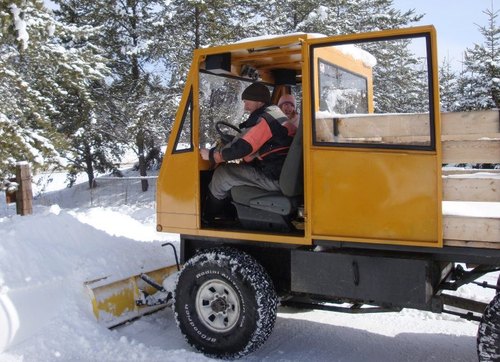

In the winter of 2011-2012, Andy finally got around to finishing the truck, including hydraulics for dumping, a snow plow, a radio, headlights, and a windshield!

He now uses this truck instead of his 1950's payloader for claring the snow off of his driveway.
