14" Bandsaw / bandmill specifications

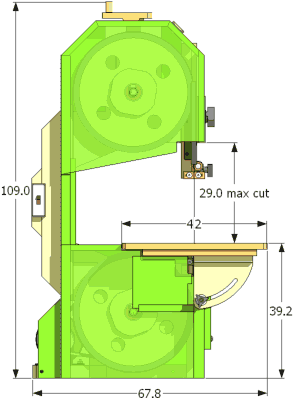

Overall dimensions (bandsaw)
| | Height | 109 cm | 43"
|
|---|
| Width | 68 cm | 27"
|
|---|
| Depth | 45 cm | 18"
|
|---|
| Wheel diameter | 35 cm | 14"
|
|---|
| Table size | 42 x 42 cm | 16.5 x 16.5"
|
|---|
| Table tilt | 0-45°
| Weight | 37 kg | 82 lbs
|
|---|
Blade size
| | Length | 2375 mm | 93.5"
|
|---|
| Width | 4-19 mm | 3/16 - 3/4"
|
|---|
Maximum cut (bandsaw)
| | Height | 29 cm | 11 3/8"
|
|---|
| Throat depth | 34 cm | 13.5"
|
|---|

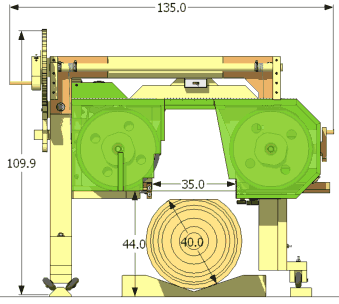

Maximum cut (bandmill)
| | Max log | 40cm | 16"
|
|---|
| Max slab width | 34 cm | 14"
|
|---|
Slab width limited by motor power and blade sharpness.
3/4" blade with 2 TPI required for wide slabs.
|
Motor
| | Hp | 1/3 HP to 2 HP
Minimum 1 HP for sawmill
|
|---|
| RPM | Induction motors with RPMs
from 1450 - 3500 can be used
|
|---|
|
|---|
|
|
| |
