Bandsaw specifications

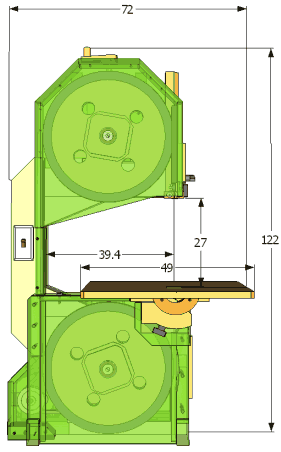

Overall dimensions
| | Height | 122 cm | 48"
|
|---|
| Width | 72 cm | 28.5"
|
|---|
| Depth | 46 cm | 18"
|
|---|
| Wheel diameter | 40 cm | 16"
|
|---|
| Table size | 49 x 46 cm | 19 x 16"
|
|---|
| Table tilt | 0-45°
| Weight | 45 kg | 100 lbs
|
|---|
Maximum cut
| | Height | 27 cm | 10.5"
|
|---|
| Throat depth | 39.4 cm | 15.5"
|
|---|
Blade size
| | Length | 2670-2700 mm | 105-106"
|
|---|
| Width | 4-18 mm | 3/16 - 3/4"
|
|---|
Motor
| | Hp | 1/3 HP min to 2 HP max
|
|---|
|
|---|
|
|
|
