6"x48" belt sander plans preview

Copyright 2016 Matthias Wandel

All dimensions in centimeters, unless indicated otherwise.

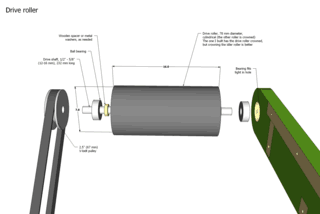

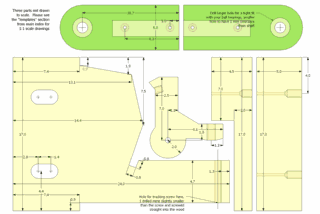

Sanding belt unit

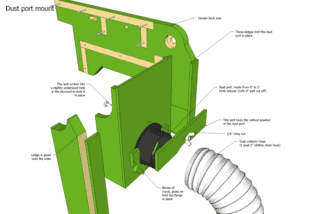

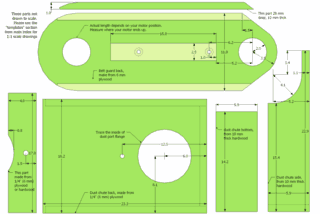

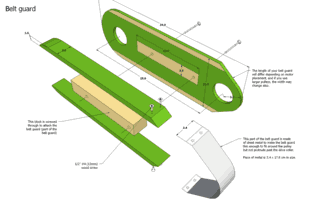

Dust collection and belt guard

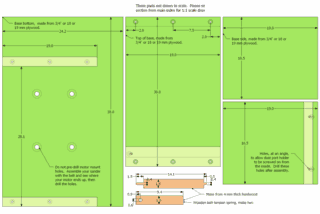

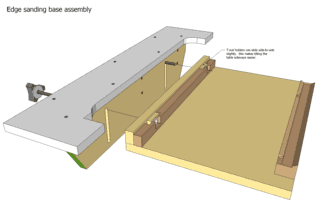

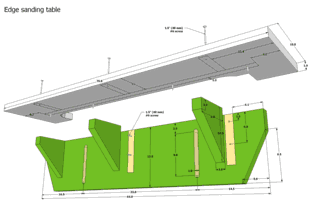

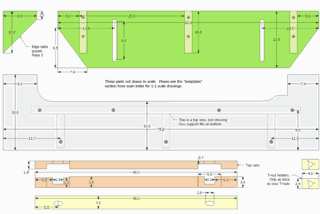

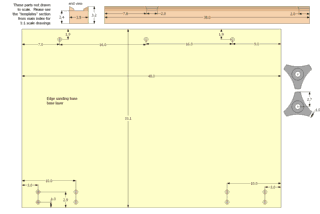

Edge belt sander base

1:1 printable templates

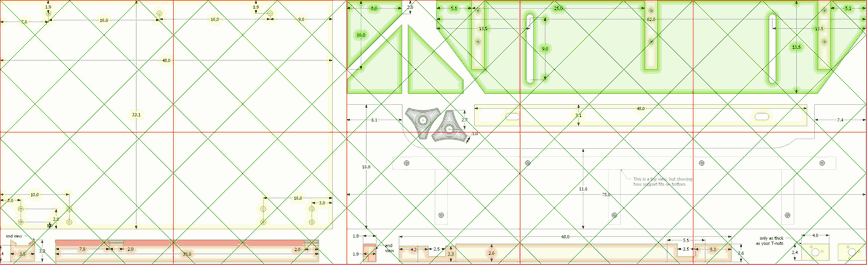

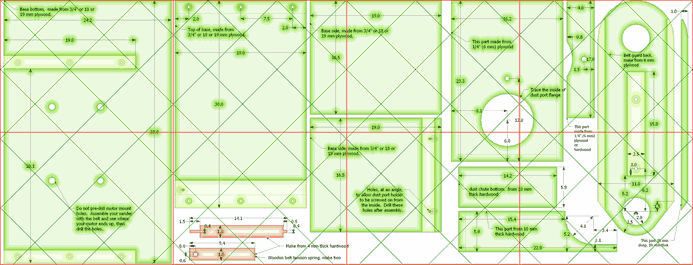

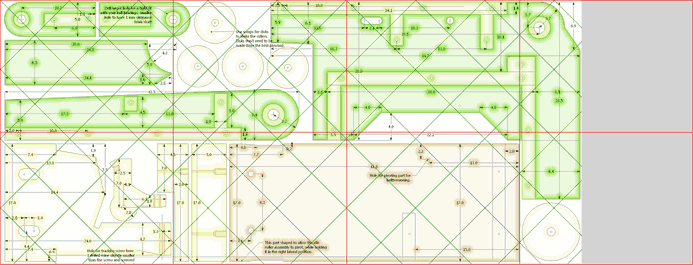

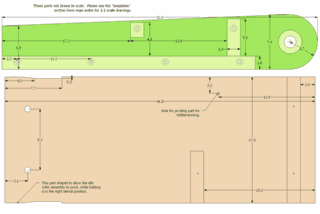

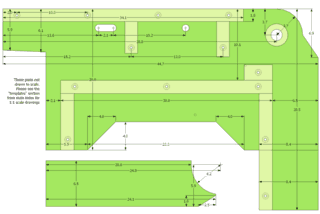

There are 1:1 printable templates for many of the parts. These are useful for checking part sizes by
placing them on the paper, or for some parts, pasting the template onto plywood for cutting out.

The templates span across several A4 or letter sized pages that you can print on a regular sized printer. An alignment grid helps to line up the pages when gluing them together.

Sanding unit, 8 pages

Base, 8 pages

Edge table, 10 pages

Building instructions

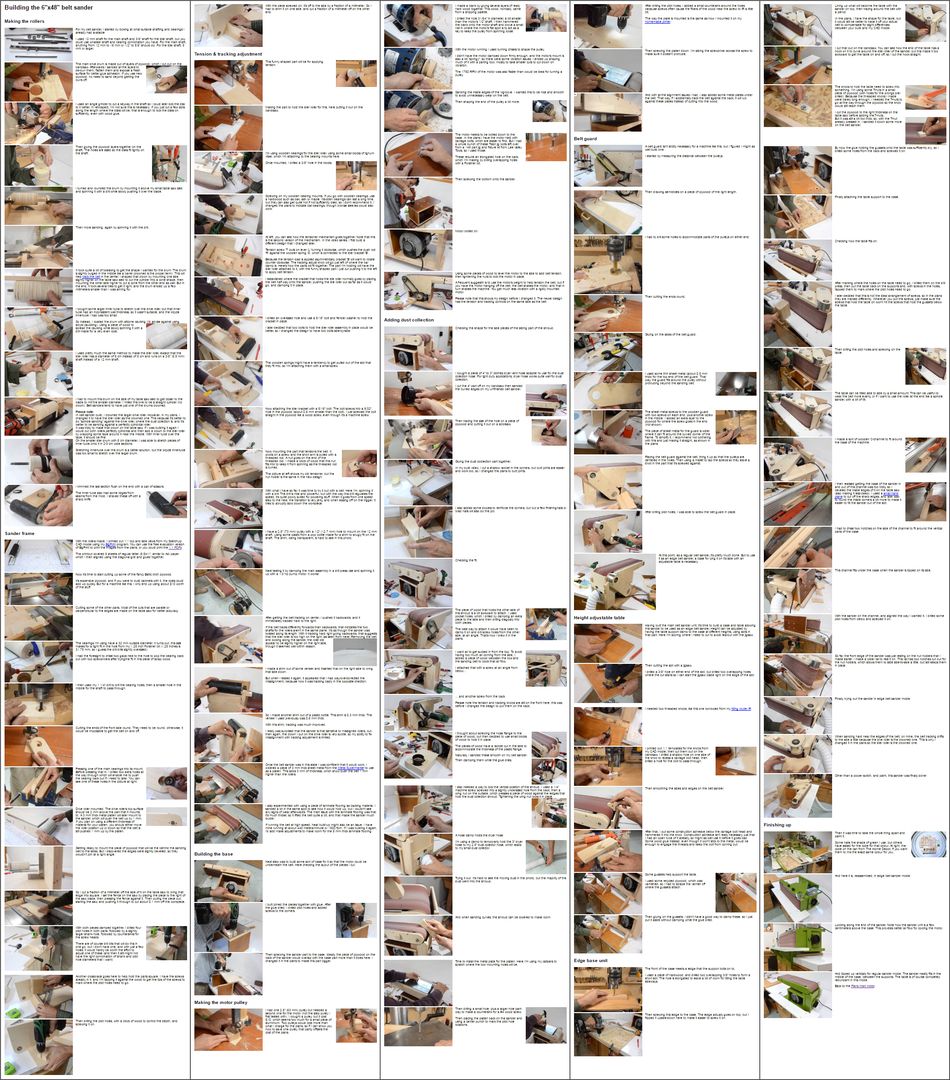

The plans also include extensive building instructions, with over 150 photographs showing the steps involved in building the strip sander.

Buy the 6"x48" belt sander plans

Buy the 6"x48" belt sander plans
