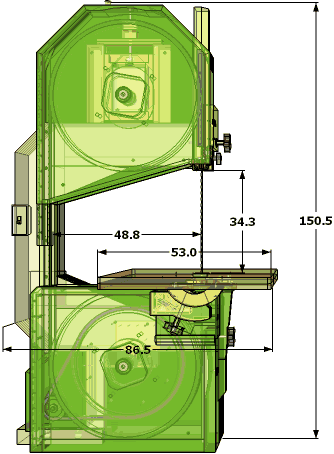

Overall dimensions
Maximum cut
Blade size
Motor
Use induction motors only.
Overall dimensions | ||
| Height | 150 cm | 59" |
|---|---|---|
| Width | 87 cm | 34" |
| Depth | 48 cm | 19" |
| Wheel diameter | 50 cm | 20" |
| Table size | 53 x 48 cm | 21"x19" |
| Table tilt | ||
| Weight | 60 kg | 140 lbs |
Maximum cut | ||
| Height | 34 cm | 13" |
| Throat depth | 48 cm | 19" |
Blade size | ||
| Length | 3360 mm | 132-133" |
| Width | 4-32 mm | 3/16 - 1 1/4" |
Motor | ||
| Hp | 1/3 HP min to 2 HP max | |
| RPM | 1450 - 3550 Use induction motors only.
| |
