3D Pantograph specifications

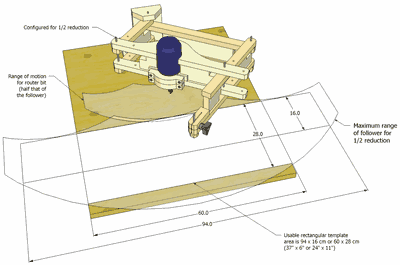

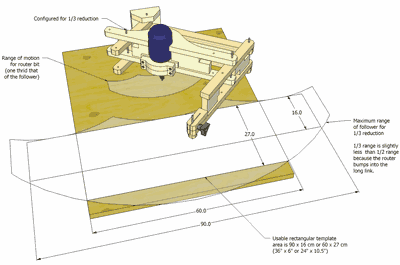

| 1/2 scale configuration | 1/3 scale configuration | |
|---|---|---|
|
| |
| Click images to enlarge | ||
| 1/2 configuration | 1/3 configuration | |
|---|---|---|
| Radial reach of follower | 18.6 - 69.5 cm (7 3/8" - 27 3/8") | 24.6 - 67.7 cm (9 7/8 - 26 5/8") |
| Radial Reach of router bit | 9.3 - 34.8 cm (3 5/8 - 13 1/2") | 8.2 - 22.6 cm (3 1/4 - 8 7/8") |
| Maximum wide rectangle (template) | 94 x 16 cm (37 x 6 1/4") | 90 x 16 cm (35 x 6 1/4") |
| Maximum wide rectangle (router) | 47 x 8 cm (18.5 x 3") | 30 x 5.3 cm (12 x 2") |
| Maximum area rectangle (template) | 60 x 28 cm (24 x 11") | 60 x 27 cm (24 x 10 1/2") |
| Maximum area rectangle (router) | 30 x 14 cm (12 x 5 1/2") | 20 x 9 cm (8 x 3 1/2") |
The 3D pantograph can scale to 1/2 or 1/3. For 1:1 copying, build my router copy carver
Overall dimensions
| ||
| Height | 19 cm (7.5") | |
|---|---|---|
| Width | 56 cm (22") | |
| Depth | 33 cm (13") | |
| Suggested base size | 75 x 16 cm (30 x 24") | |
| Router type | 71 mm diameter palm router / laminate trimmer Bosch Colt / GKF 600 palm router is ideal. | |
