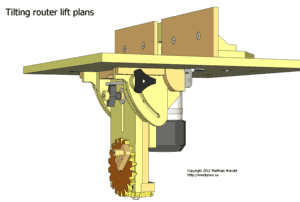

Tilting router lift plans - preview

Copyright 2012 Matthias Wandel

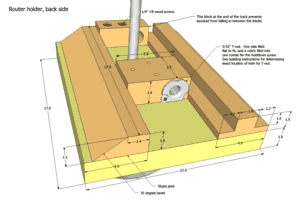

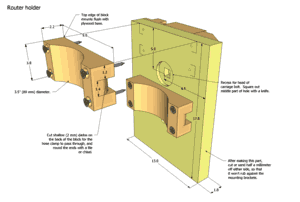

Elevating mechanism

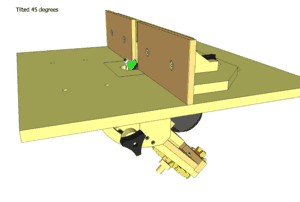

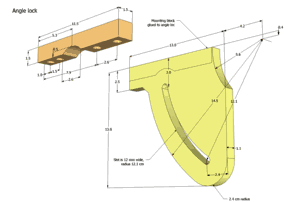

Tilting mechanism

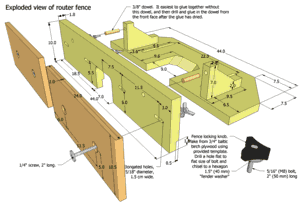

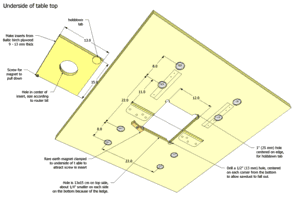

Table & Fence

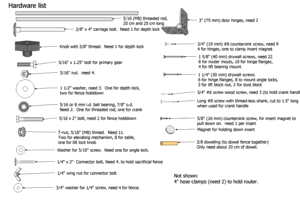

Graphical hardware list

1:1 drawings

The plans also include 1:1 printable drawings. These are printed over several sheets and then pasted together.
The 1:1 drawings are very handy for checking the parts against. Or you can avoid measuring altogether by using the 1:1 printout as a guide.

Depending on your choice of plywood thickness and 5/16" or M8 threaded rod,

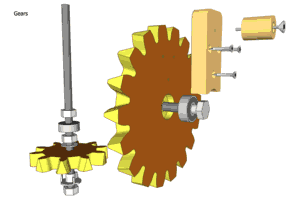

different gear template sets are included to provide an even height increment per crank turn.

Detailed building instructions

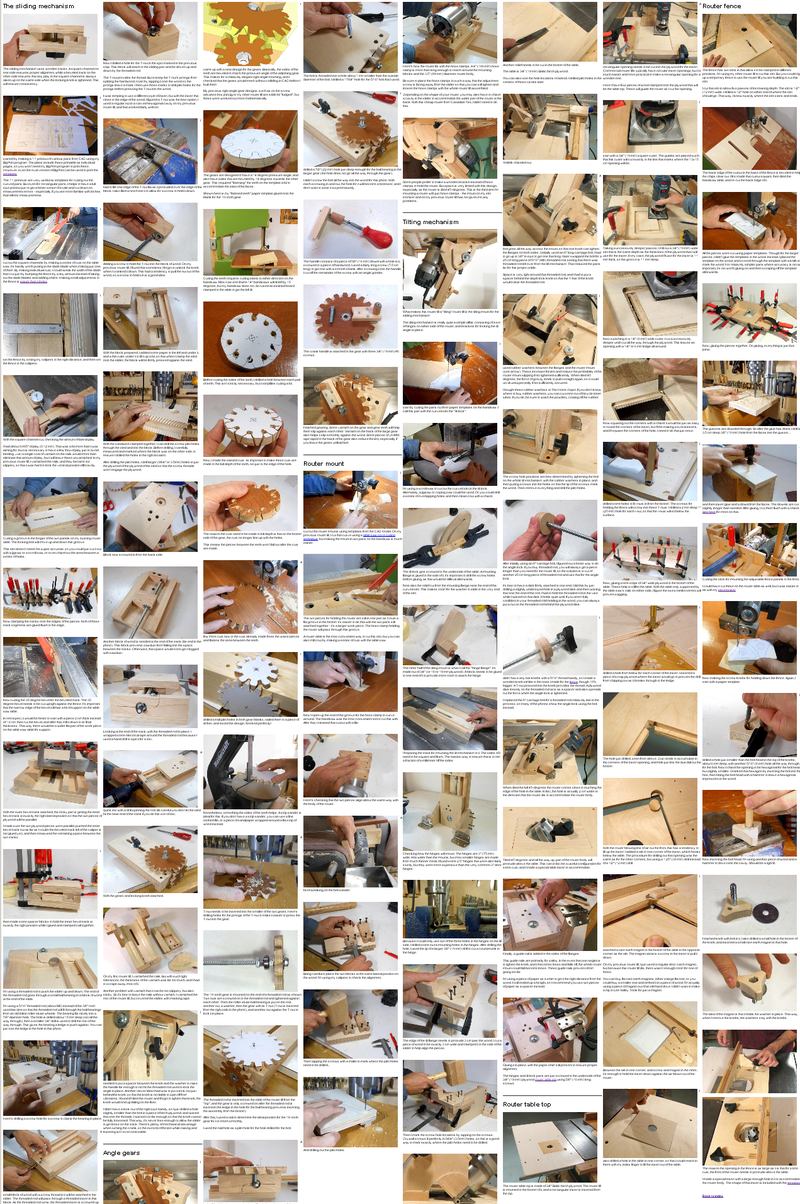

The plans also include building instructions with over 100 photos showing variyous steps in the construction.
