Screw advance box joint jig specs

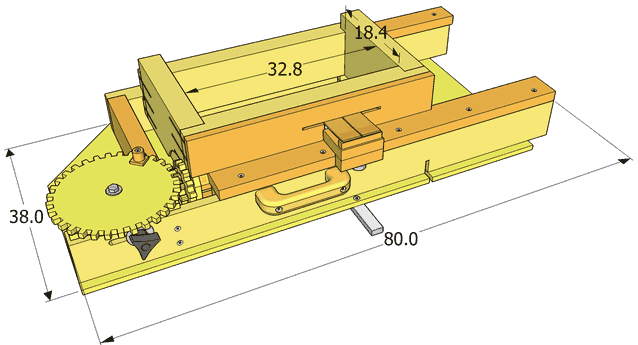

Overall dimensions

Height150 cm39"
Width80 cm32"
Depth38 cm15"
Weight6 kg14 lbs

Maximum cut

Width32.8 cm12.9"
Stock thickness15 cm6"
Depth of cut*4 cm1.5"
* Maximum depth cut will cut partly into stock holding box.

Table saw

Contractor saw, hybrid saw, or cabinet maker saws preferred. Saw must have a miter slot, or (for format style table saw) some means of attaching the jig to the sliding table.

I have also used the jig with small jobsite saws and my homemade table saw, but a saw with a cast iron table is preferrable.
