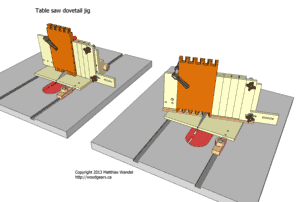

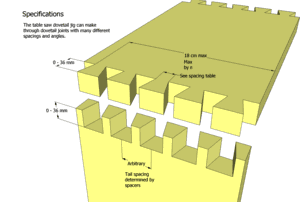

Table saw dovetail jig plans preview

Copyright 2013 Matthias Wandel

1:1 printable templates

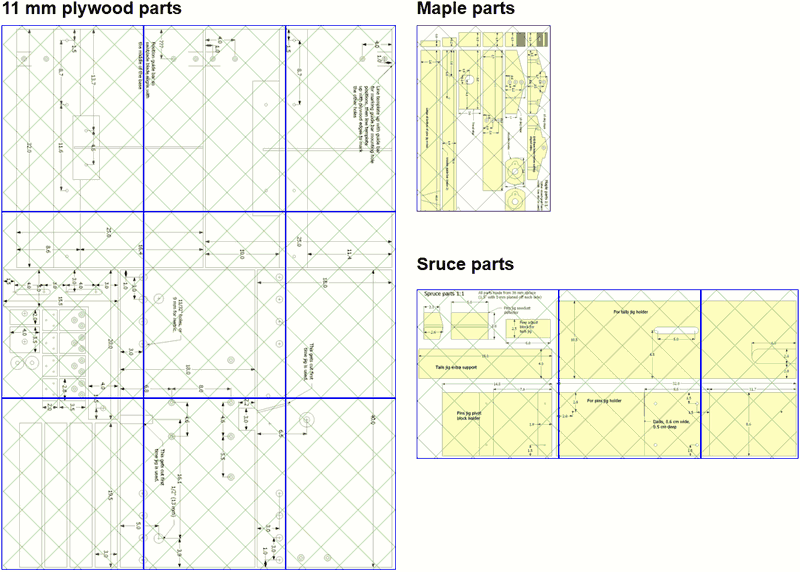

There are 1:1 printable drawings for all the parts as PDFs. These can be used as templates, or to hold the part against them. or, for some parts, pasting the template onto plywood for cutting out. The templates are as a PDF, segmented to fit on regular letter (8.5x11") or A4 sized paper. A diagonal grid across all the pages makes it easy to align the pages when gluing them together as one sheet.

The plans also include images that can be loaded into the free eval version of BigPrint (for Windows). This allows you to optimize printing for any size paper.


Building instructions

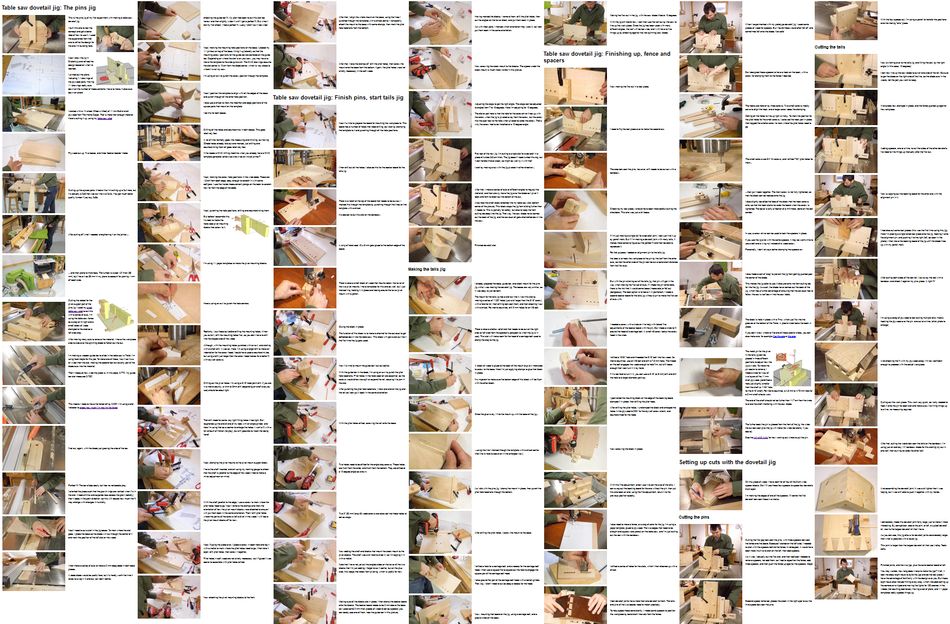

The plans also include extensive building instructions, with many photographs illustrating the steps of building the jigs.
All the photographs (in the plans) can be enlarged by clicking on them.

Back to the plans
