Peter Fabricius's wooden cyclone

Peter Fabricius writes:

Hi Matthias

I enjoyed your building project of the small dust collector. Lots of technical info that I was not aware of. I built the cyclone designed by Ron Walters. It is small and sits under the small table for my belt sander. It is powered by the house central vac system. The big deal for me is that the filter bag stays clean and therefore has consistent suction, all my shop debris goes into the cyclone and then the 5 gal pail under it. So it's easy to empty out and it is very efficient. I never see sawdust in the central vac bag anymore. Nothing but the greatest. Please pass my comments to Ron with a big thanks.

Peter Fabricius

Hanover, Ontario

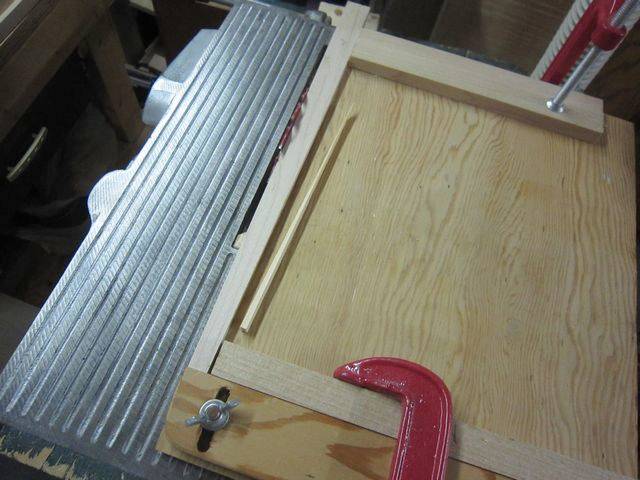

Sled for wedge cuts

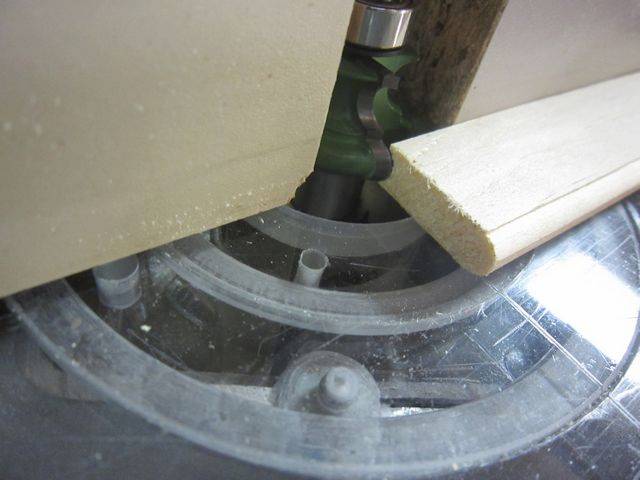

Shaping the wedge edges

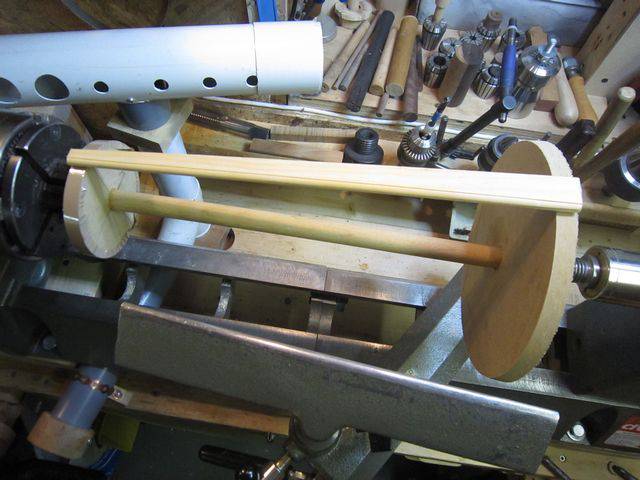

Top and bottom set up for assembly

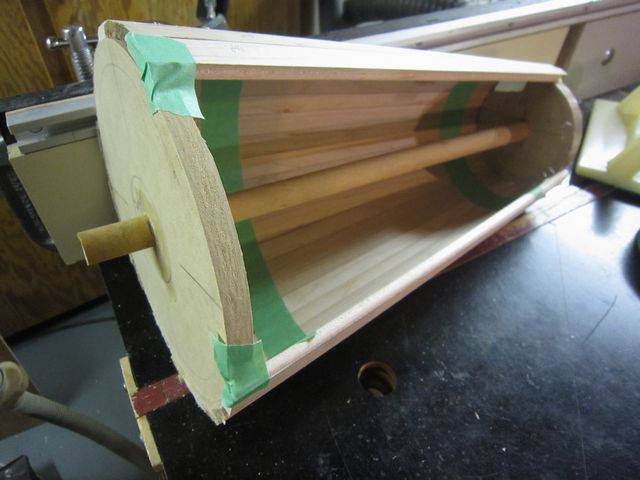

Dry fitting the wedges

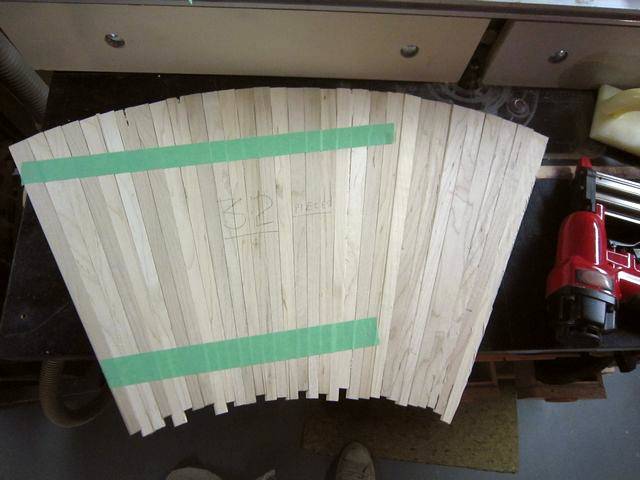

The wedges

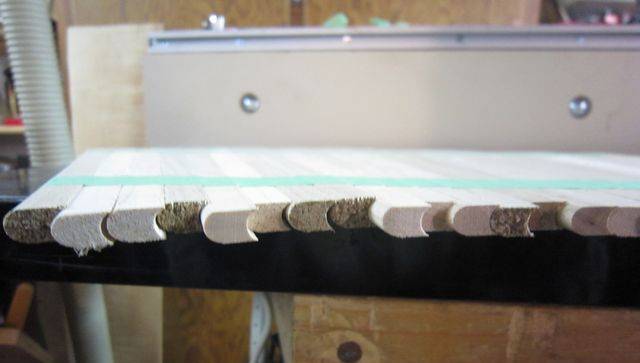

Shaped wedge edges

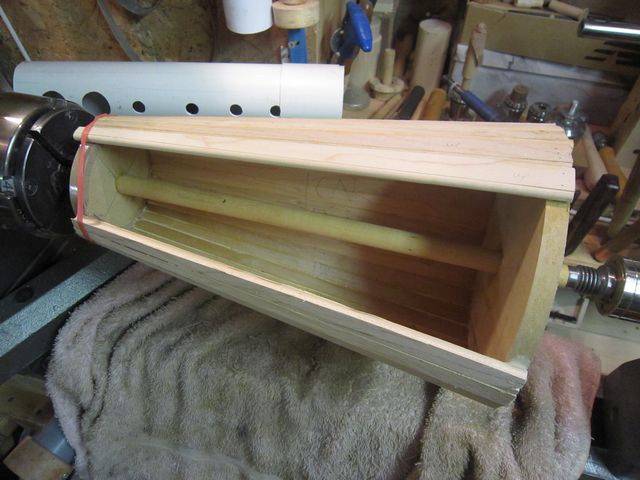

Assembly on the lathe

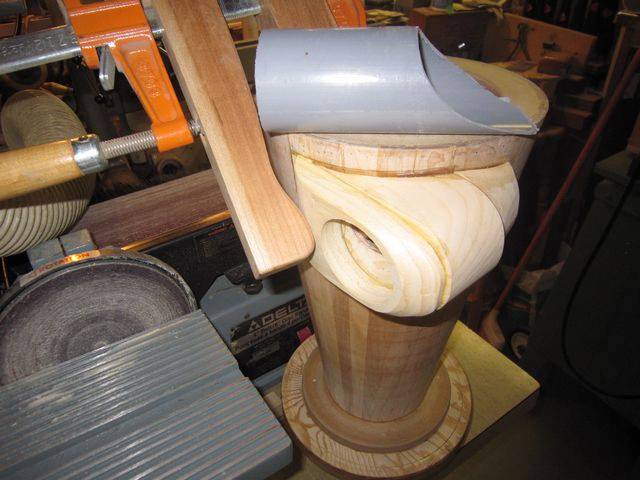

Air-in pipe cut to shape, and wooden holder



Cyclone mounted on lathe face plate for turning

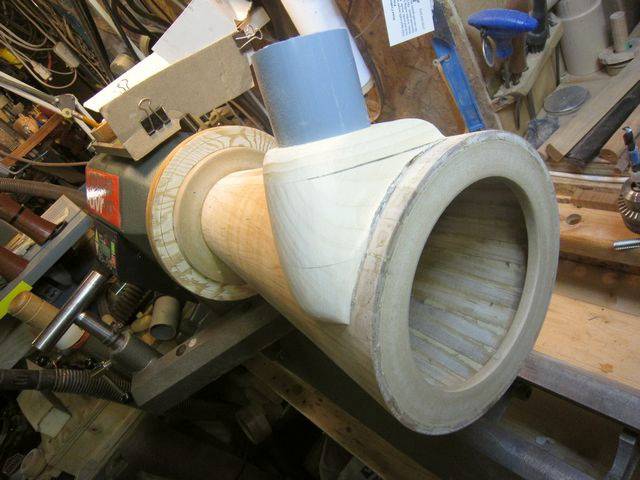

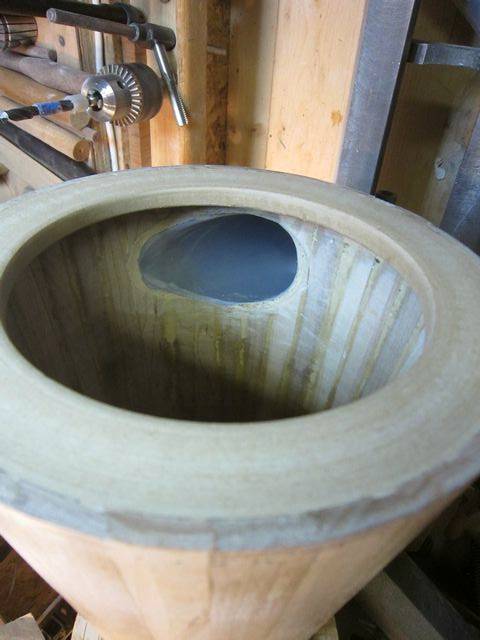

Large end opened up for access

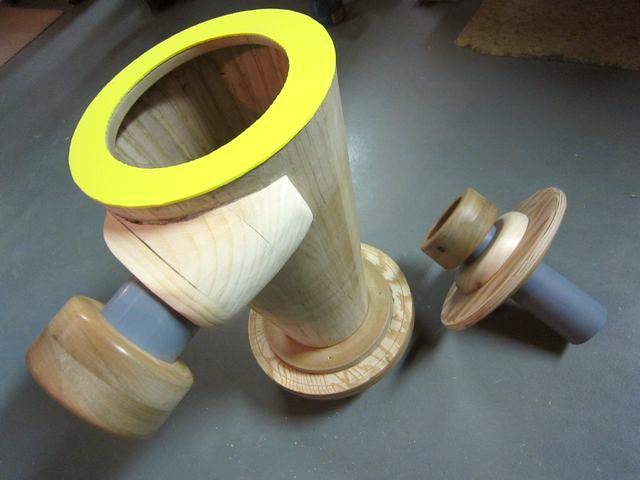

Cyclone large end, showing the air in pipe

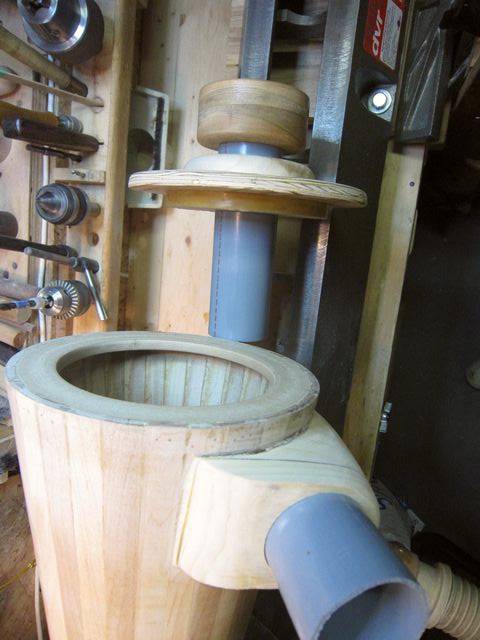

Cyclone, air outlet behind.

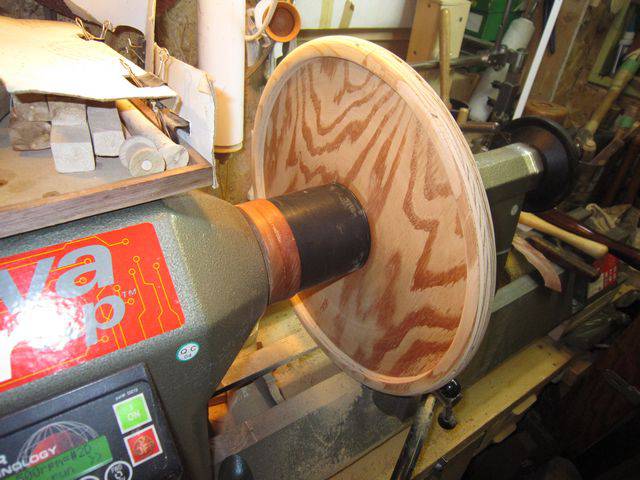

5 gallon bucket top, underside

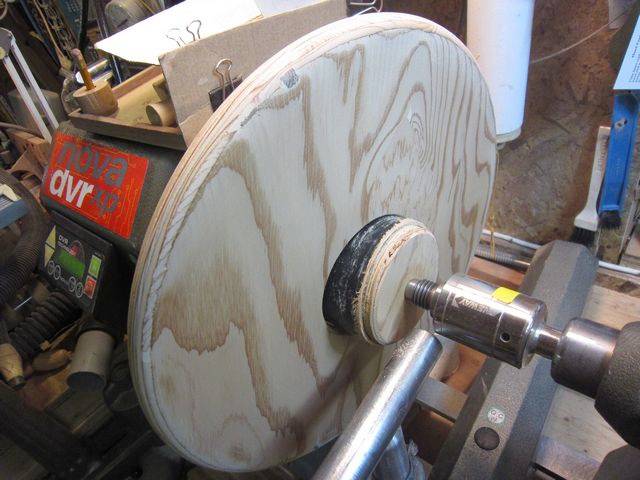

5 gallon bucket top, 3.75 inch hole cut.

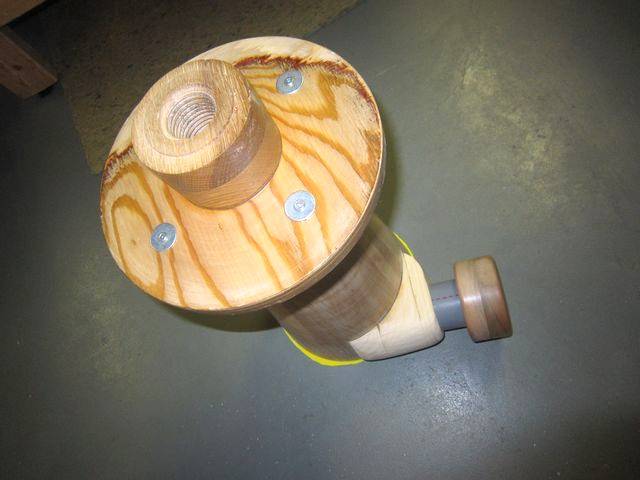

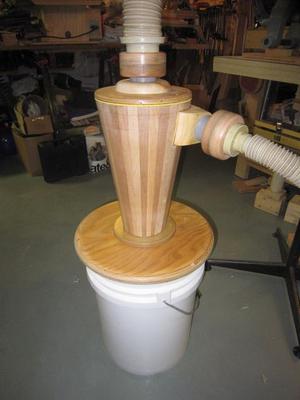

Completed cyclone
