Marble machine 2.1 plans

Copyright 2011 Matthias Wandel

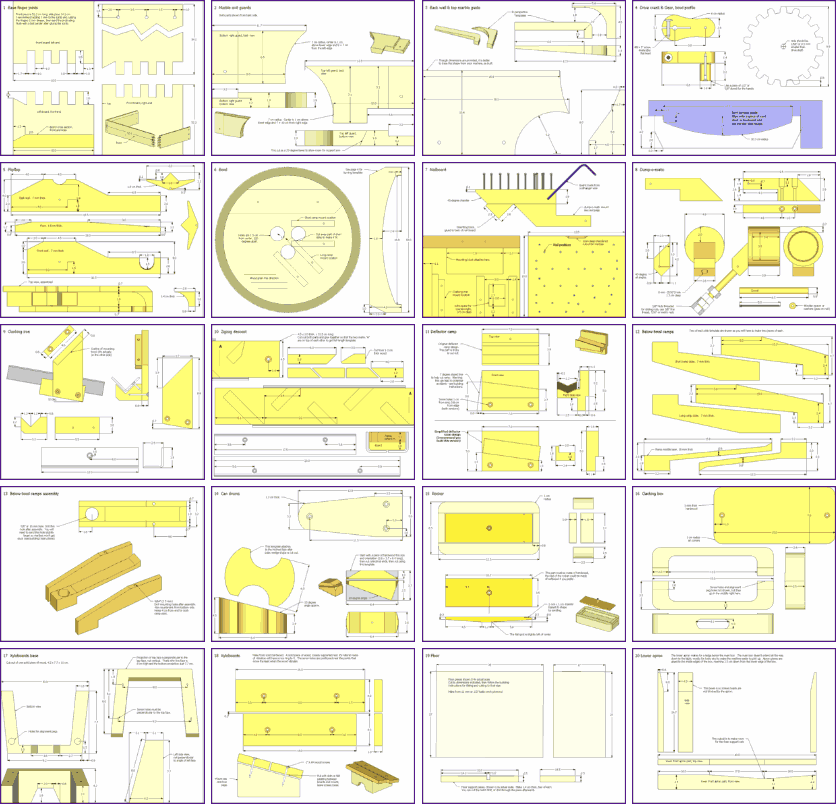

1:1 plans

The plans are all designed to print at 100% scale. The plans are meant to be cut out and glued to the pieces of wood as they are cut out.

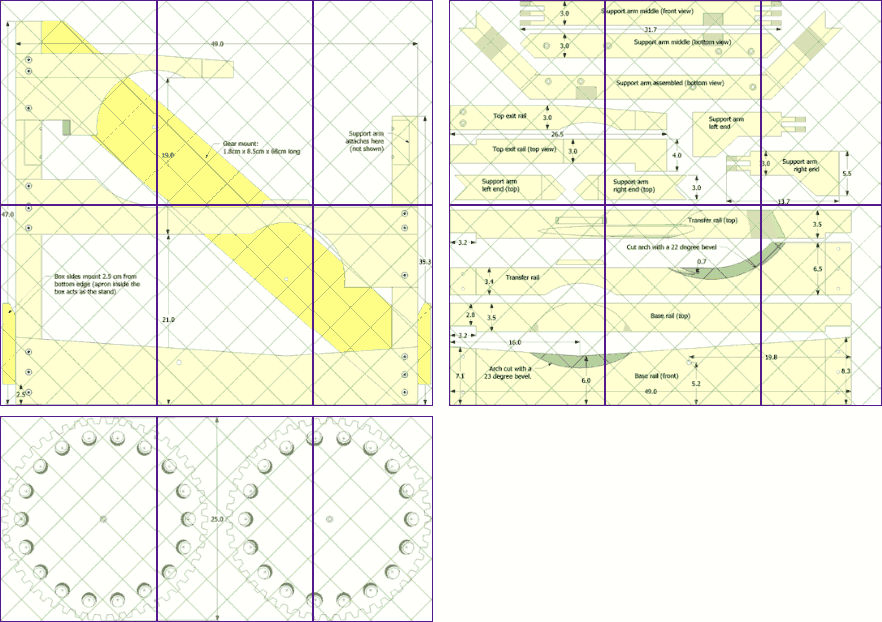

1:1 multi-page templates

There are multi-page 1:1 printable templates for the larger parts. An overlaid grid helps to align the pages after printing them on using just regular 8.5x11 or A4 pages.

You can also use the free eval version of my BigPrint program with the full images to re-segment and print the images over different sized sheets of paper.

Building instructions

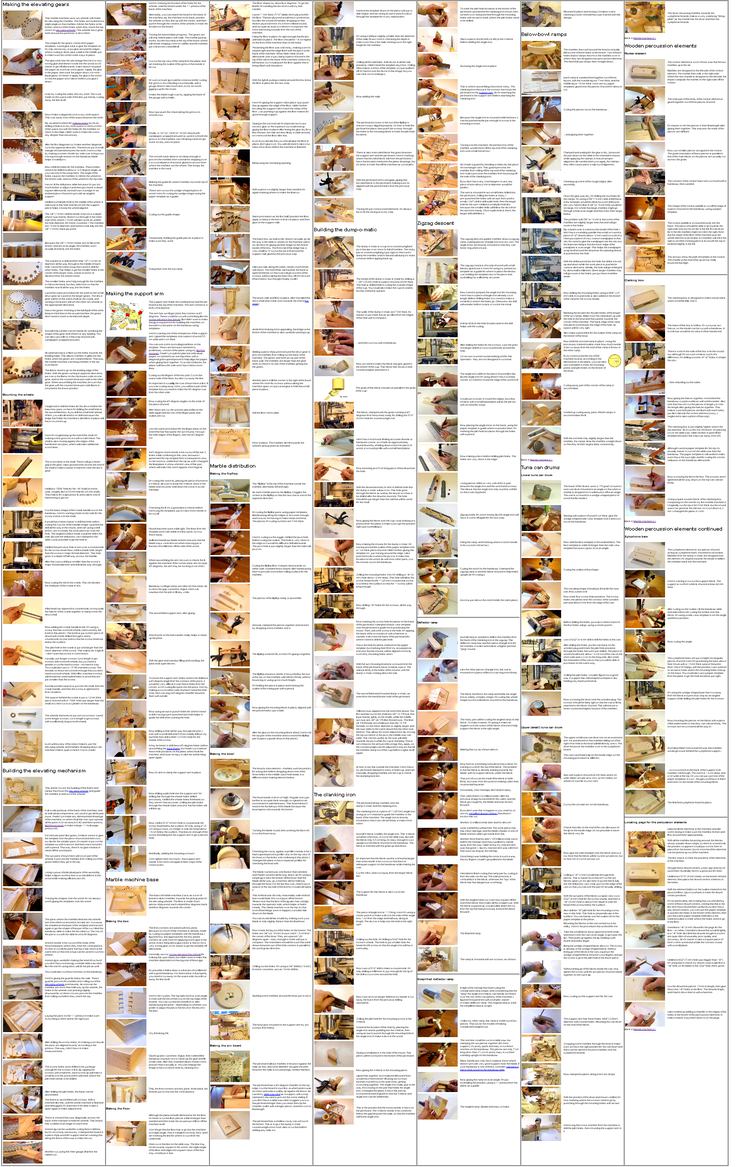

The plans also include an off-line copy of the building instructions from the web articles, with a printer optimized version.
All of the over 250 photographs can be enlarged by clicking on them.

Buy the plans
