More ergonomic bar clamp handles

While working on my new 26" bandsaw, I ended up doing tons of clamping for the wheels, frame, and table glue-ups. With all that clamping, I realized that the standard cylindrical bar-clamp handle is a terrible shape ergonomically.

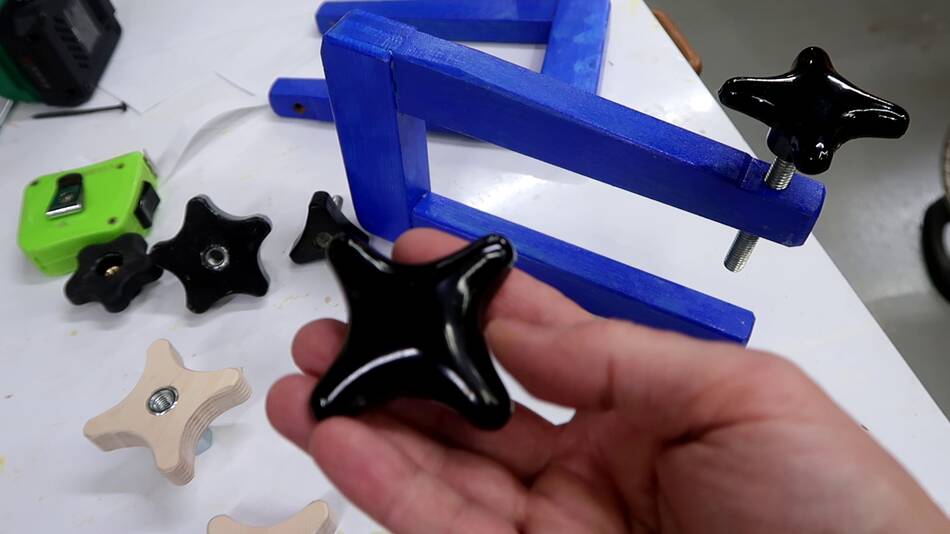

I was also using some of my new long-reach clamps, which have square star knobs on them. They have star knobs because I had these bolts with knobs already kicking around when I built them. And that shape turns out to be very easy to turn.

So I wanted to try a handle of that shape on my bar clamps.

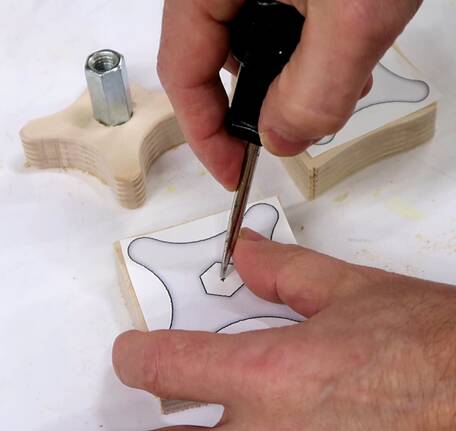

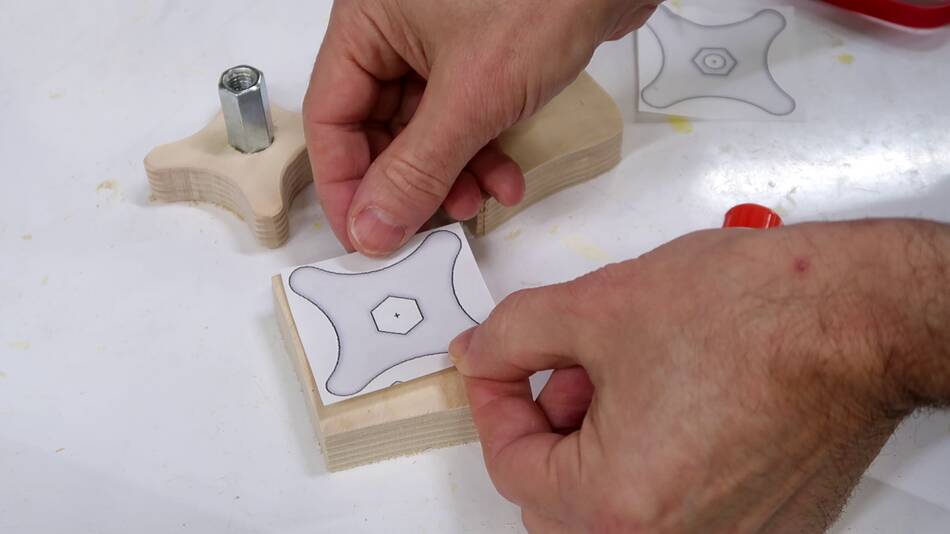

I used the same knob template that I made for my 26" bandsaw plans for the clamps.

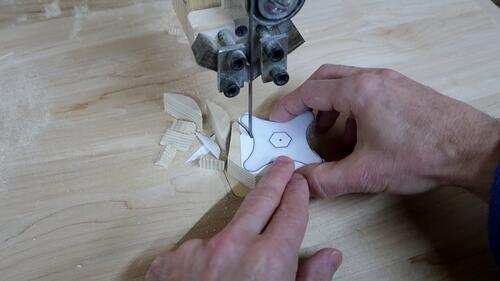

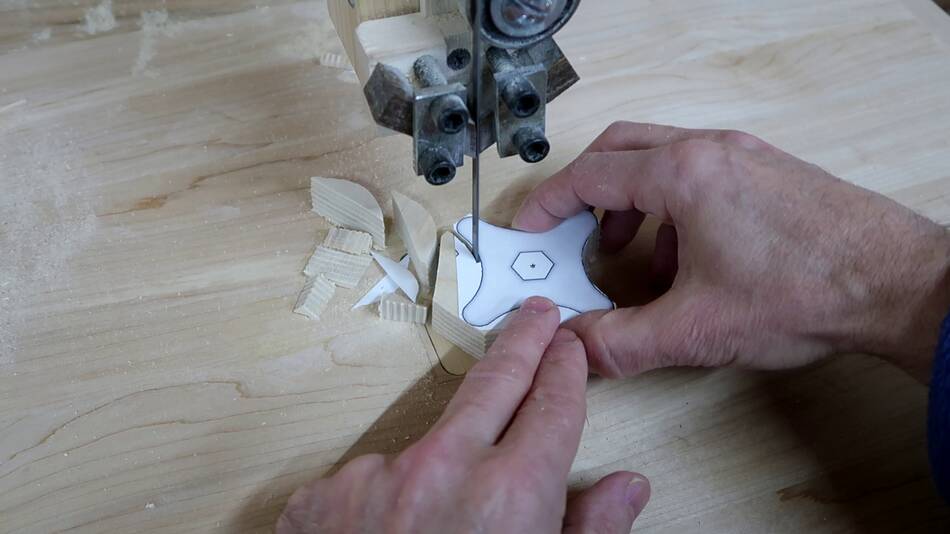

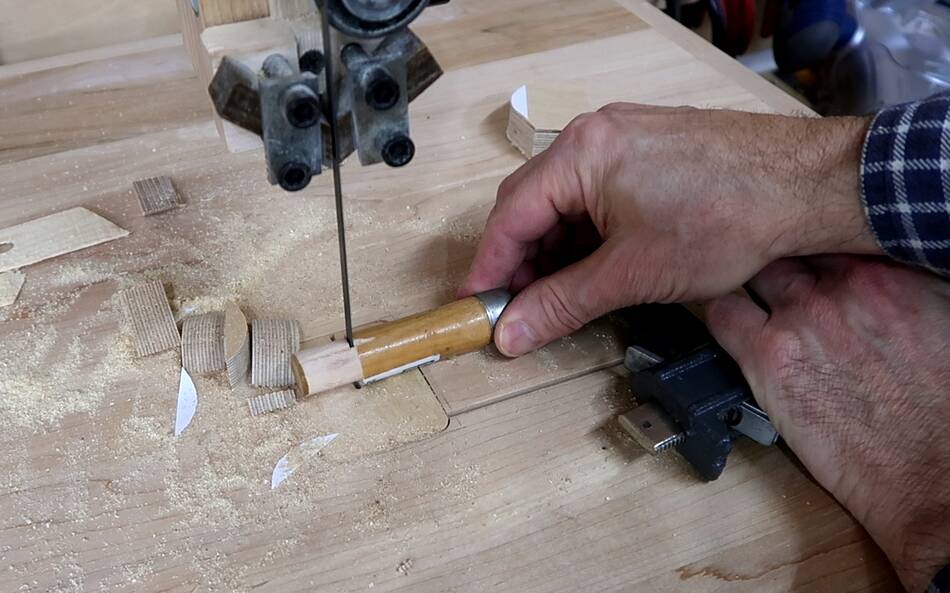

And cut them out on my yet-unfinished 26" bandsaw.

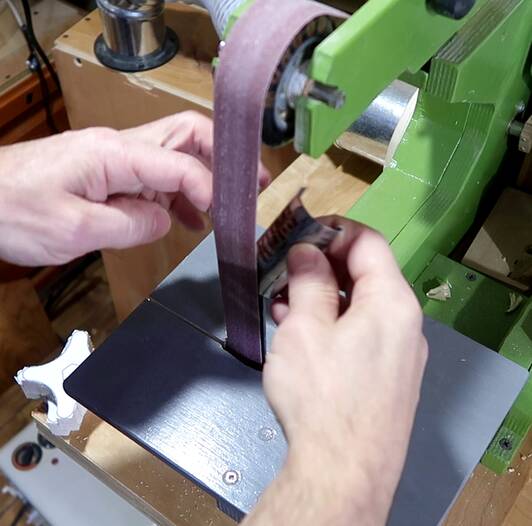

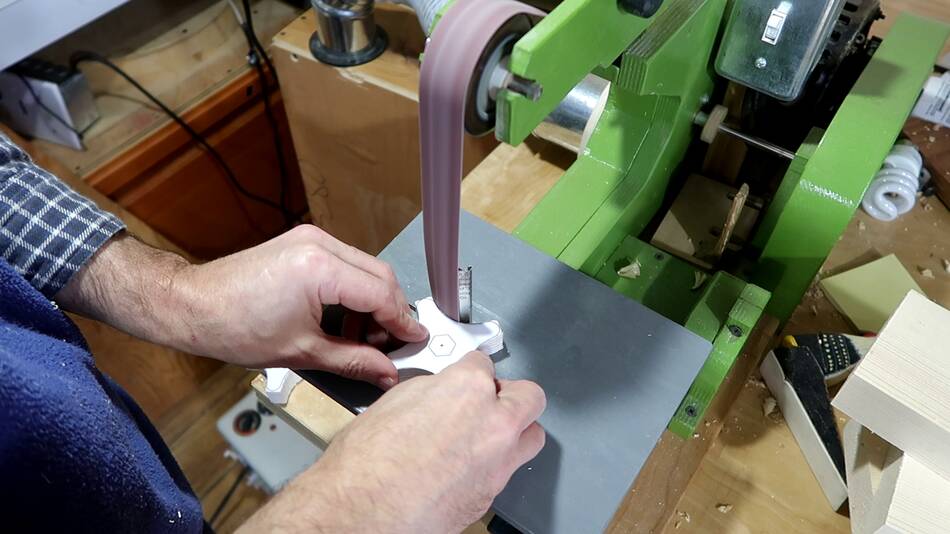

I clipped my convex-shape to the platen of my 1"x42" strip sander, then sanded the inside curve of the knobs. When sanding inside curves this way, it's important to keep moving side-to-side or the edges of the belt start digging into the wood.

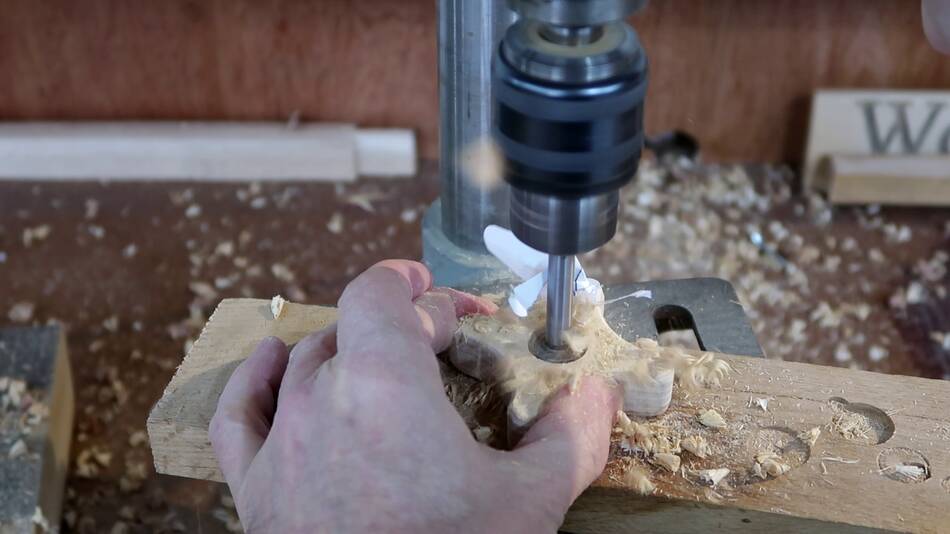

Then drilling out a 19 mm center hole.

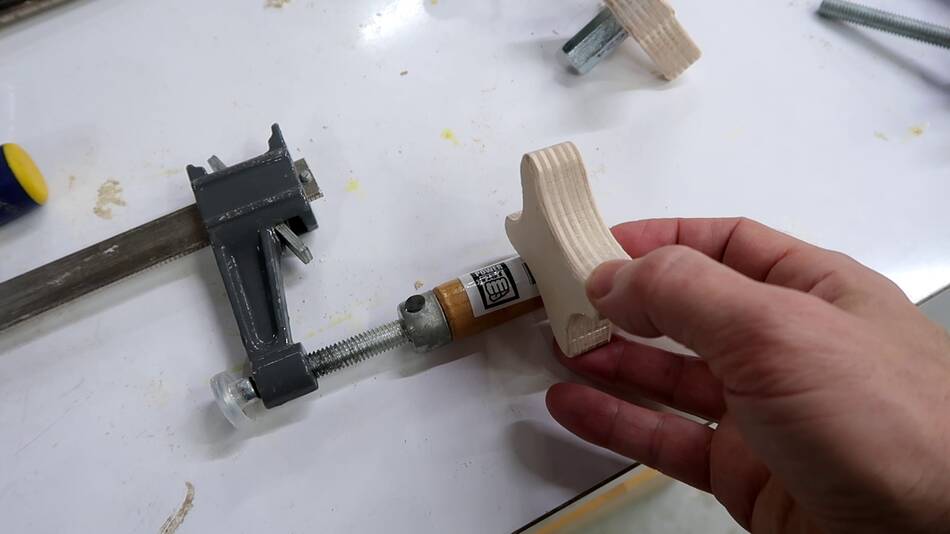

But how to fit these onto the clamp handles, which are not consistently sized, nor consistently round?

The answer is, of course, the pantorouter

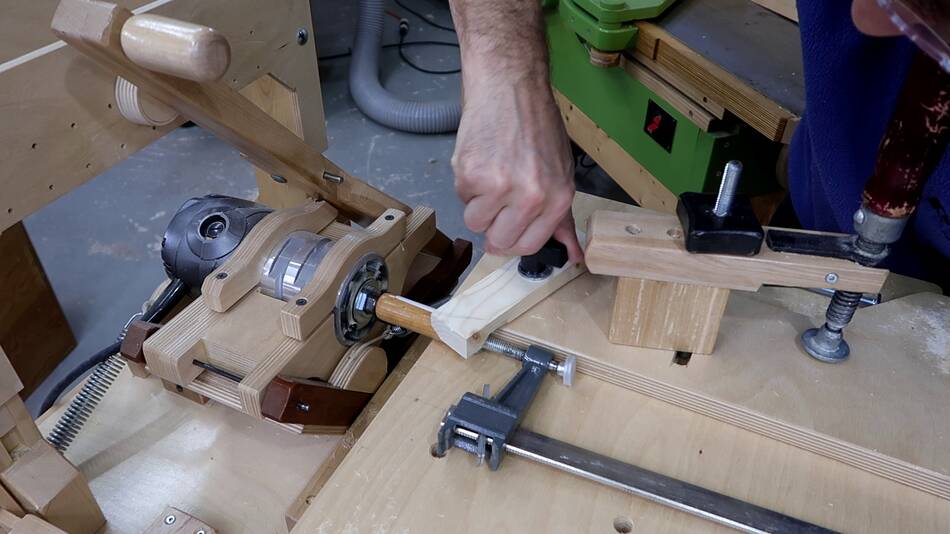

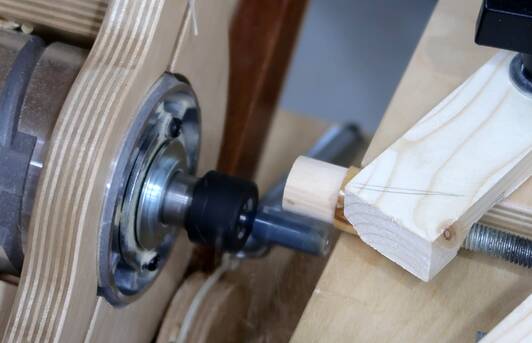

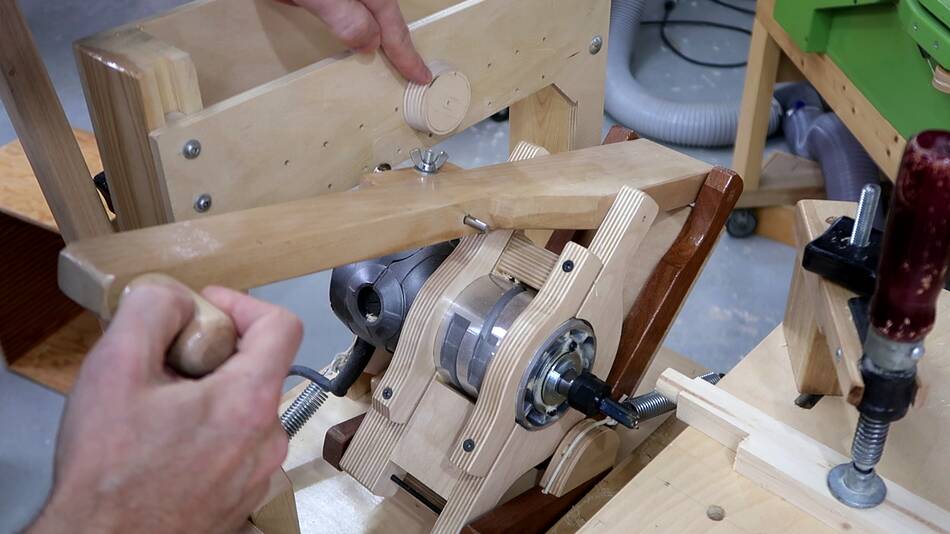

I used a circular template I made made long ago for another project and a bearing to guide the router to cut a 19 mm tenon using a 1/2" (12.7 mm) router bit.

After a test piece, I clamped one of my cheaper bar clamps onto the table and routed around it.

But I hadn't clamped it down firmly enough and it slipped while I was routing, screwing up the cut!

Fortunately, there was plenty of clamp handle left, so I just cut off the screwed up bit and cut it again.

One clamp I messed up twice, leaving just a stub of a handle. But I liked that one better, so I shortened the other ones as well.

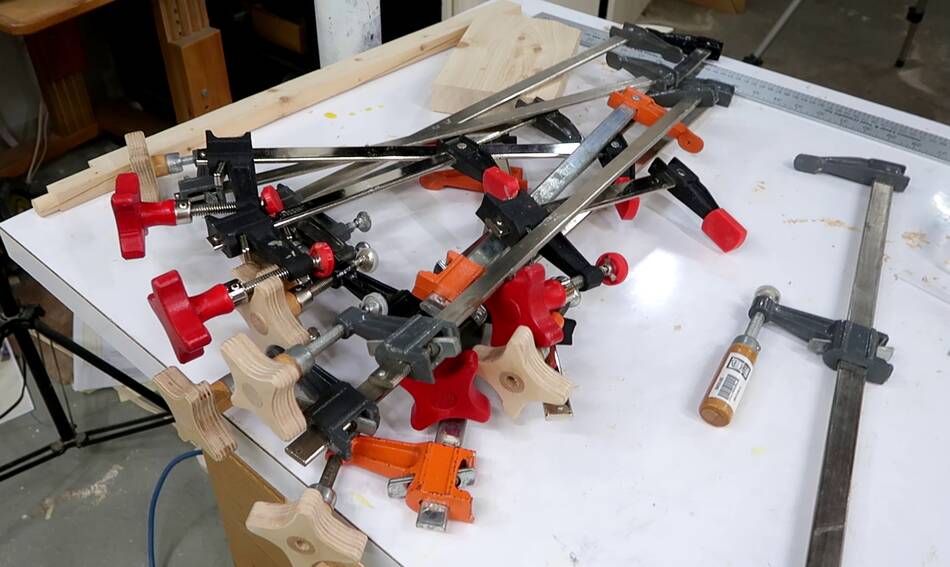

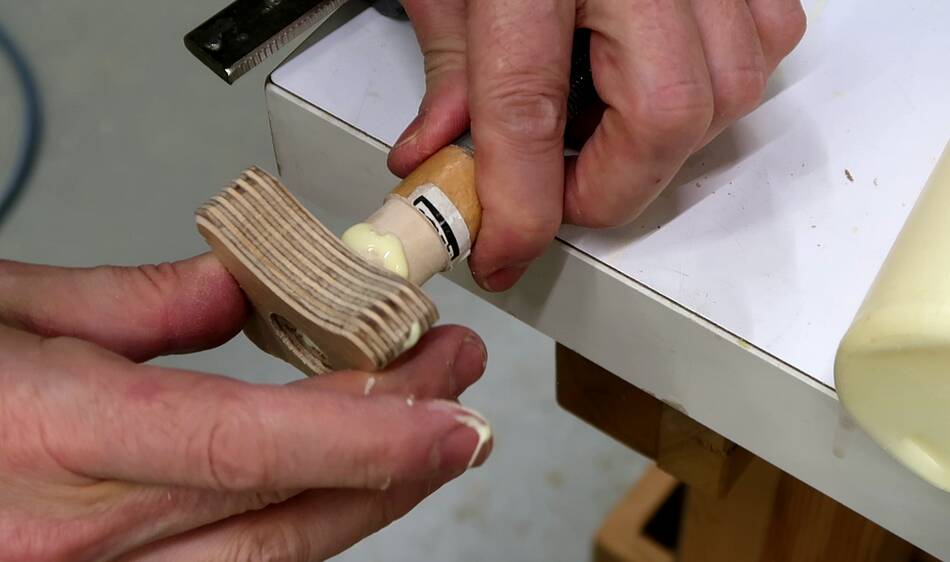

I made knobs for 12 of my clamps, including four of the nicer Bessey clamps.

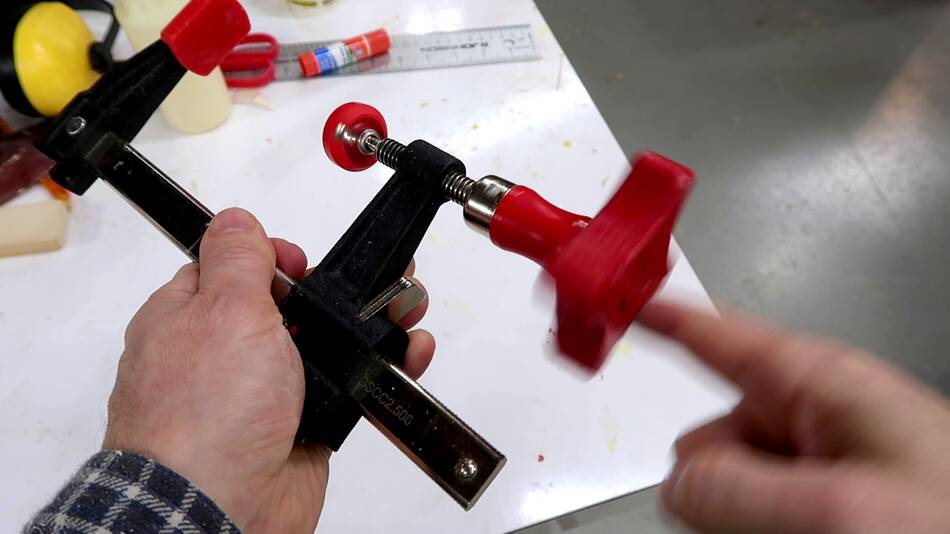

After that, A quick test to see how it feels. I hooked two clamps to each other, one with the orignal handle, one with the knob. I then tightened the one with the original handle as far as I would normally tighten it, then tried tightening the knob. It was still easy to turn. I then oiled the threads on both and repeated the test. Still, the knob was much easier to turn.

Of course, the handles might be made deliberately hard to turn to prevent over-tightening, so I will have to be careful how much I tighten them now.

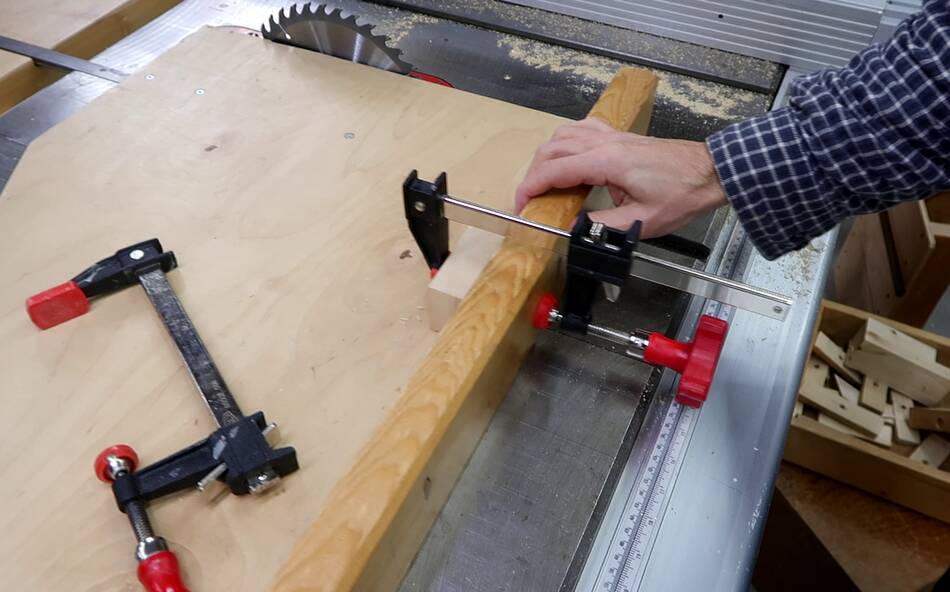

There are some down sides. For example, for clamping a stop-block to a table saw sled, the knob get caught on the edge of the saw's table. Also not ideal for tight spaces. So I won't be modifying all my clamps.

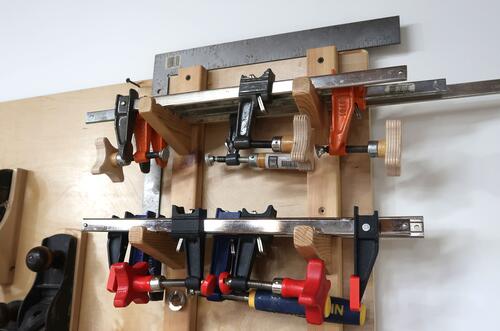

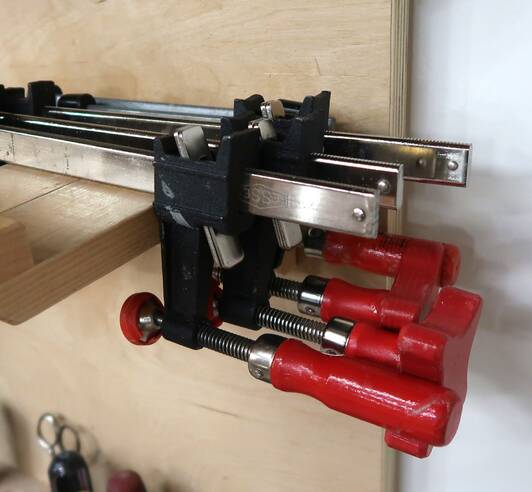

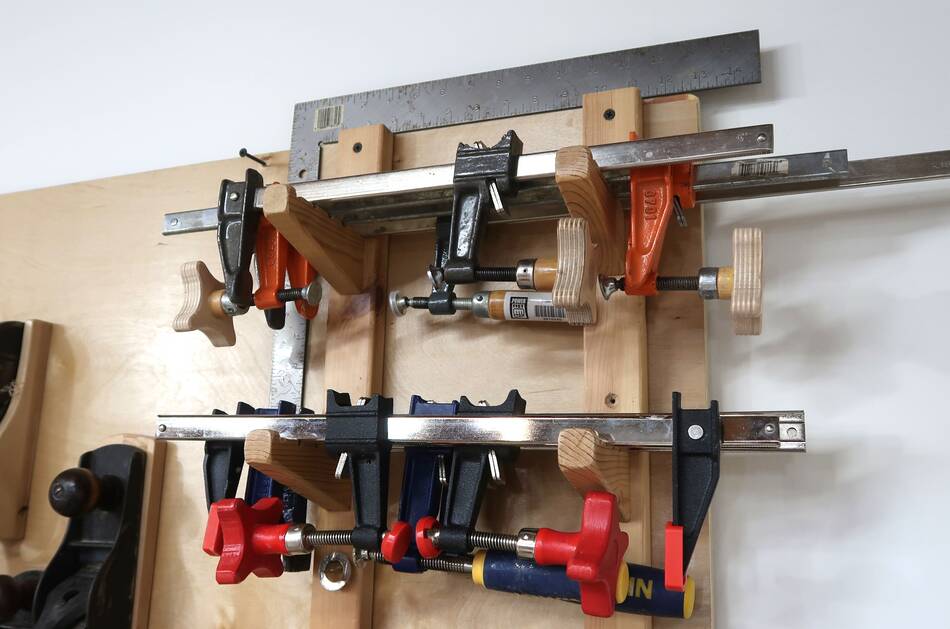

The wider knobs can also be a problem on the clamp rack, though they turned out less of a problem than I expected.

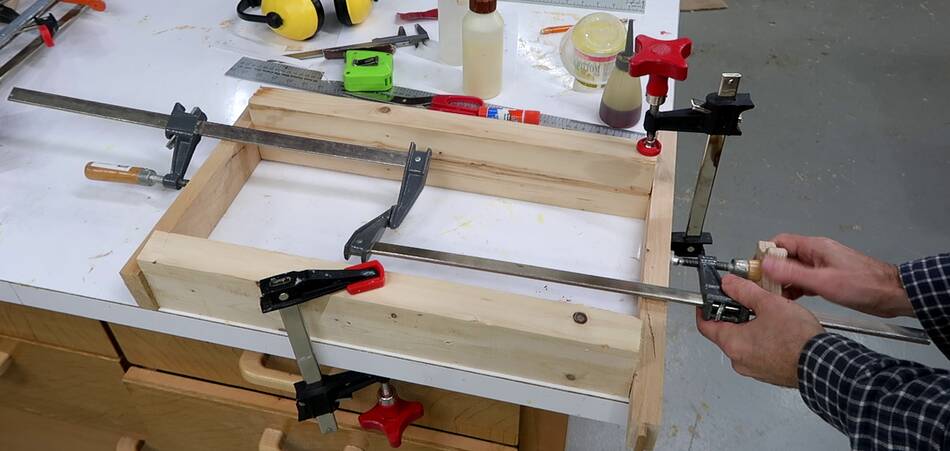

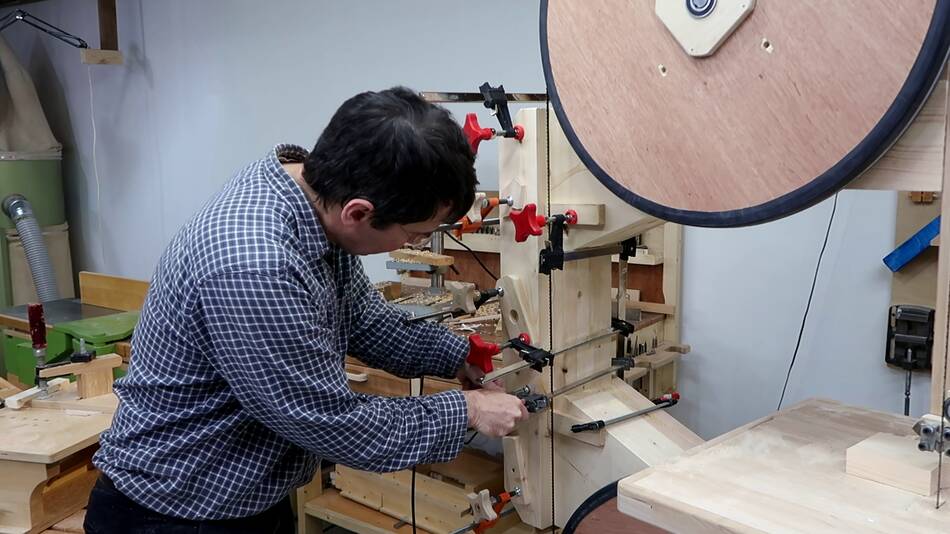

And finally, using them for an actual glue-up. I still had a piece that needed to be glued to the front of my 26" bandsaw frame.

I really like how these knobs feel in the hands and how they are much easier to operate. And I can also quickly twirl the knob with one finger if I need to back the screw up a lot.
