Wooden lathe plans for sale

The wooden lathe uses wooden sleeve bearings with smooth steel shafts, eliminating the need to find bearings. The lathe is very light and easy to put away when you are not using it.

I have produced a detailed set of drawings for this lathe. You can see a preview of the plans so you can get a better sense of what's inside before buying.

Included with the plans:

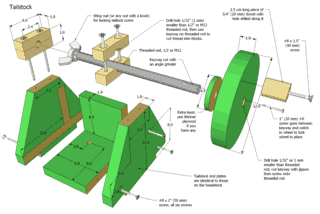

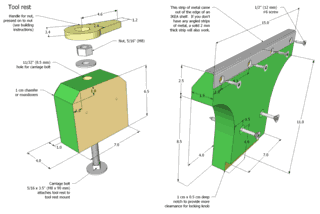

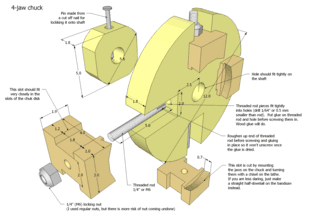

Detailed drawings of every part of the lathe

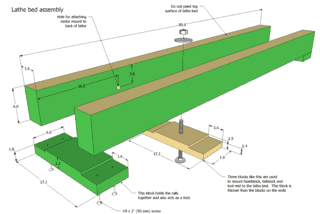

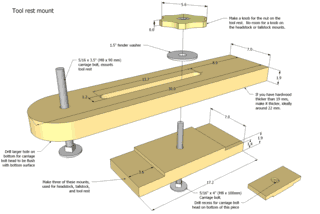

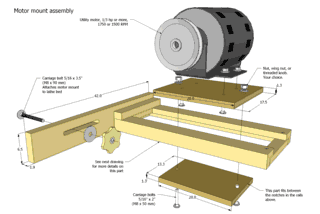

10 assembly drawings

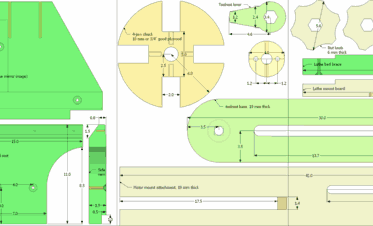

Full-scale printable templates of most parts.
Detailed building instructions for the lathe, with over 100 photos
More photos of the finished lathe
A SketchUp model of the table lathe, which allows you to view the lathe from any angle, disassemble it, or regenerate each of the views in the plans by clicking on the 'scene' tabs in SketchUp. SketchUp is a free, easy to use CAD program.

Also see the specifications

The plans include printable 1:1
cutting templates to simplify construction

See what's in the plans

The plans are in metric units, except for drill and shaft sizes, which are in imperial units. You can generate plans in imperial units simply by changing the units to "imperial" in SketchUp under "model info", but the units will not work out to even numbers like they do in metric.
Please also consider these important safety notes

Cost: $12

On payment, you will be able to download your plans immediately.
The plans are a 14 megabyte zip file (your computer, Mac or PC, already knows how to open zip files) A download link will also be emailed to you automatically. Some email programs may treat this email as spam, so please check your spam folder if you did not receive the email.

You can checkout with your credit card or PayPal account.

If you encounter any problems with the download link or email, feel free to contact me at:
