Pantorouter plans for sale
These plans are for my revised (2018) Pantorouter, with improved plunge stops and a vertically sliding template holder.This pantorouter is for routers with cylindrical body up tom 89 mm diameter and for palm routers. For plunge routers, please see my Pantorouter XL plans. You can see a preview of the plans so you can get a better sense of what's inside before buying.

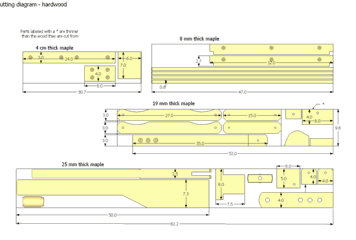

- Detailed drawings of every part of the Pantorouter

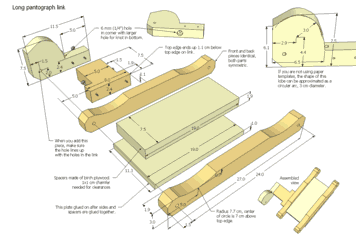

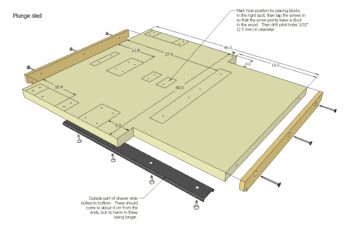

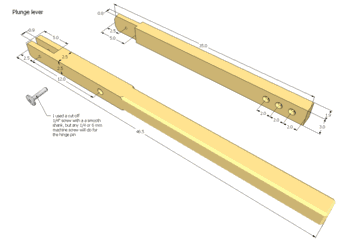

- 23 drawings and illustrations of the parts

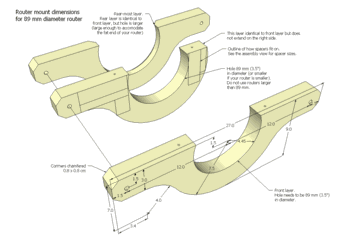

- Full-scale printable templates of many parts, including mounts for a 3.5" diameter router and 71 mm diameter "palm router".

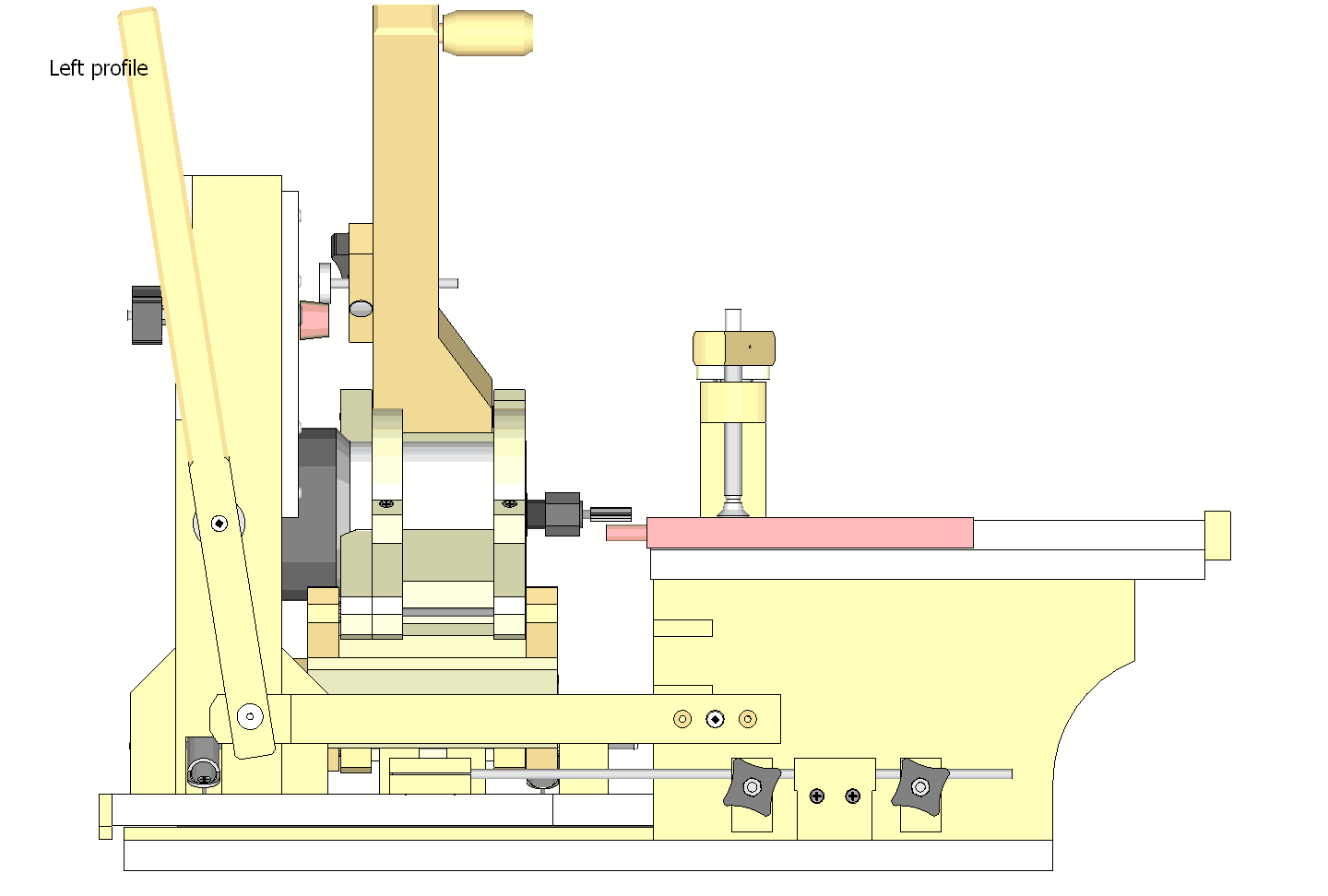

- Full-scale printable drawings of the assembled machine.
- Detailed building instructions for the machine, with over 200 photos
- More photos of the finished Pantorouter

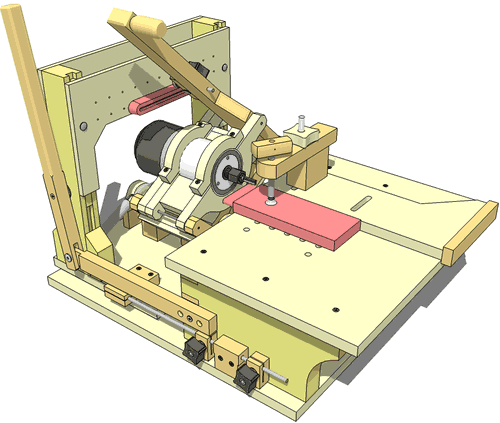

- A SketchUp model of the Pantorouter, which allows you to view the Pantorouter from any angle, disassemble it, or regenerate each of the views in the plans by clicking on the 'scene' tabs in SketchUp. SketchUp is a free, easy to use CAD program.
The plans are in metric units, except for drill and shaft sizes, which are in imperial units.
You can generate plans in imperial units simply by changing the units to "imperial" in SketchUp under
"model info", but the units will not work out to even numbers like they do in metric.
Please also consider these important safety notes
You can also download the plans for the original (2010) pantorouter. A French language version of the original (2010) plans is also available. After buying the plans, you can choose to download the 2018 version, 2010 version, or 2010 French version (or all three). French translation provided by Alain Vaillancourt (thewoodpecker.net)
You can also buy a pre-built all metal pantorouter
On payment, you will be able to download your plans immediately.
The plans are a 10 megabyte zip file (your computer, Mac or PC, already knows how to open zip files)
A download link will also be emailed to you automatically.
Some email programs may treat this email as spam, so please check your spam folder if you
did not receive the email.
| Pantorouter Plans | Pantorouter Plans With Pantorouter XL Plans |
|||
|
|
You can checkout with your credit card or PayPal account.
You can buy the pantorouter and pantorouter XL plans together for only $3 more than one plan individually. |
||
| Cost: $20 | Cost: $20+$3 |
If you encounter any problems with the download link or email, feel free to contact me at:
