Apple grinder plans
An apple grinder is perhaps the most important part of extracting juice from apples.
While a press is important for separating the juice from the pulp, the actual extraction
happens in the grinder.
This apple grinder is designed to be buildable from readily available wood without
the need for any metal parts other than screws.
The grinding action of this machine is such that most of the juice can be extracted
from the resulting pulp just by wrapping it in a dishcloth and squeezing it by hand.
The plans include:
More about building this apple grinder

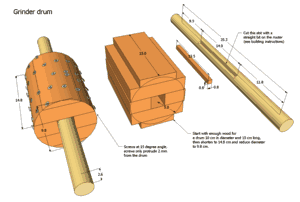

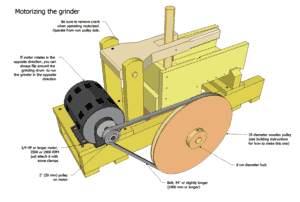

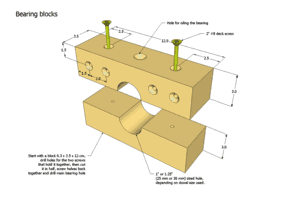

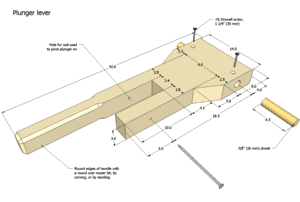

- Detailed drawings of every part of the grinder

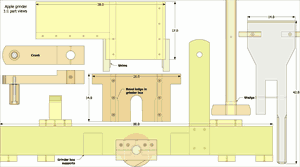

- A full-scale 1:1 drawings of all the parts, so you can easily check your parts
without the need to measure.

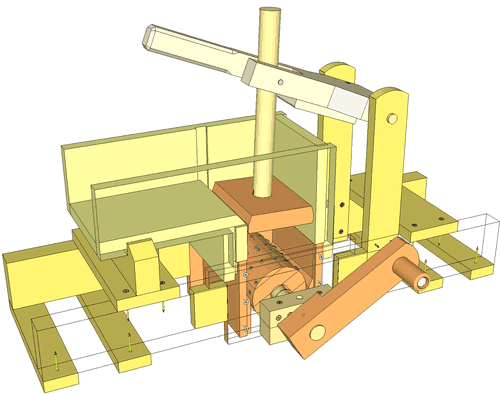

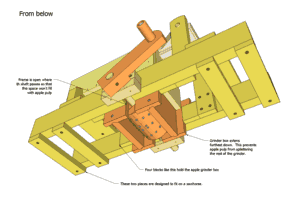

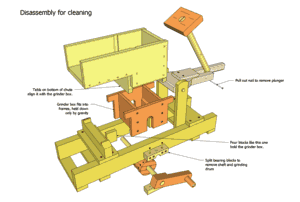

- Dimensioned 3D views and assembly drawings
- Detailed instructions on how to build it, with over 60 photos
- Materials list
- A SketchUp model of the grinder, which allows you to view the grinder from any angle, disassemble
it, or regenerate each of the views in the plans by clicking on the 'scene' tabs in SketchUp.
SketchUp is a free, easy to use CAD program, downloadable from Google.
See what's in the plans
The plans include 1:1 patterns
to print out over multiple pages
The plans are in metric units, except for drill and dowel sizes, which are in imperial units.
You can generate plans in imperial units simply by changing the units to "imperial" in SketchUp under
"model info", but the units will not work out to even numbers like they do in Metric.
Please also consider these important safety notes
On payment, you will be redirected to the download page after a five second delay.
A download link will also be emailed to you automatically. The plans are a 6 megabyte zip file
(your computer, Mac or PC, already knows how to open zip files)
Use your credit card. You don't need to have a PayPal account. After clicking "Buy Now",
Just click where it says "Don't have a PayPal account?" and use your credit card.|
No credit card? see here for instructions
If you encounter any problems with the download link or email, feel free to contact me at:
