Router table and fence

Commercial router tables often have concentric inserts to handle different sizes of router bits. For my router table, I figured concentric inserts would be too hard to make, and that I could just make different inserts with different sizes of holes.

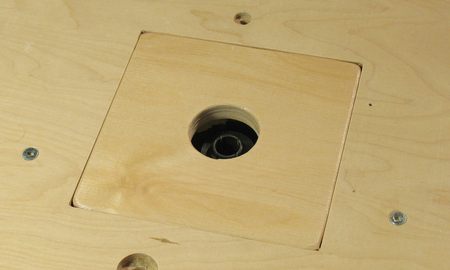

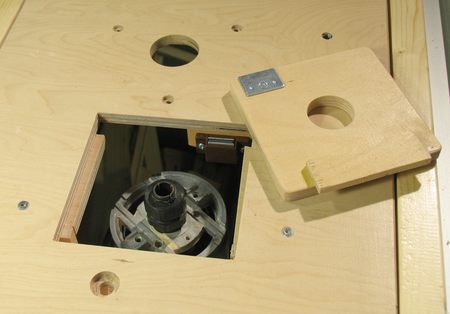

The insert is supported by two ledges screwed to the bottom of the table on the left and right side. To hold the insert down, it has a lip that slips under the table on the near side, and a door magnet on the far side. Before I added the magnet, the air blowing out of the front of the router would often lift the insert out of the table.

For the table surface, I just recycled the piece of plywood that I already had in my router table saw extension. I had previously drilled holes in it to mount two different types of router, so the piece has a few extra holes.


My first thought was to cut the hole for the insert with a scrollsaw. If I used a fine enough blade, I would get a perfectly matching hole and insert in one go, even if I didn't cut it all straight. But getting the shape right for any additional inserts would be much harder.

So instead, I decided to make the hole exactly square. To make sure I had the sides cut all straight, I cut the sides by making plunge cuts with my table saw.

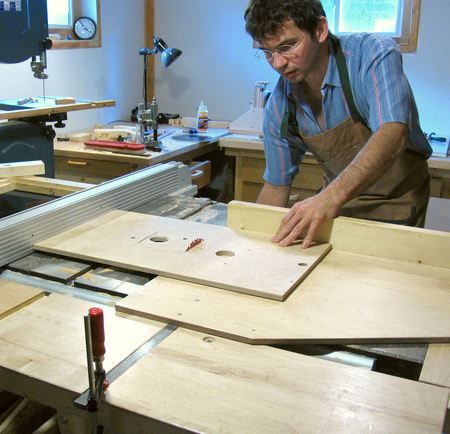

Plunge cuts can cause dangerous kickback if your work piece is not rigidly secured. I held my work piece by fixing the position of my table saw sled with a small clamp - see bottom left of the picture.

I used my smallest, 6 1/2" blade to make the plunge cuts, so that I could cut relatively deep without making my cuts overly long. I then drilled some holes in the corners to finish the cuts in the corners, and the middle part fell out. I used a carving knife to square out the corners of my cutout.



With both the insert and my router table top made from the same thickness of material, getting the insert to be flush with the table was a simple matter of attaching some pieces of wood to the bottom of the table to act as ledges.

And with my cutout being a 12x12 cm square, making more inserts that fit exactly is straightforward as well.

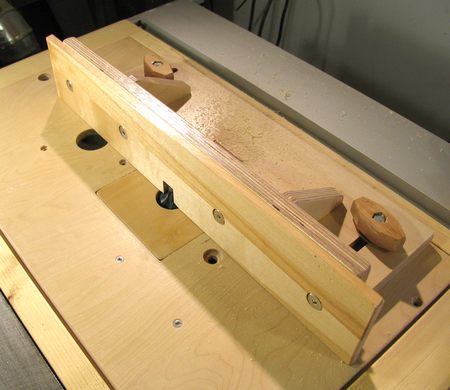

I also built a fence to attach to the top of the router table. I had previously always used my table saw fence to hold a temporary router table fence, but I figured while I was at it, I might as well make a nice fence with a cutout in it for the router bit. My design was inspired by Uli proppe's router fence

The front of the fence is a sacrificial piece of wood. I may replace this with a split fence eventually, but I figure I'll use this one piece fence at least until I end up cutting too much out of this one.

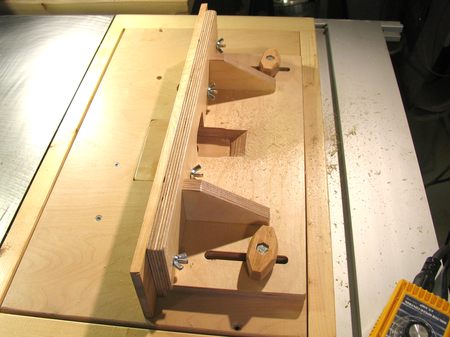

The fence is held down by two screws, which go into T-nuts on the bottom side of my table. The sacrificial fence is held to the front with some screws held with wing nuts.

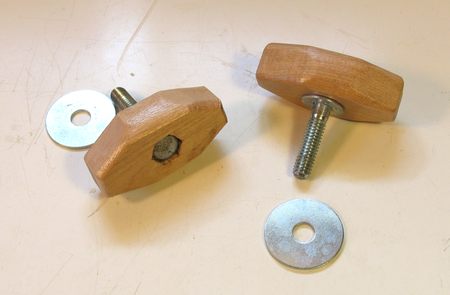

The knobs are just hex bolts mounted in pieces of hardwood. The heads of the bolts are mounted in holes that I chiseled hexagonal to match the screw heads. I also glued a small washer to the bottom of the knobs. A larger washer in turn is used to span the slots that the mounting knobs go through.

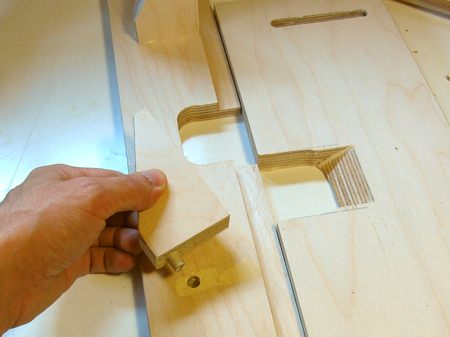

The router fence itself is joined relatively simply. The base is rabbeted into the front side, and the two braces are doweled into the front with just one dowel, and butt joined to the base. I don't expect this fence to get a lot of abuse, so I figure the butt joints should hold.

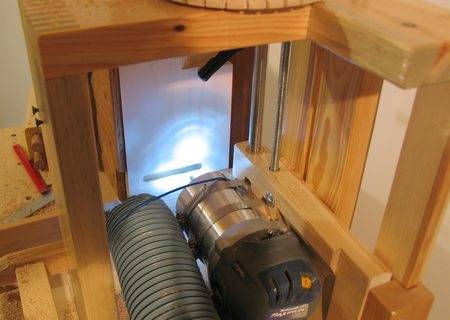

I cut the slots for the knobs with my home-made slot mortising machine. I'm very proud of my slot mortiser and use it every chance that I have!

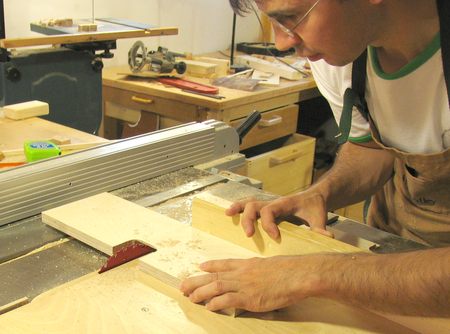

The only other slightly tricky aspect of the router fence is the bevel I cut into the base at the back of the cutout for the router. I figured if I beveled it at the back, it would be easier for the router to eject the chips out that way, without them getting stuck. I cut this bevel by passing the cutout slowly side to side across my table saw blade, moving my work piece forward by about a millimeter each time.
