Quick dowels with a half-round router bit

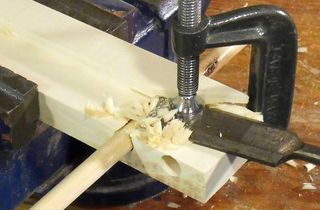

Even though I already had a pretty good method of making dowels using the pencil sharpener method, I wanted to experiment with making dowels with a half-round router bit.

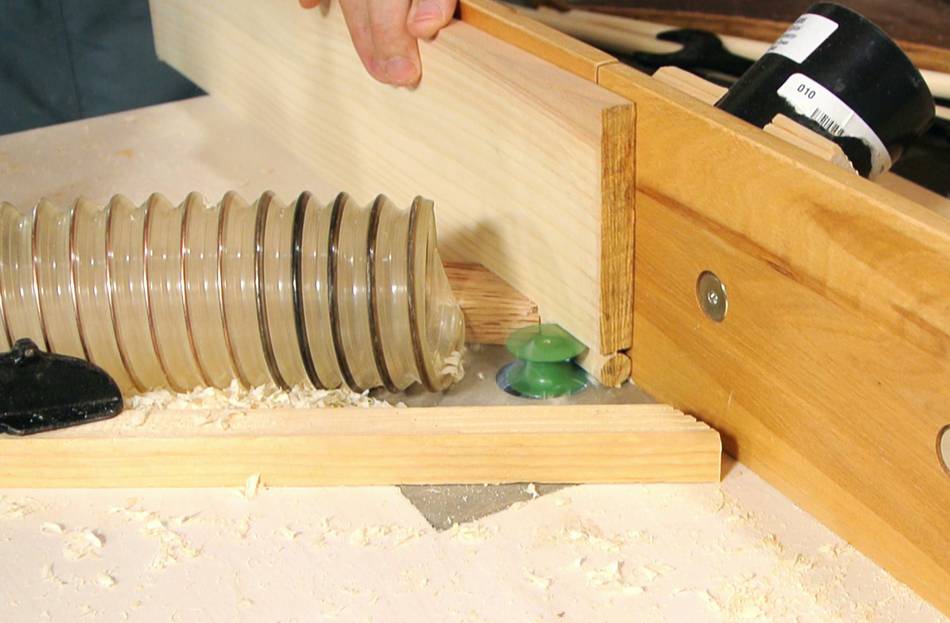

The idea was to route a half-round into the edge of a board from either side, leaving just a dowel in the middle.

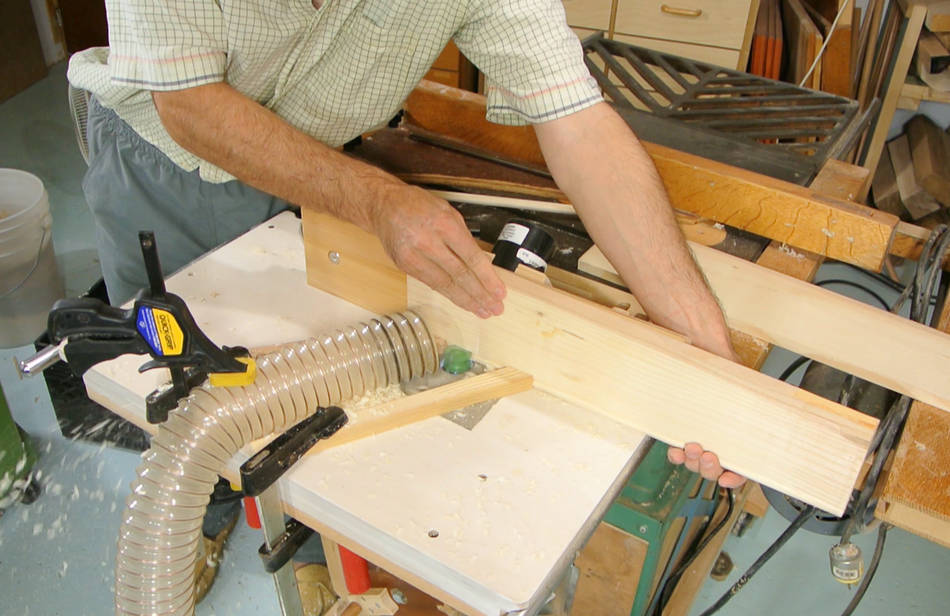

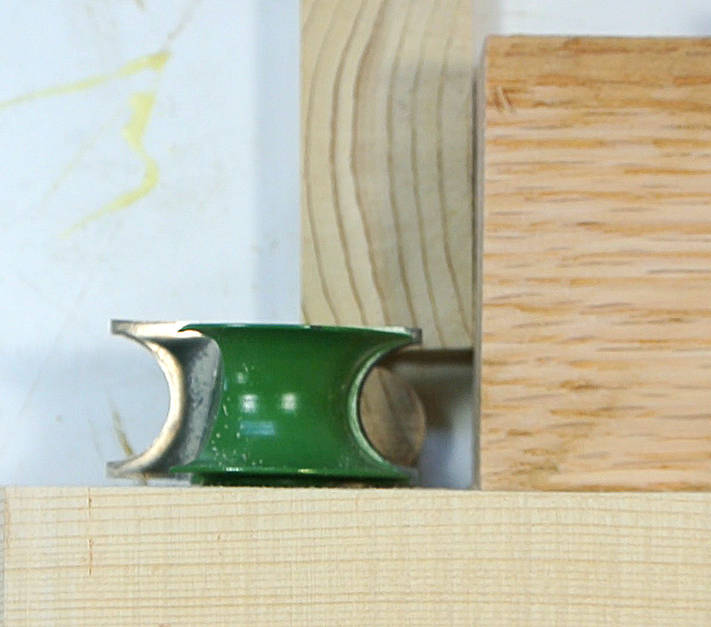

With the router bit opposite to the fence, the thickness of the stock would not matter that much. I'd just have to push it across, flip it, push it across again, and grab the dowel as it came out.


The elegant thing about this was supposed to be that the exact thickness of the board I started with wouldn't even matter. But that logic turned out to be flawed.

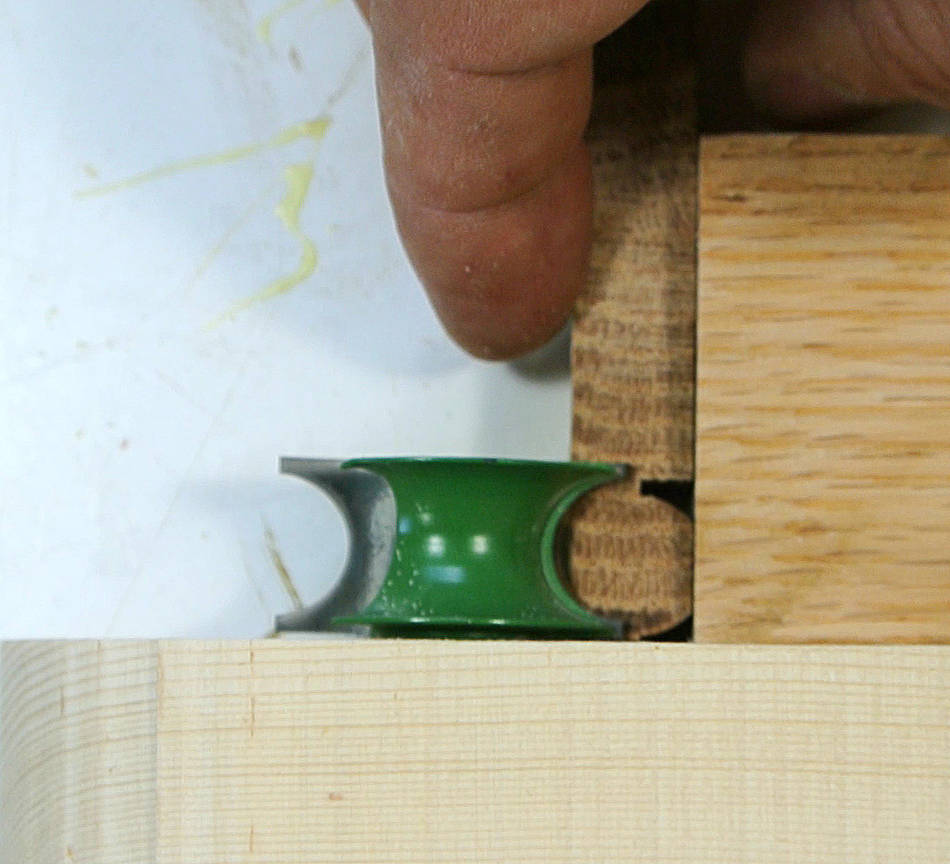

Imagine routing a board that is too thick (at left), then flipping it over and routing it again. This time, the not-routed part of the board would offset the stock so that the router cuts away too much of the remaining dowel.

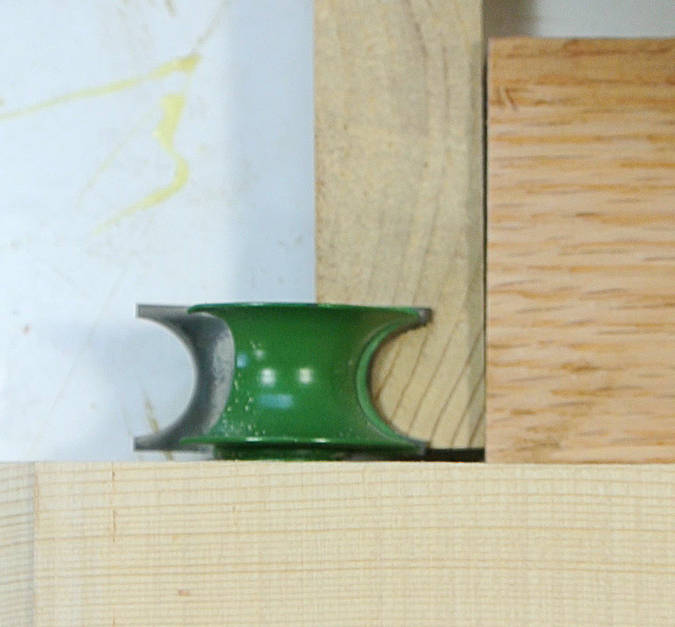

Similarly, a board that is slightly too thin would cause the two router cuts to be too far apart, making a dowel with a flat spot on either side and too fat in the middle.

So this method does require that the board be exactly the same thickness as the size of the dowels. Not as elegant as I had hoped.

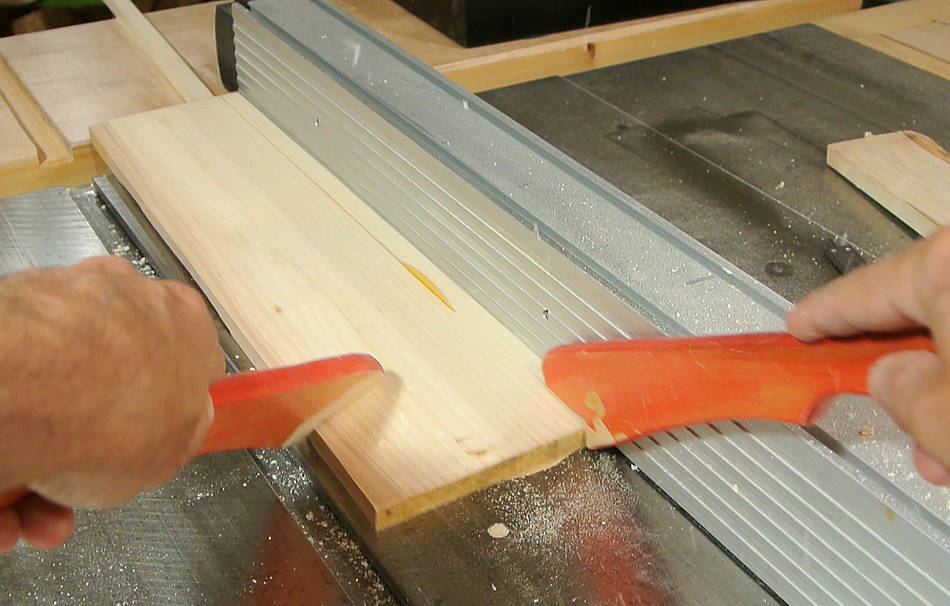

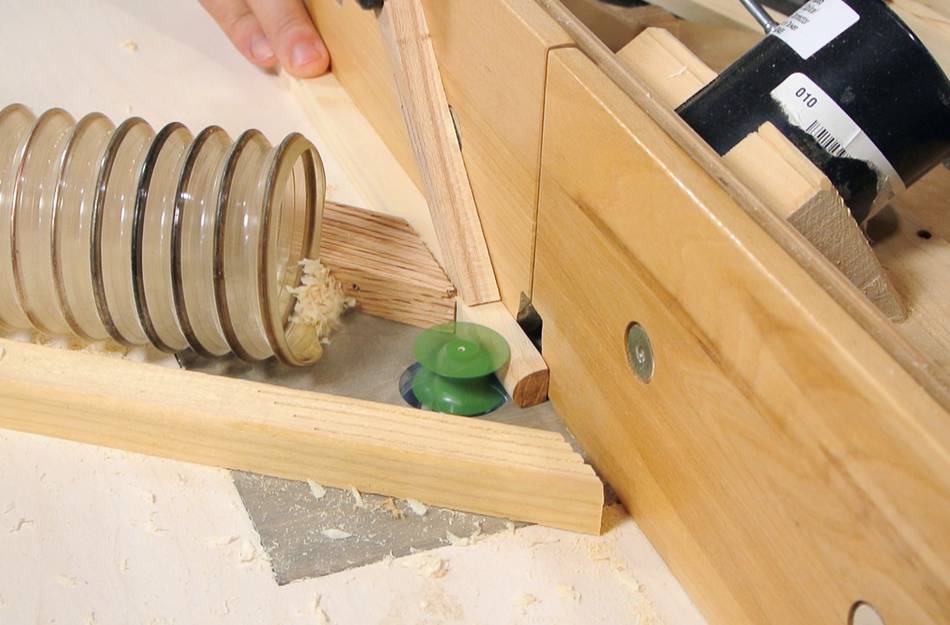

So I figured ripping square sections, just slightly larger than the dowels would be a better way to go.

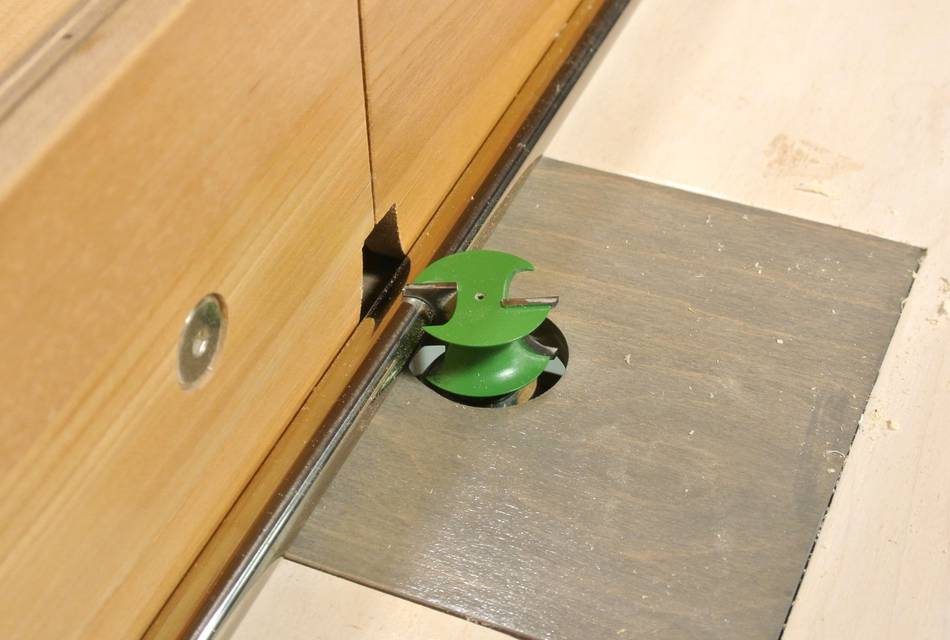

I set up the router fence using a 1/2" round steel rod to get the fence in exactly the right position. The shank of a drill could also be used.

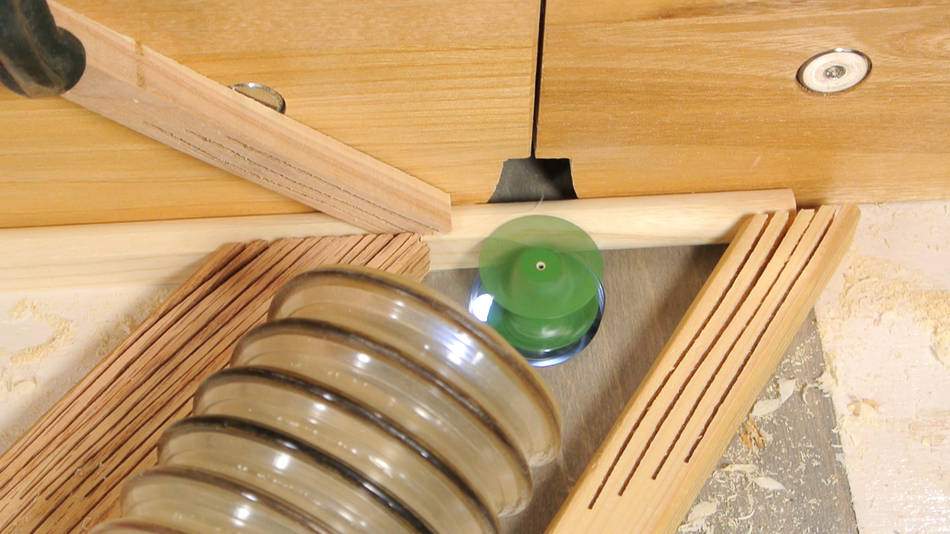

I used three featherboards to hold down the stick. The featherboard on the outfeed keeps the dowel from getting pulled into the cutter once it gets past the infeed featherboard.

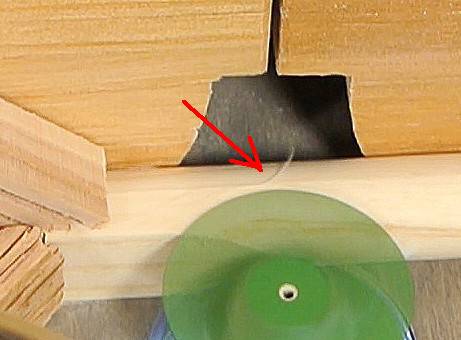

Depending on how the second pass is made (sometimes, the dowel ends up slightly rotated), there may be a slight wisp, or a ridge on one spot on the dowel.

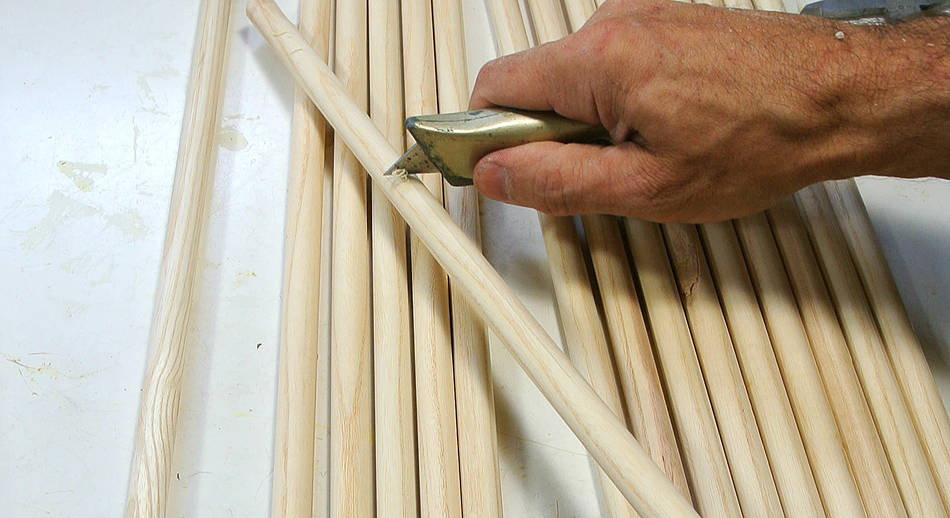

The ridge, if any, comes off easy enough with one stroke of a utility knife over the edge.

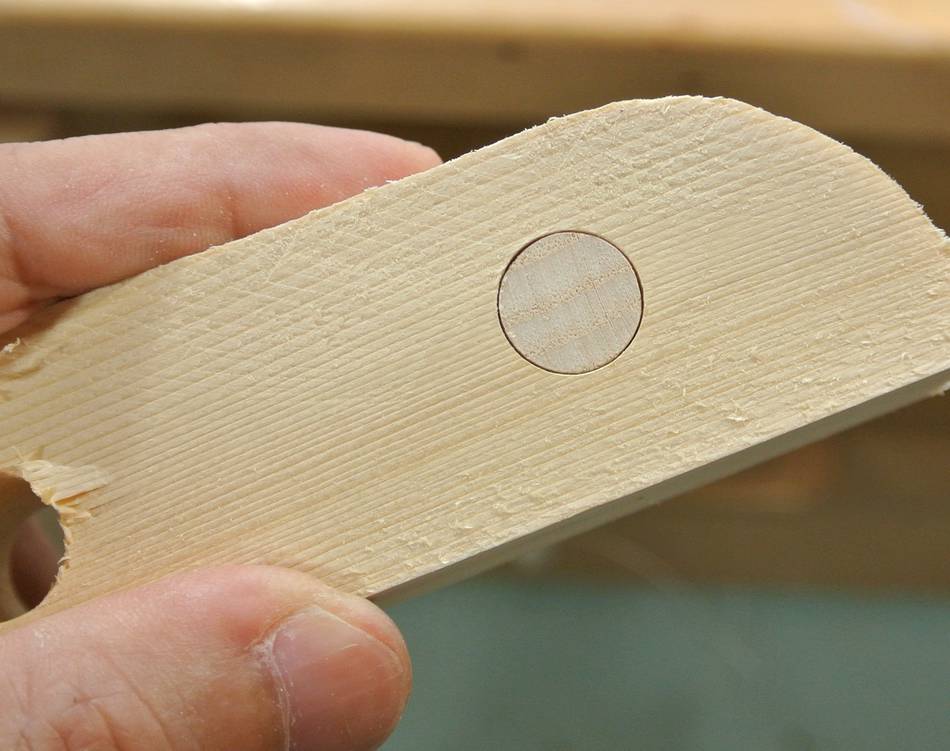

Taking measurements, my 1/2" (12.7 mm) dowels all came in the range of 0.490" to 0.500". (0 - 0.25mm undersized) Close enough, certainly more accurate than most dowels from most home centers.

A downside of this method over the pencil sharpener method is that I can't tweak the size of the dowel. I'm stuck with whatever size half-round bit I have.

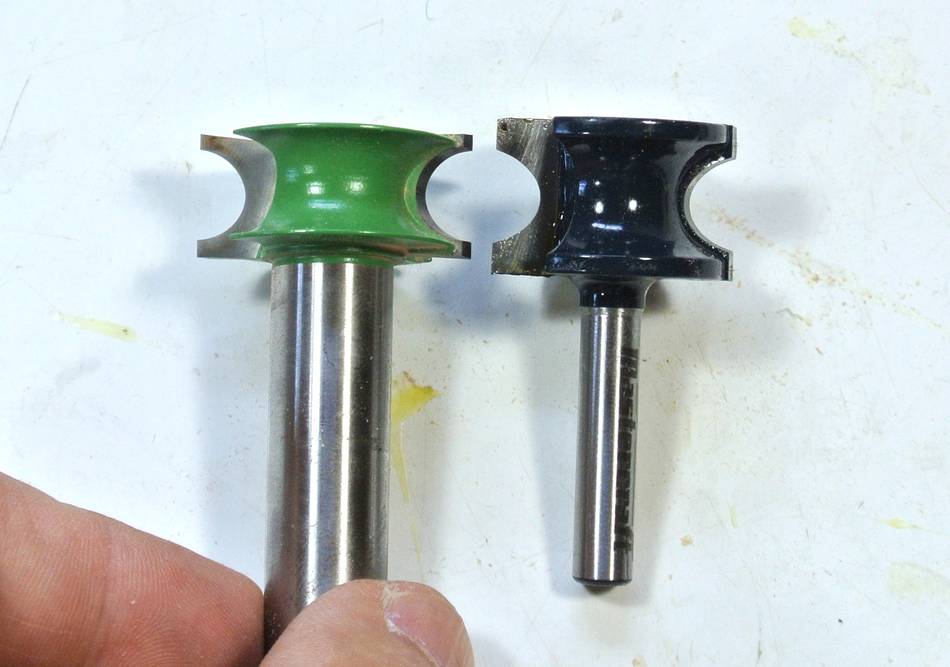

It does require a high quality router bit to begin with. At left, a 3/8" half-round bit from Lee Valley tools, right, a Mastercraft 3/8" bit from a 40-bit set I bought on sale at Canadian Tire. The Mastercraft bit's profile is more of a parabola than a semicircle, so it's not suitable for making dowels.

That said, the 40-bit set from Mastercraft cost less than the half-round bit from Lee Valley, so I can't really complain.
