More suck from a shop-vac: Effect of hoses on dust collectors

When I compared a shopvac to the blower in my router table I was surprised how much lower the airflow from the shopvac was. I thought my shopvac would move more air, maybe it was the hose that was slowing it down too much. So I wanted to do some tests.

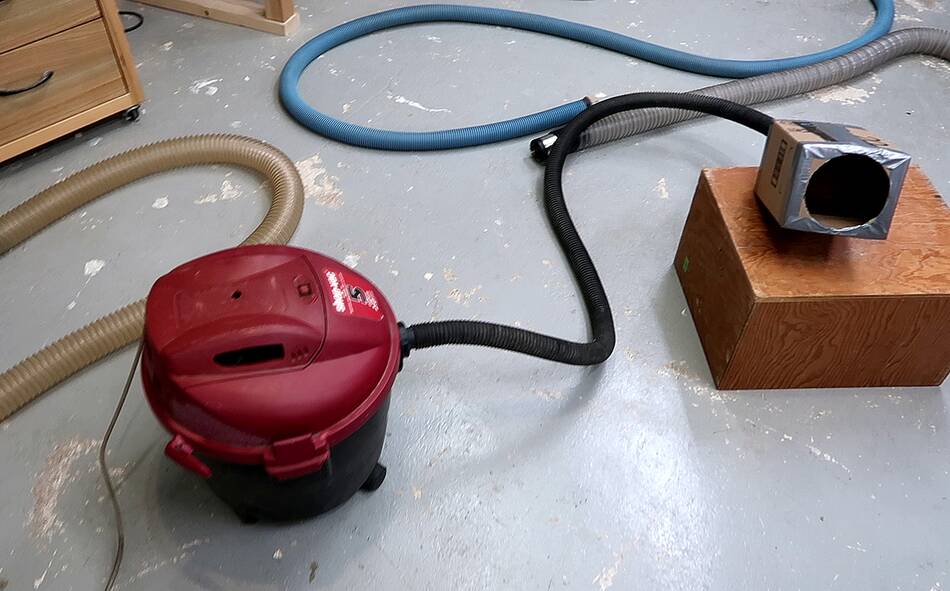

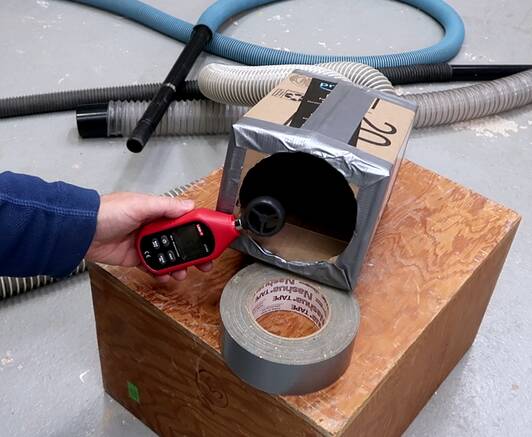

I cut a 12 cm diameter hole in a cardboard box so I could measure the wind speed into the box as I sucked air out the other end. First test with the standard shopvac hose, just 2 m long including the straight part at the end.

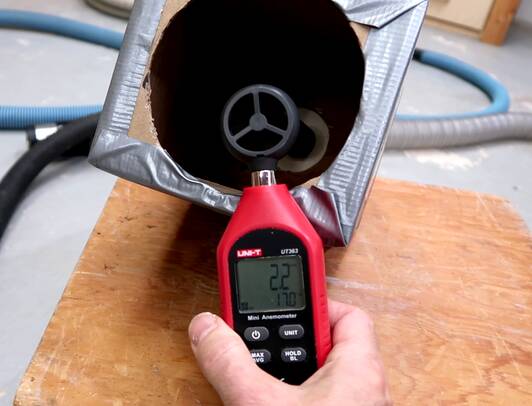

My anemometer averaged 2.2 meters per second. Across a 12 cm circle, each meter per second conveniently worked out to 24 CFM (cubic feet per minute), so 2.2 m/s was 52 CFM.


Next I tested the 3.9 meter long blue pool hose that I normally use. Even though that hose is much longer, I got 2.9 m/s, or 69 CFM. The hose has a slightly larger inner diameter, and that more than makes up for the fact that it's almost twice as long.

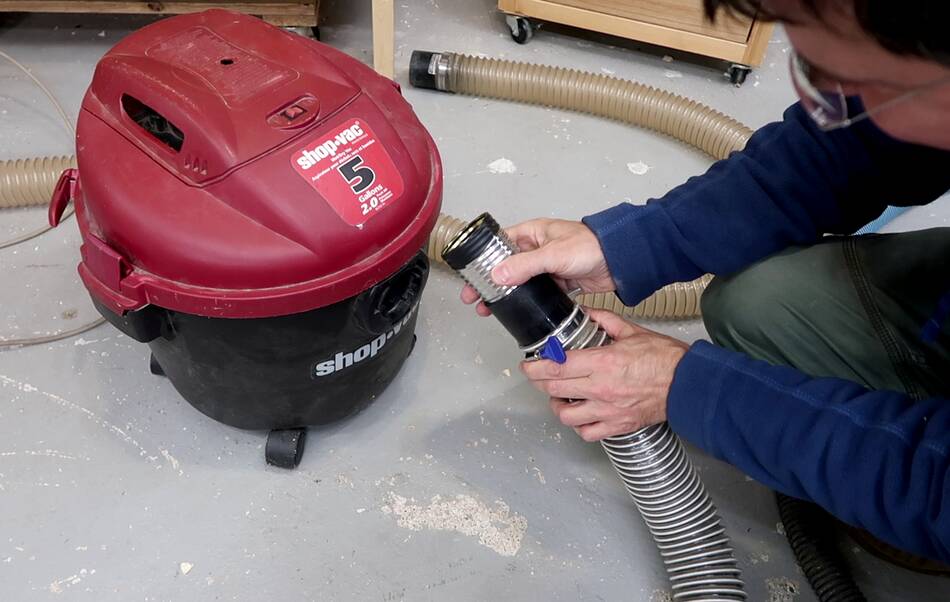

Then I tried a 2.5" dust collector hose. The hose connector fitting fits neatly into the inlet, but not far enough to hold it in place, so I made an "adapter" sleeve out of some soup can sheet metal.

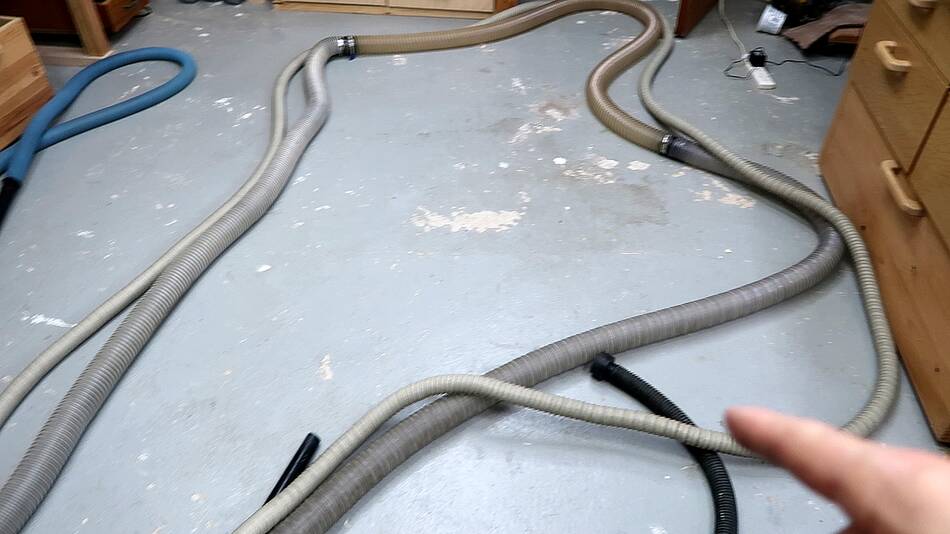

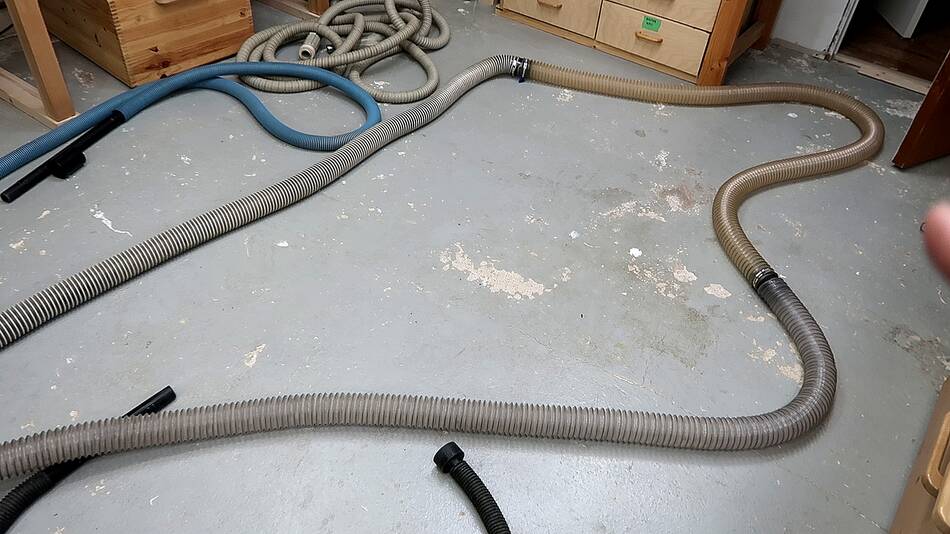

With the 10' (nominal length, actual length a bit shorter) 2.5" (63 mm) dust collector hose, I got 3.4 m/s or 81 CFM. A considerable improvement over the standard hose. I also tried it with three 10' lengths of 2.5" hoses together, and I still got 64 CFM. At four times the length of my shopvac hose, I still got more airflow through them!


Some people like to use long wind-up hose reels with a shopvac. I don't have one, but I figured it would be interesting to test with a long central vac type hose. The hose we have is 8.8 meters long. With that hose, I got just 35 CFM.

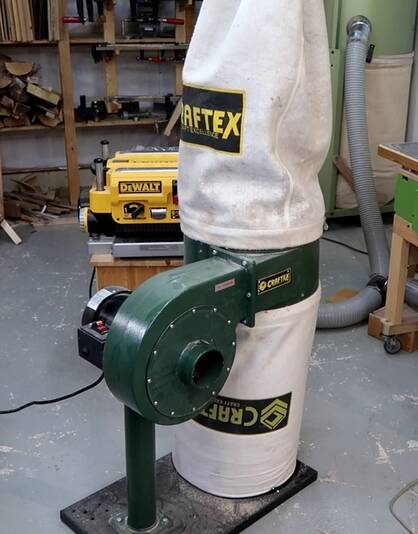

While I'm at it, I also tested my cheap 1 hp dust collector for comparison.

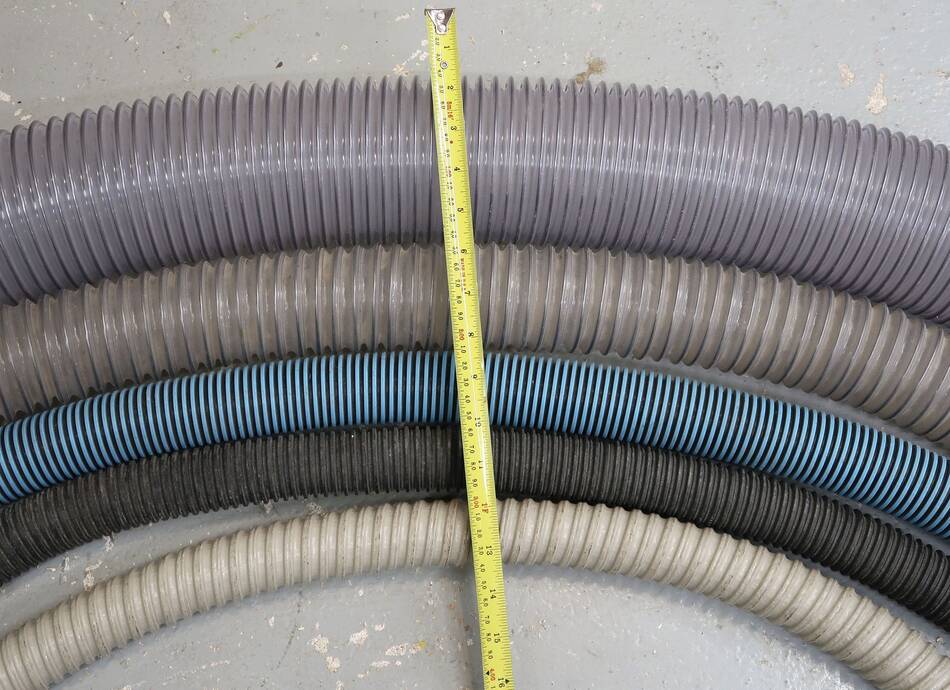

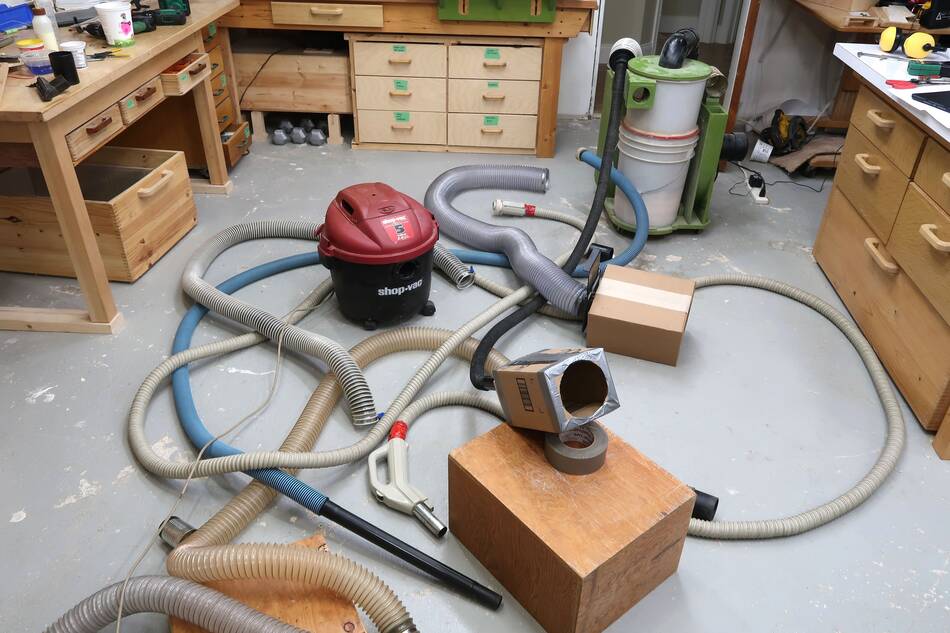

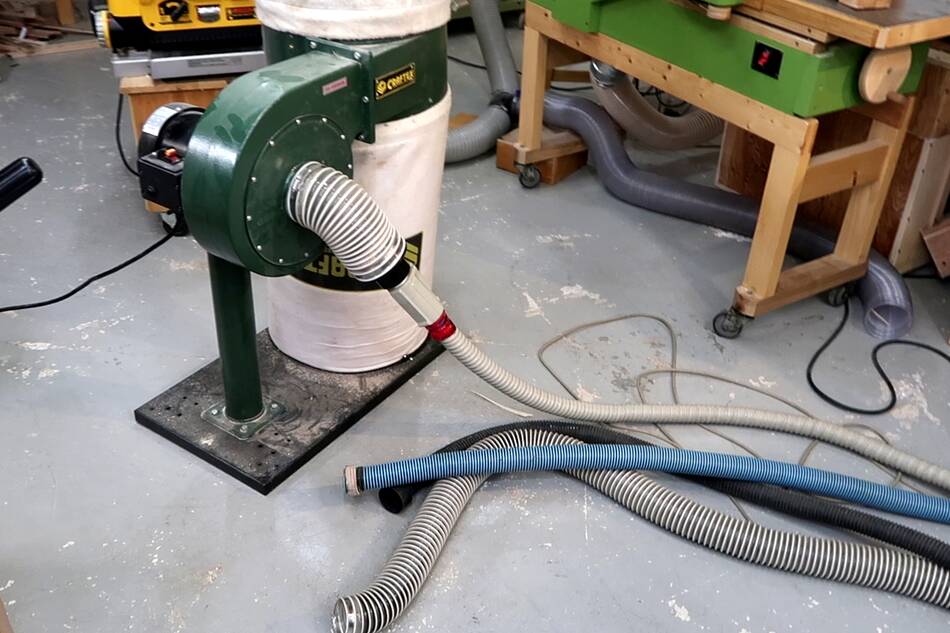

I tested it with all the same hoses and also with a 4" dust collector hose that it's meant to be used with. Here's all my hoses, top to bottom:

4" dust collector hose
2.5" dust collector hose
Pool hose (blue)
Shopvac hose
Central vac hose

The flow rate into my 1 HP dust collector, without a hose, was over 300 CFM, with a 4" hose (nominal 10' length) it was down to 233 CFM (down 22%). Still much more air flow than the shop-vac. But with a 10' length of 2.5" hose, it was only slightly more than the shopvac with that same hose, but with two 10' lengths of the 2.5" hose, it moved less air than the shopvac did through the same hoses. And the shopvac did much better than the dust collector with the thinner hoses.

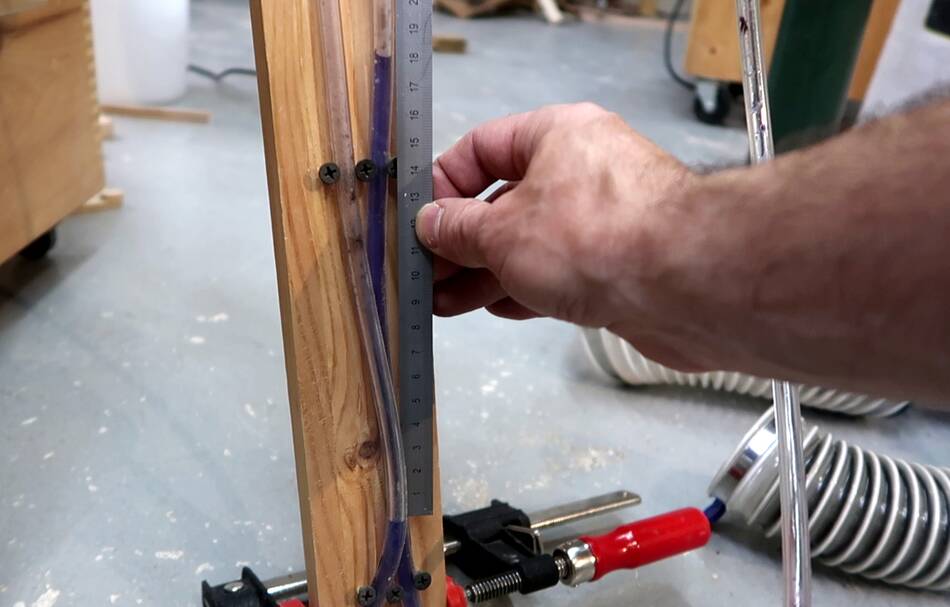

That's because the dust collector's maximum (static) suction is only equivalent to about 18 cm of water height, as measured with some dyed water in a U-shaped piece of hose.


The shopvac would have sucked the water straight out of my U-shaped piece of hose...

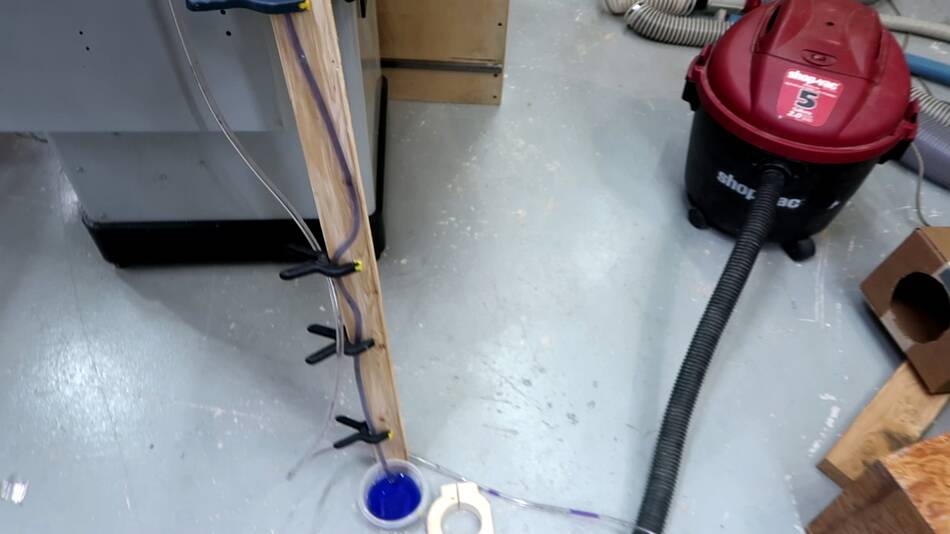

... so I sucked from a small container to see how high a water column it sucks. In retrospect, changing the setup may have been a bad idea because I will get lots of YouTube comments from people who won't understand that what matters is not the shape of the hose, but the difference in water surface heights, which is what I'm measureing.

The shopvac was able to pull water up about 107 cm. Which is consistent with what most shop-vacs and vacuum cleaners can pull. With over 6.5x the static suction, the shop-vac can do much better than a dust collector sucking through the constriction of a narrow hose.

Another thing to consider is that the dust collector, while running, draws about 500 watts, vs 900 watts for the shopvac. Yes, the big dust collector consumes much less power than the shop-vac, and it's also much quieter.

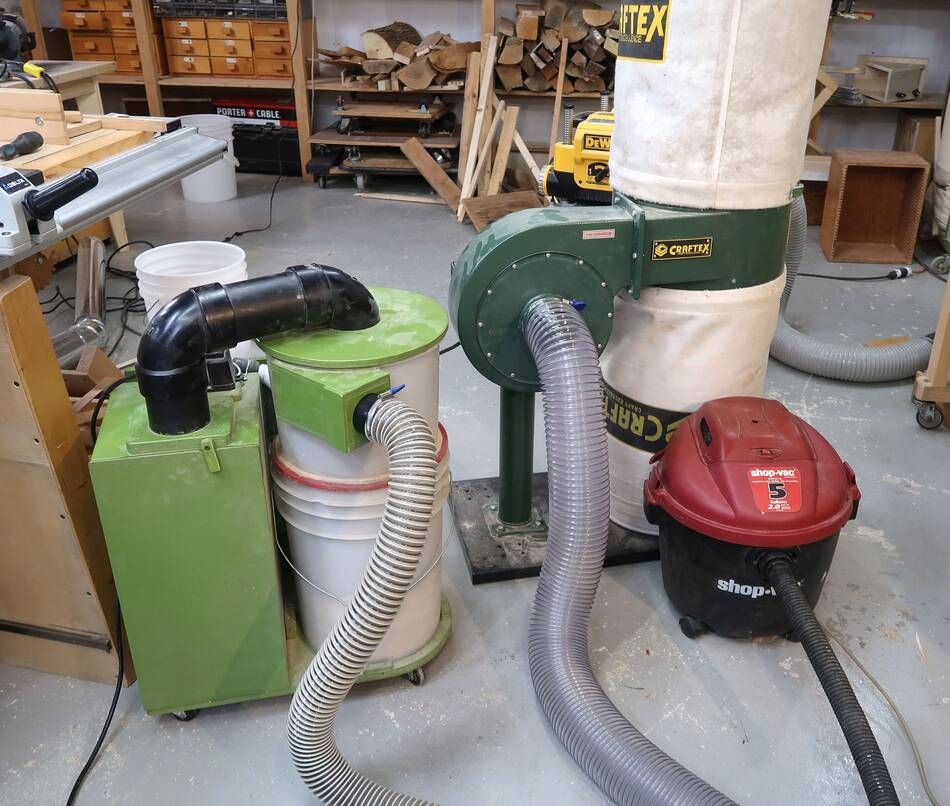

Next I tested my homemade dust collector, shown at left in the image at left.

This dust collector has 29 cm of static suction (1.6x more than the 1 hp dust collector, but much less than a third of the shop-vac's). It has more air flow (CFM) than the shopvac, but less than the 1 hp dust collector.

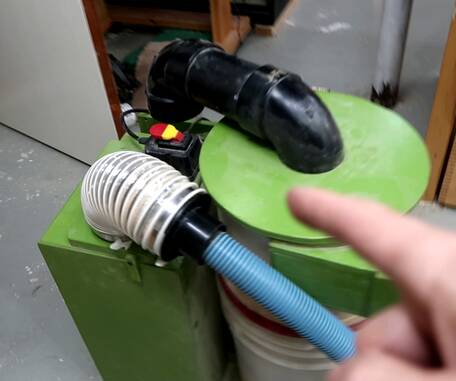

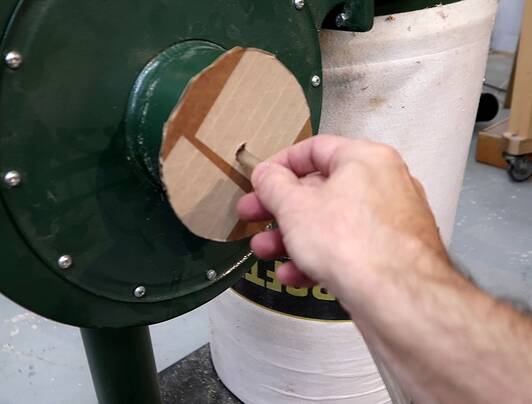

I tested it with different hoses, and with and without the cyclone. At right, with the hose hooked straight up to the filter box, bypassing the cyclone.

Without the cyclone, the air flow of this dust collector was close to that of my 1 hp dust collector. But the cyclone adds about as much air resistance as a 10' long piece of 2.5" dust collector hose.


Results

LoadShopvac1 hp DCHomemade
dust collector
Homemade
dust collector,
no cyclone
Static suction 107 cm18 cm29 cm29 cm

Air flow with different hoses, in CFM
No hose 91319104223
4" hose 10' (2m) 233 206
2.5" hose 10' (2.8m)  8291 82103
2.5" hose 20' (5.6m)7465 7691
2.5" hose 30' (8.4m)6558 6674
Pool hose (3.9m) 7040 5254
Shopvac hose (2m) 5331 4343
Central vac hose 35 1414
At left, results tabulated, in CFM. From these numbers, its clear that the air resistance of the two bucket cyclone is about equivalent to a 10' length of 2.5" hose. For a shopvac, the 2.5" hose doesn't reduce the airflow by much, but for a dust collector, it does. Note how the 1 HP dust collector went from 233 CFM with a 4" hose to 91 CFM with the 2.5" hose, a 60% reduction. But for the shopvac, the 2.5" hose was only a 10% reduction in airflow compared to no hose.

So the air resistance of a cyclone is not much of a problem for the level of suction that shopvacs have. Cyclones meant to be used with dust collectors tend to be larger and have less air resistance than the one I built, but still, the air resistance of a cyclone is a problem. For dust collectors with relatively little static suction, like my 1 hp dust collector, cyclones are not a good idea.

But what surprised me is just how much of a difference the hoses made. I guess the air flowing through the hoses makes for much more air resistance than the filter or blower in a dust collector.
