Stephan's tilting router lift

Hello Matthias.

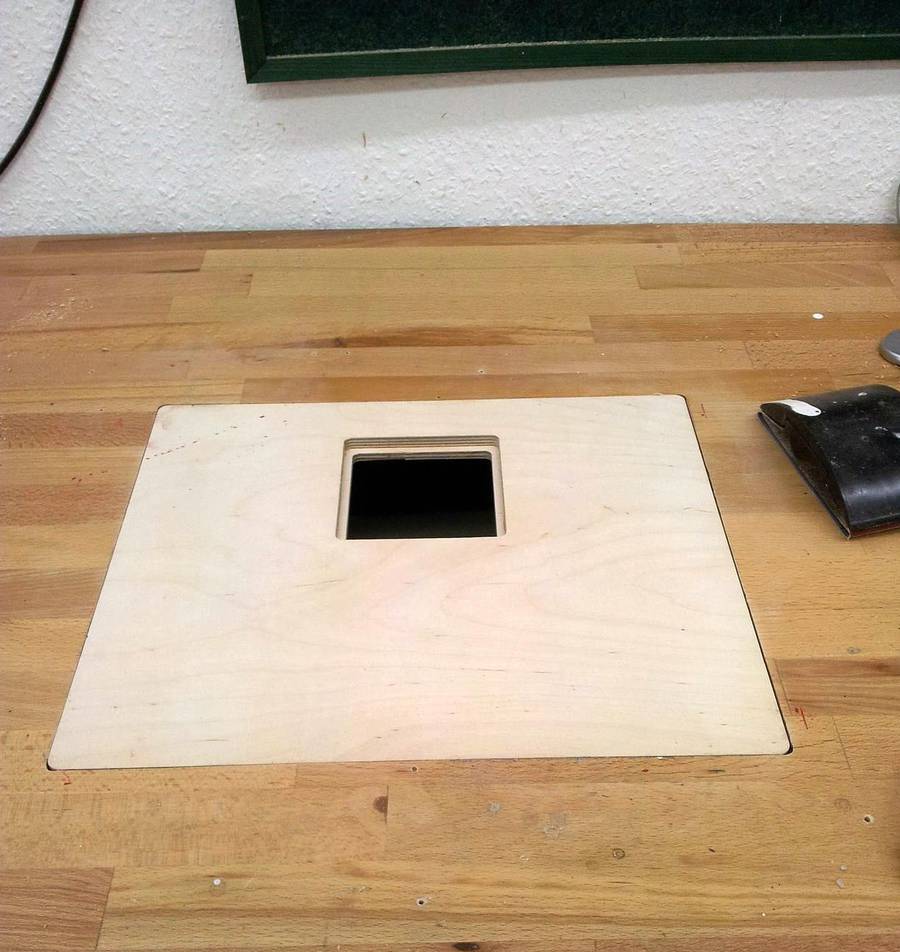

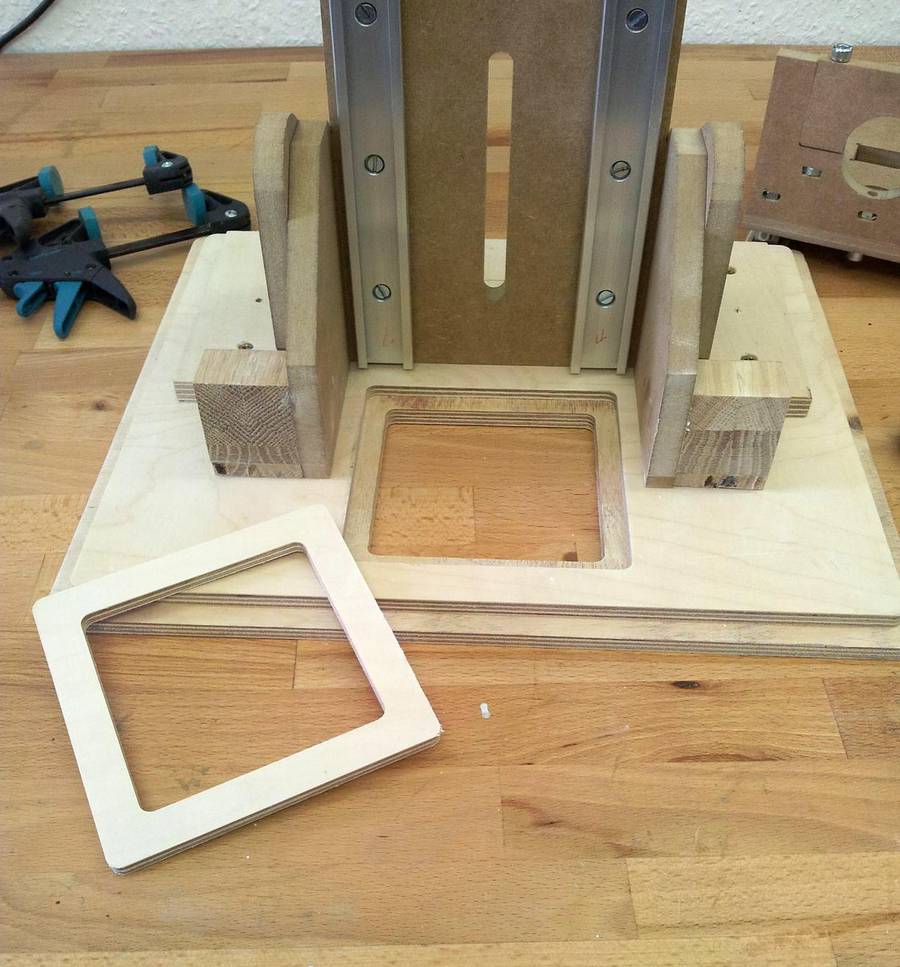

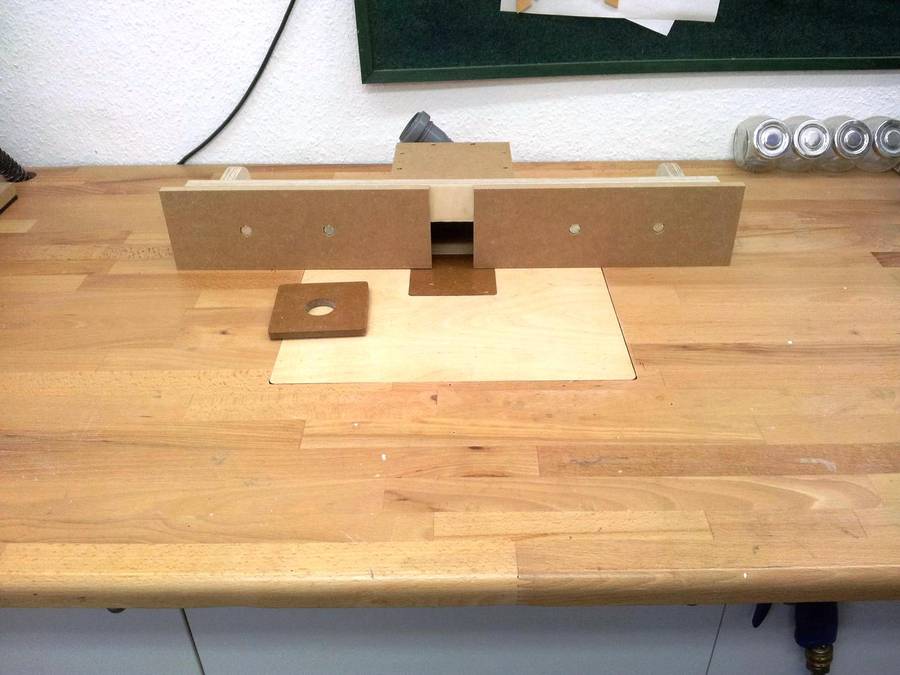

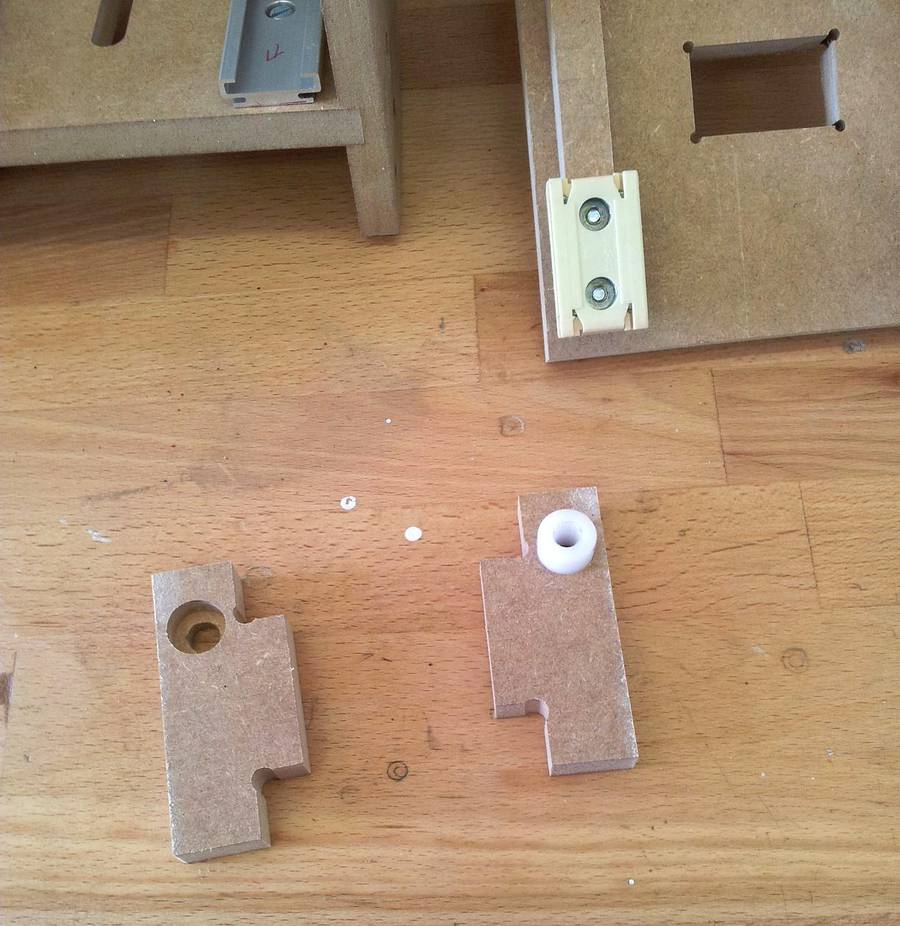

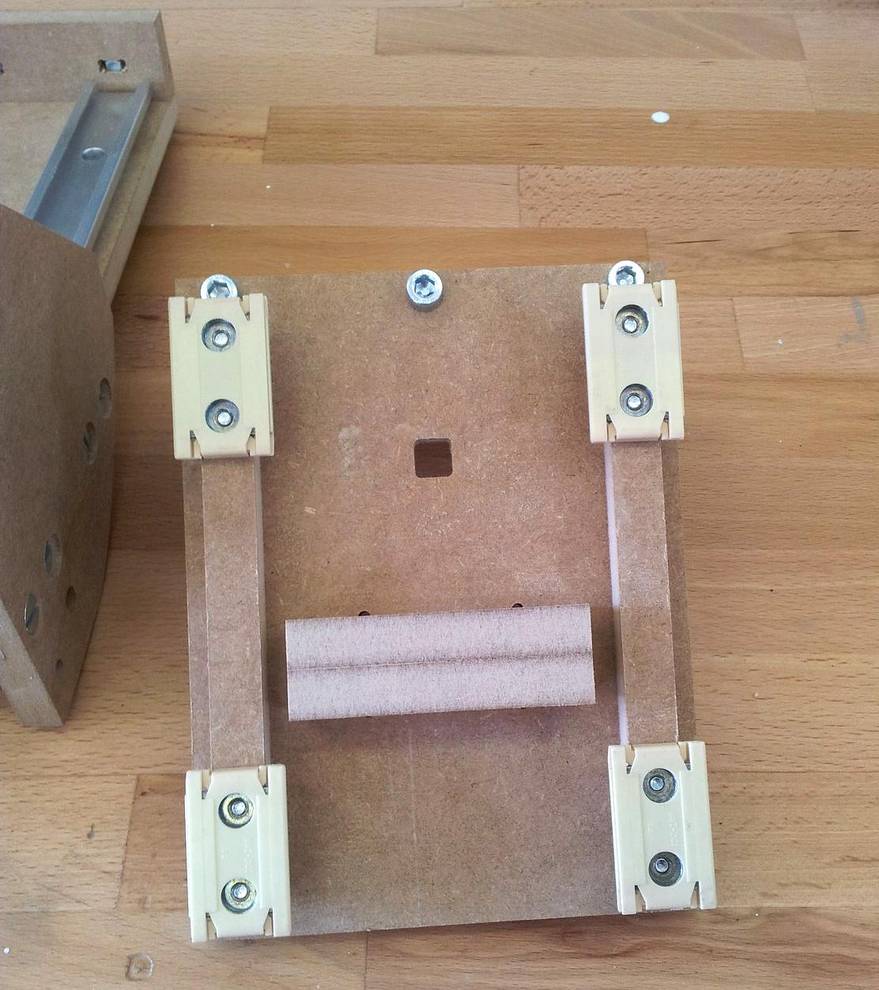

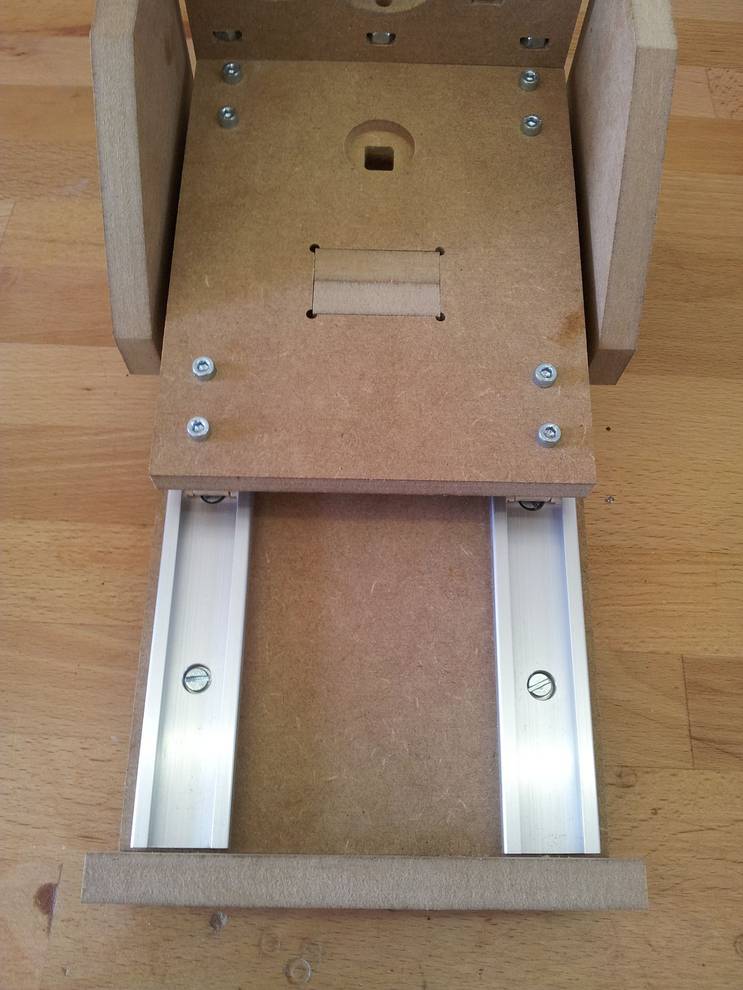

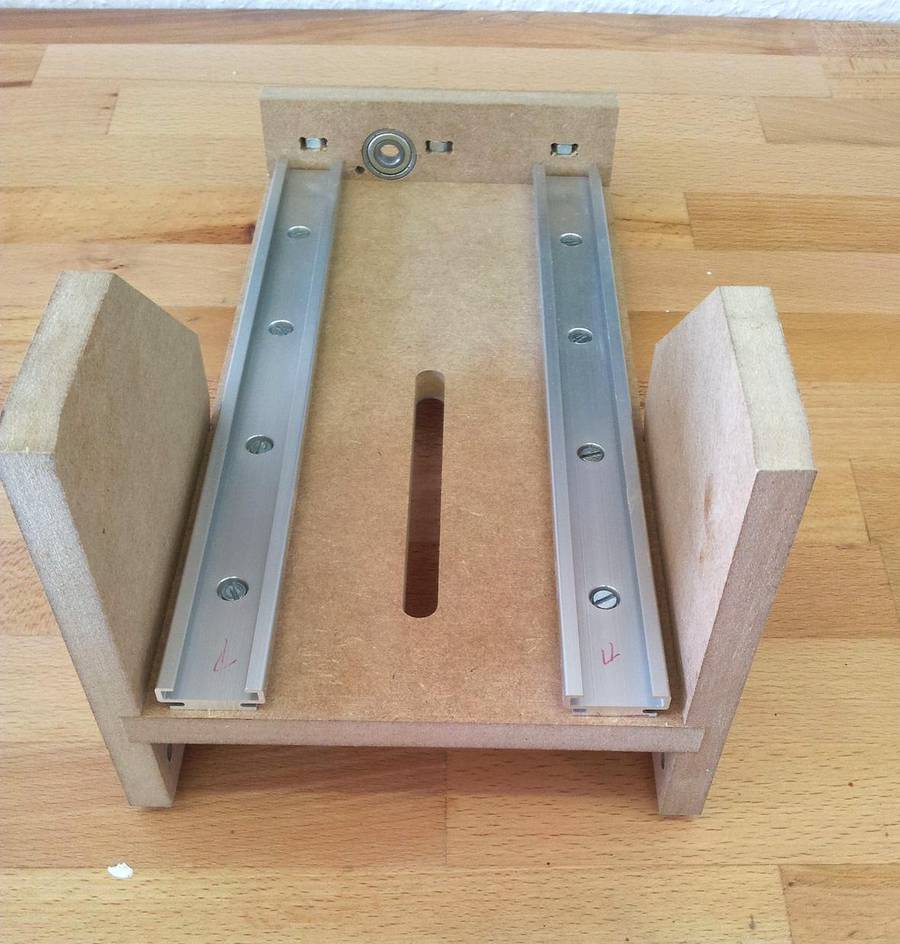

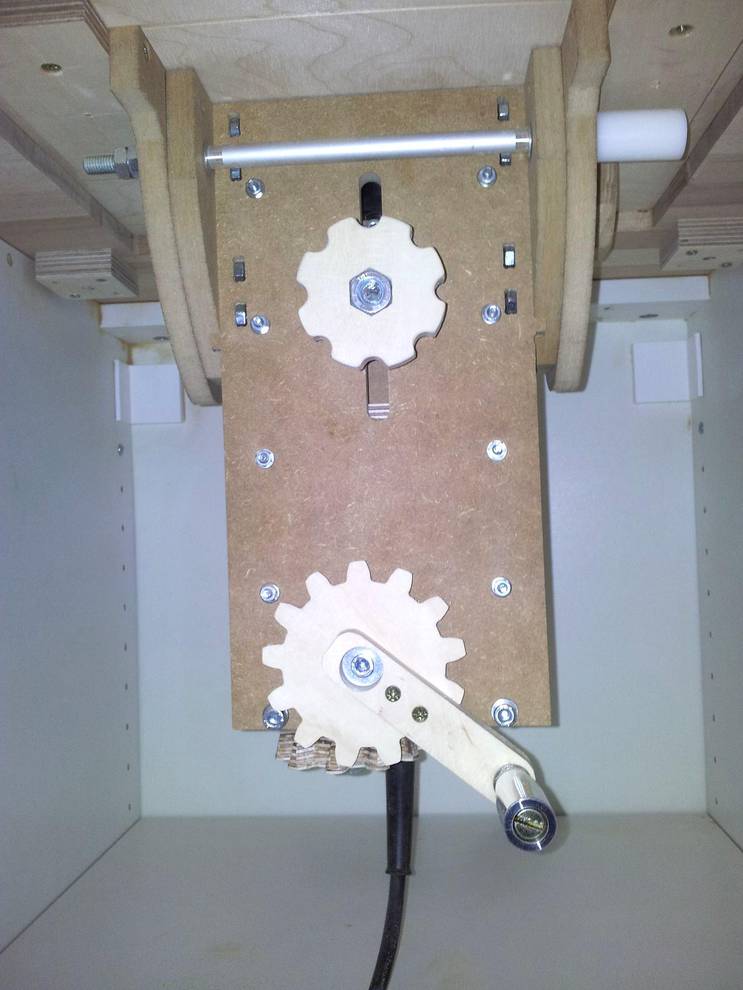

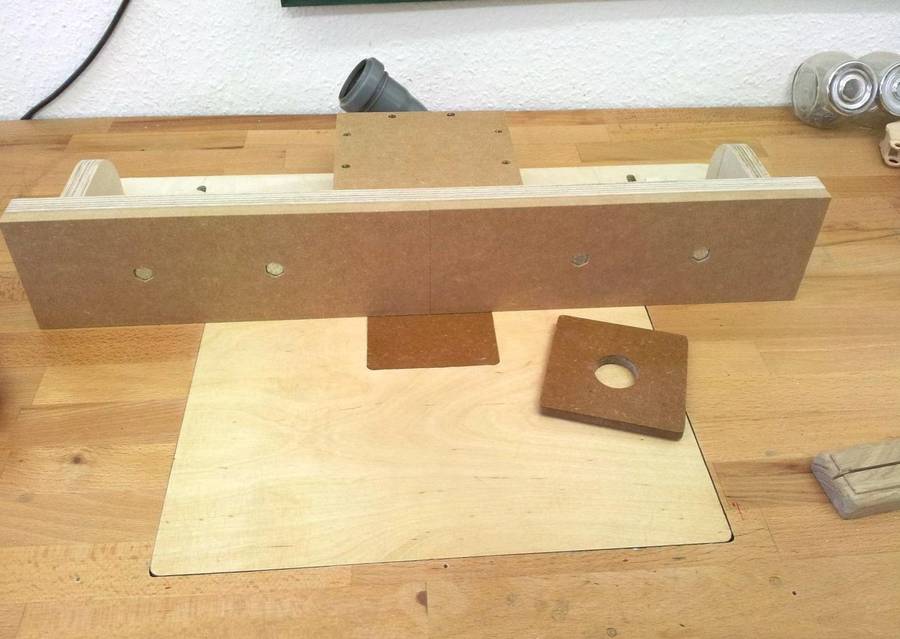

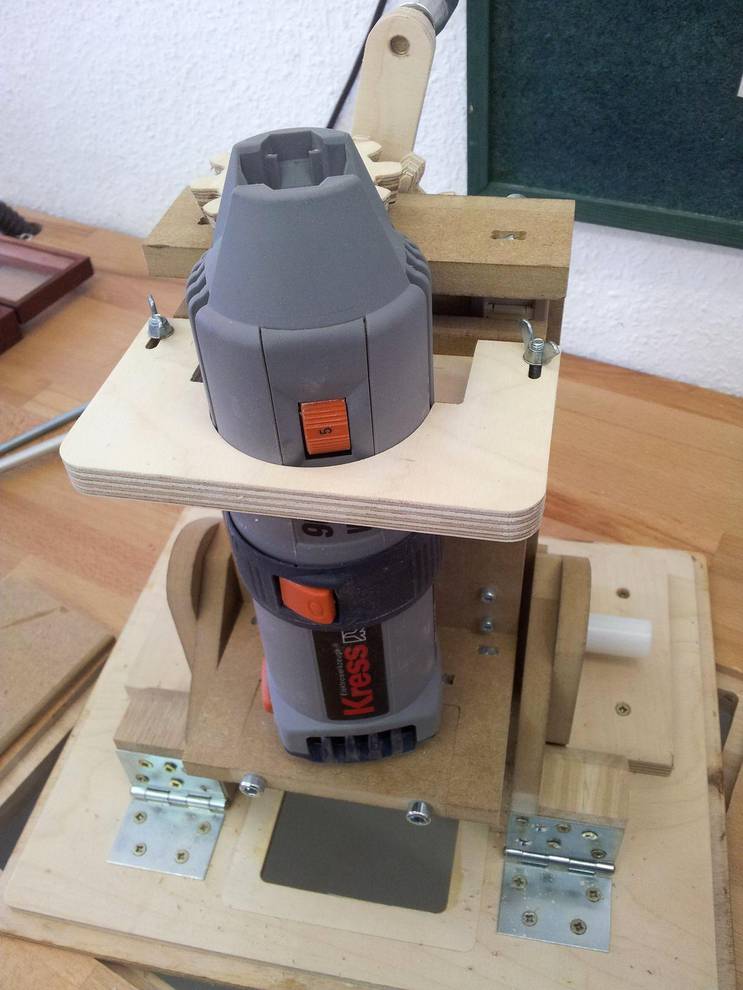

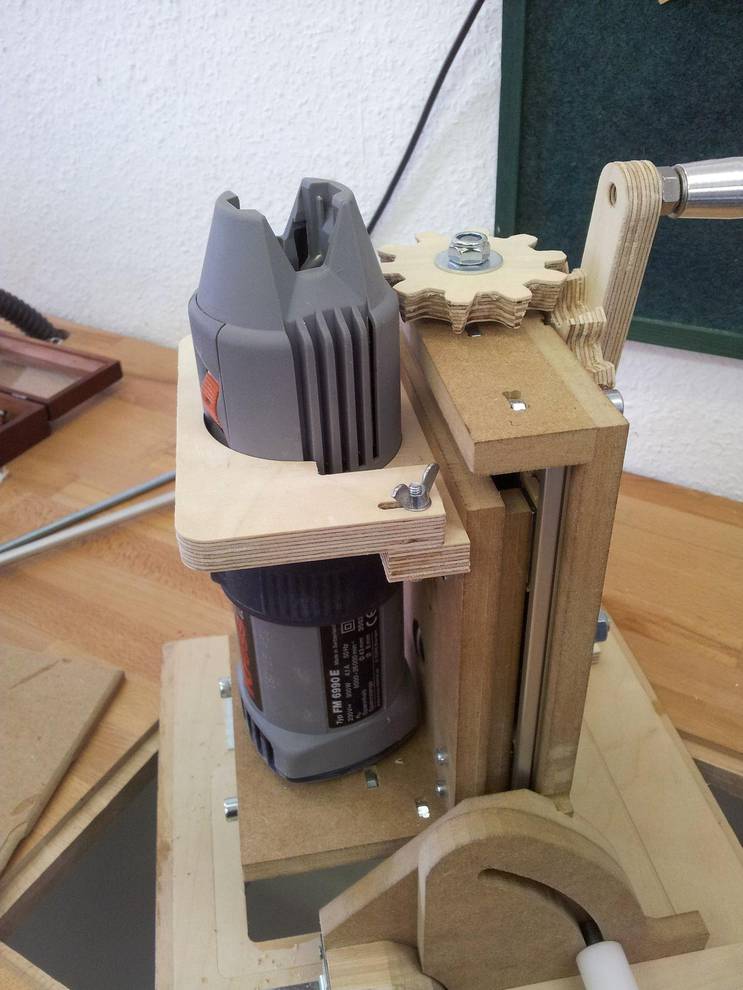

I bought your tilting router lift plans sometime ago (Feb. 2013). Now it is finished (May 2013). Since I have some parts laying around from older projects and tests, I used them to build the router lift. The linear glides a from Igus. I also have a lot of MDF 12mm boards. So I used them, too. My shop space is limited, so I integrated the router lift in my workbench. I use a CNC router for most of the parts and your very detailed SketchUp model helps a lot. Instead of the T-nut I made a part of POM.

Everything with your plans work great. Building was a lot of fun.

Stephan Billing
