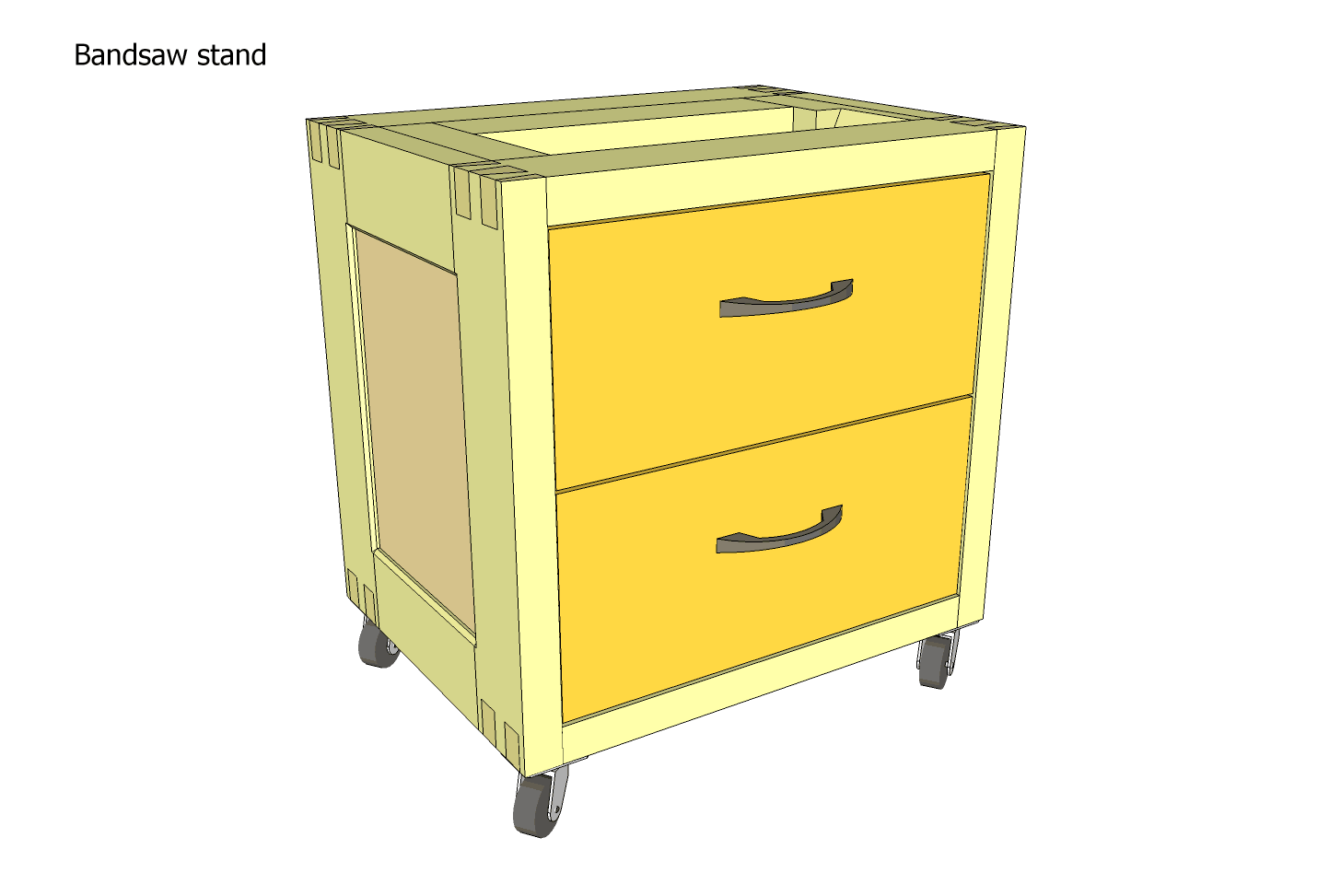

Bandsaw stand plans

Copyright 2010 Matthias Wandel

These plans for the bandsaw stand for this wooden bandsaw

Click on any image to enlarge
There is also a printer friendly version of these plans.

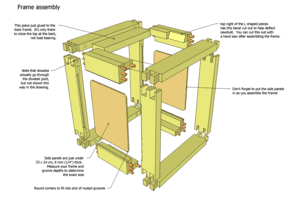

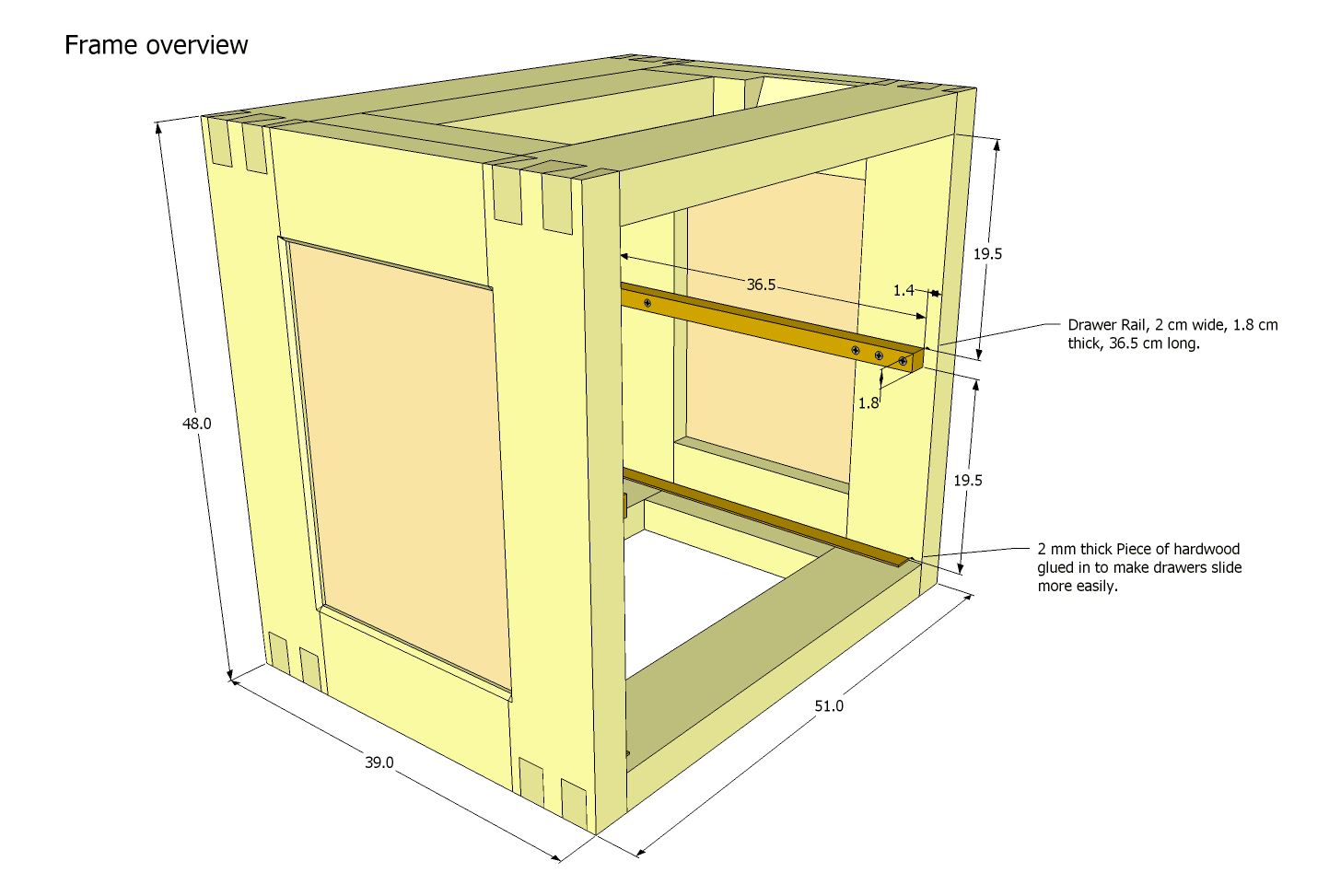

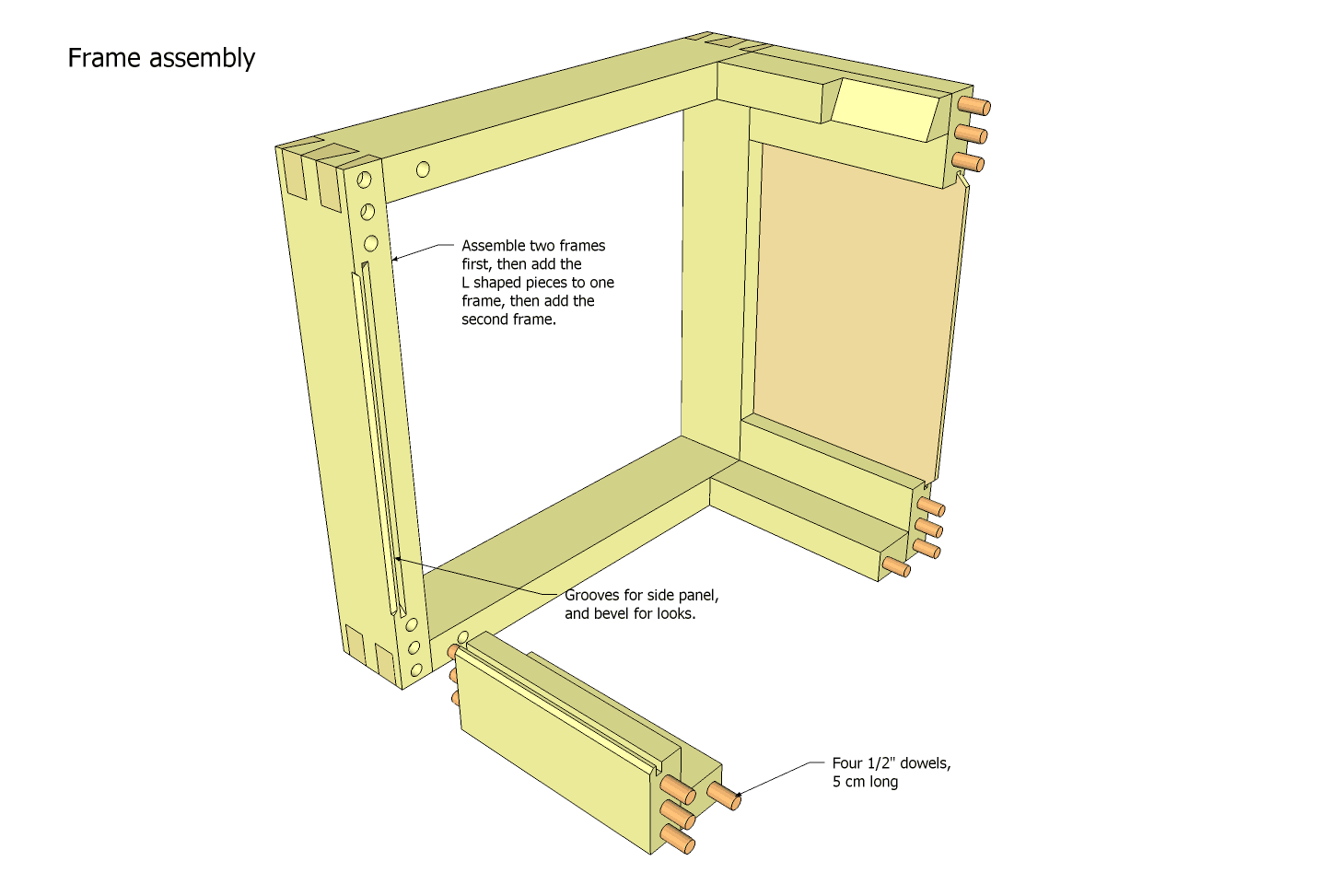

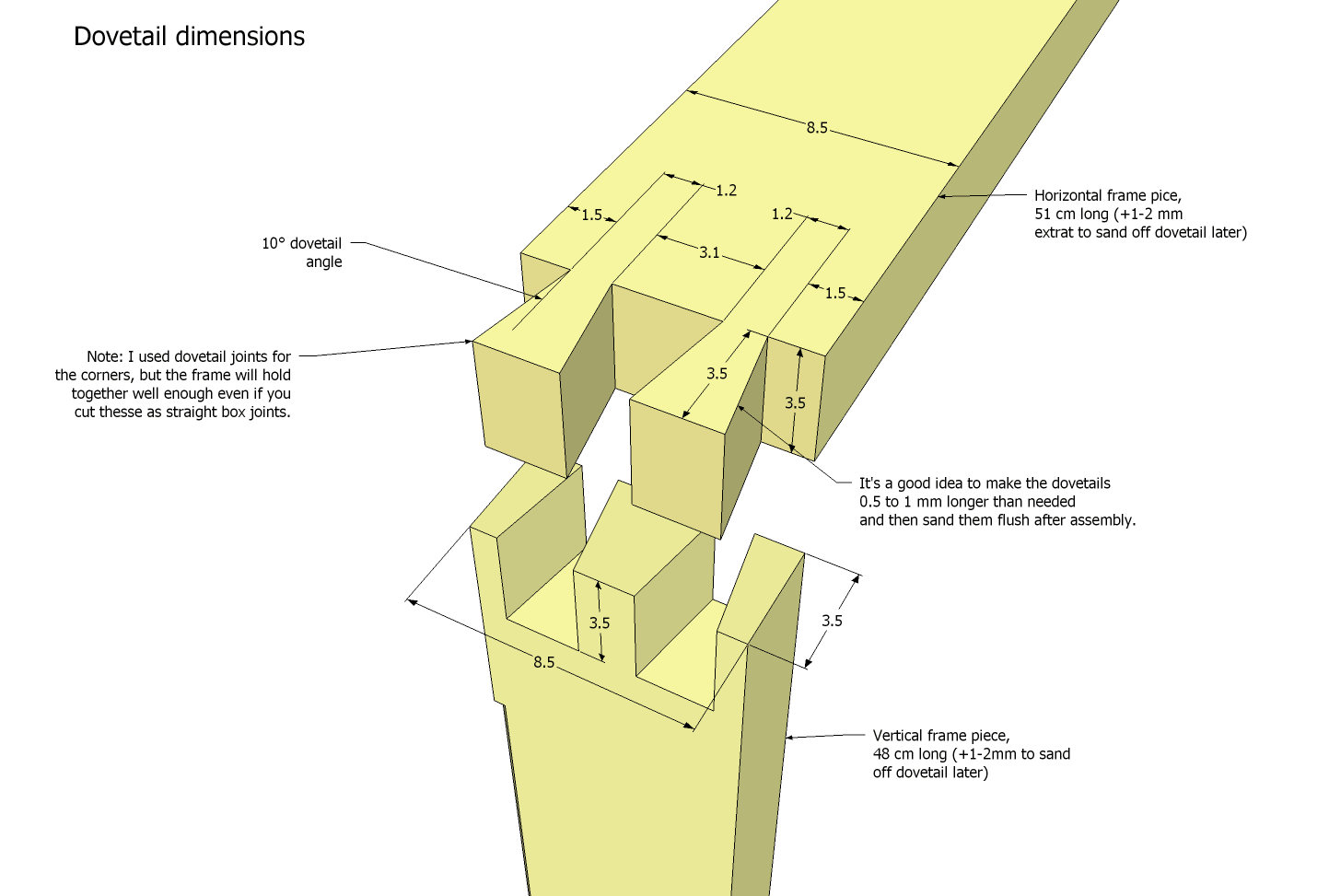

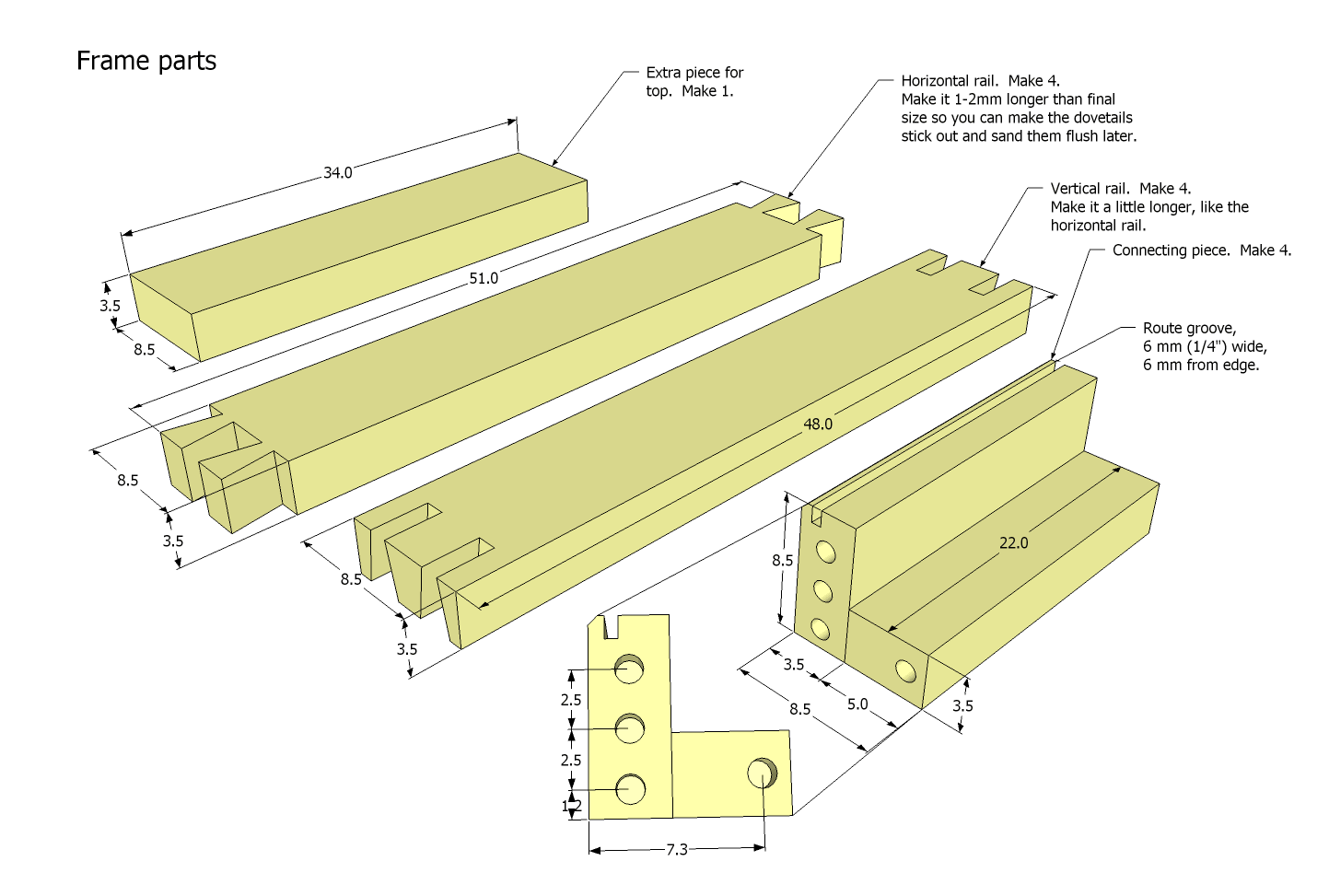

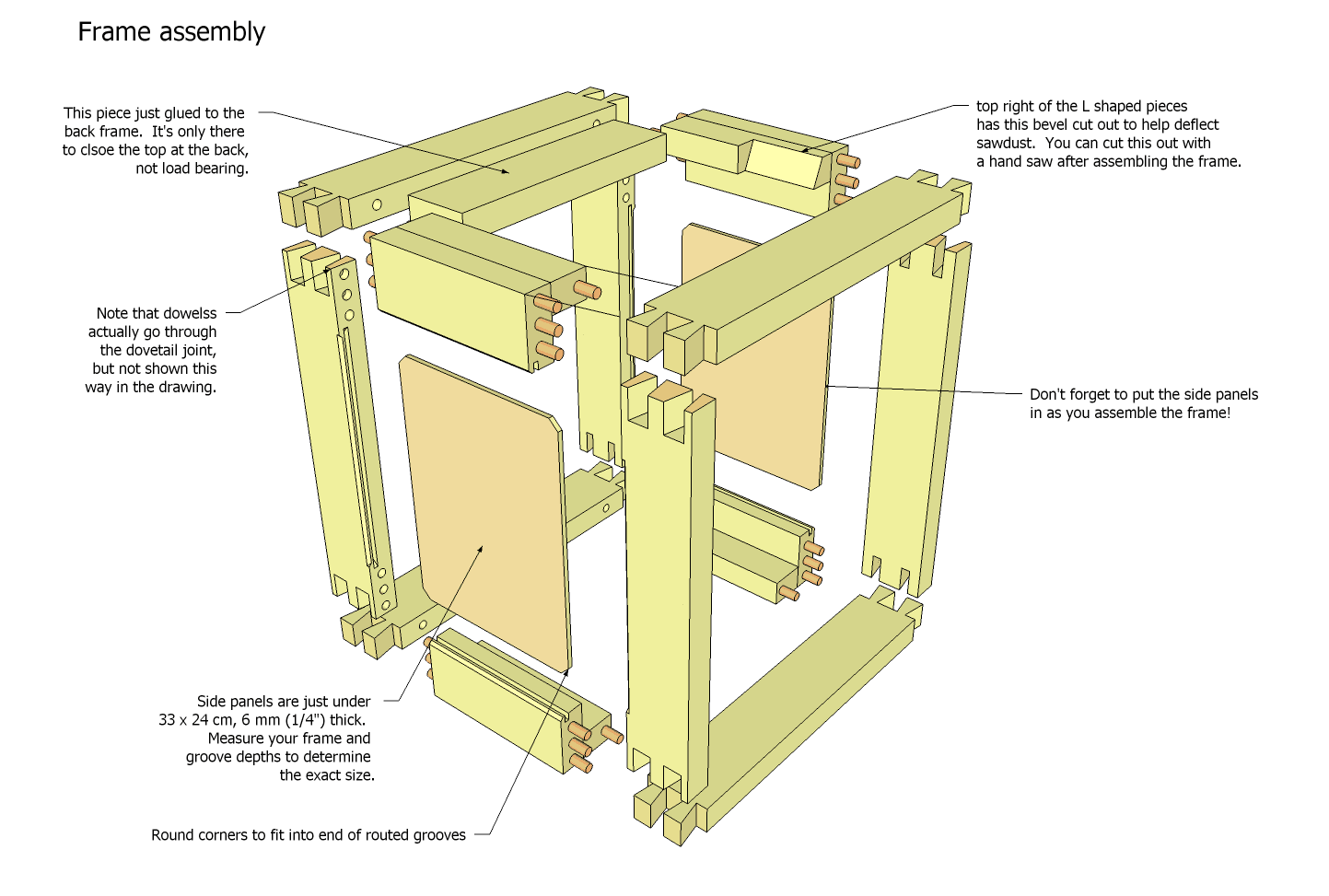

Frame

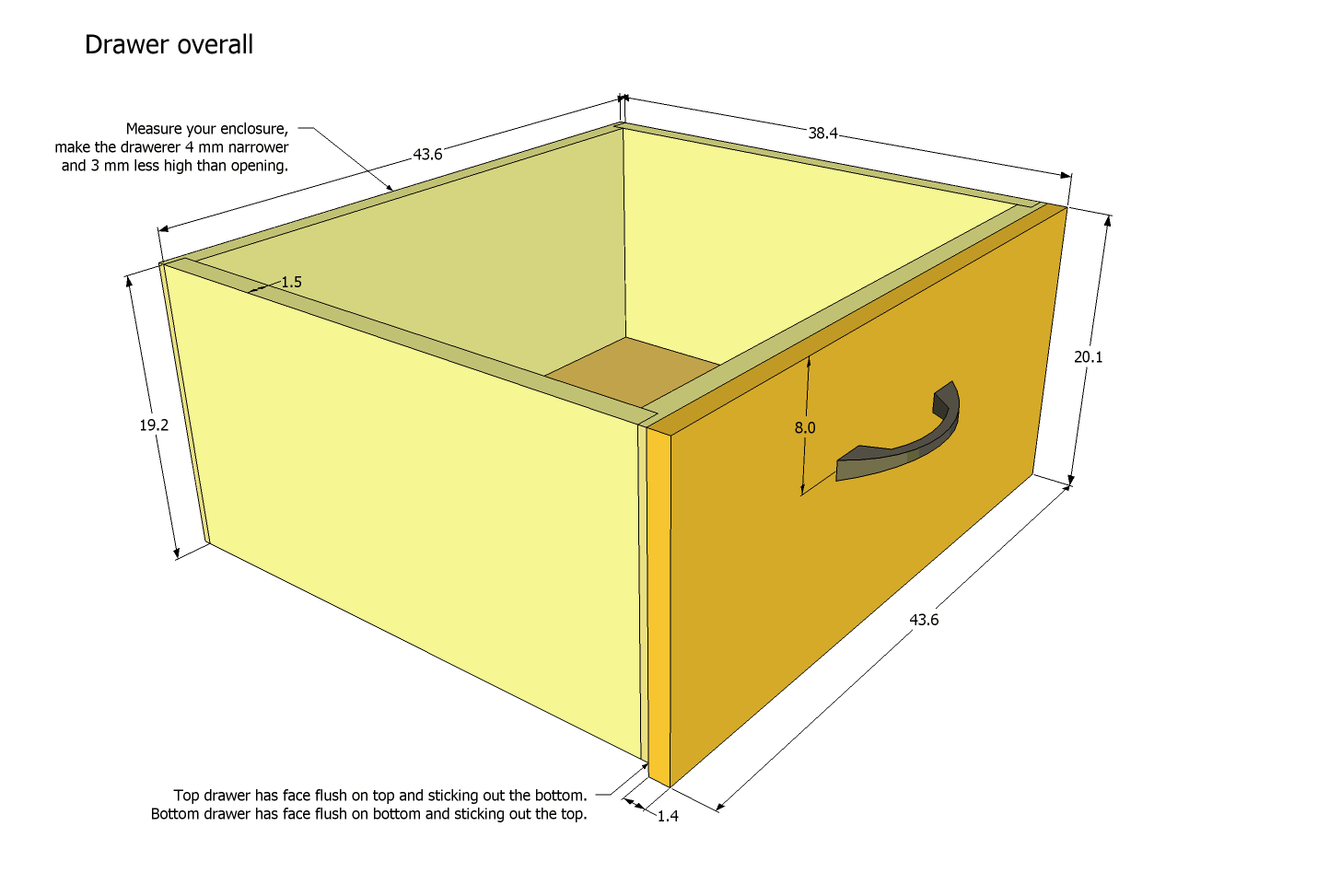

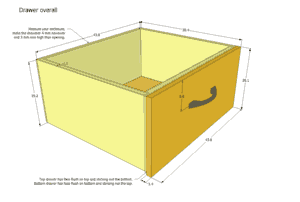

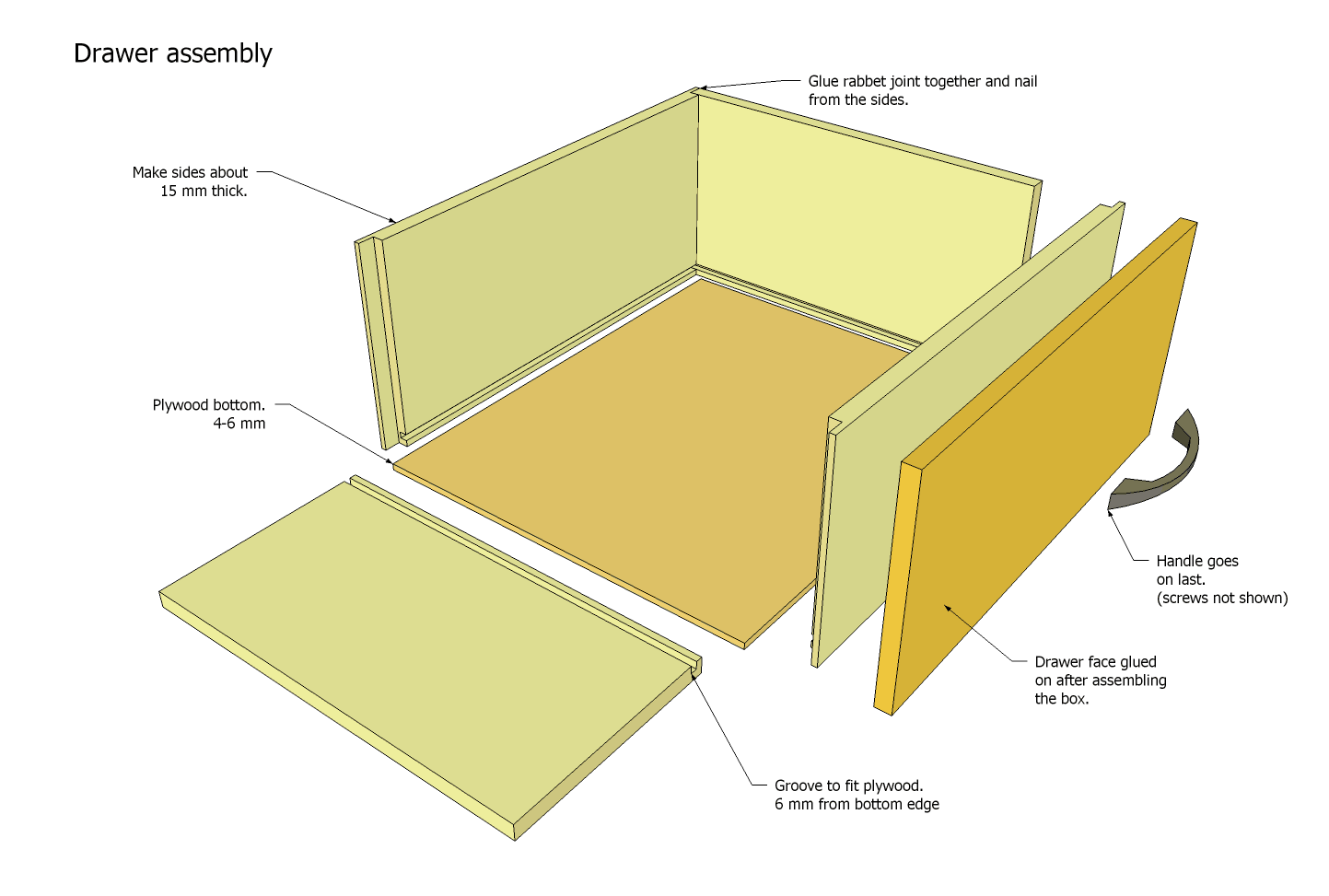

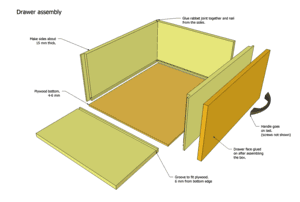

Drawers

Material required:

Spruce
Three 2x4's, or 1 2x8x12
Depending on quality, you may want to get more to work around defects.

Plywood
One half sheet (4'x4') 1/4" plywood, for drawer bottoms, sides and back.

Hardwood
Some nice hardwood of your choice for the drawer fronts,
21 x 90 cm x 14 mm (8.5" x 36" x 11/16")

Hardware
38 drywall screws, 1.25" (30 mm) long
4 2" (50 mm) caster wheels. Two of which should be locking.
2 drawer handles

Also see the accompanying article on building this stand

There is also a Sketchup model for this plan
