1x42" and 1.5x48" belt sander
plans for sale (2 plans 1 package)

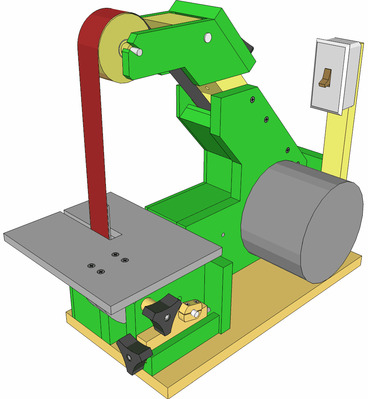

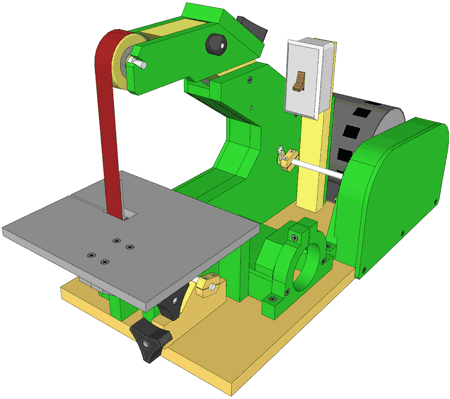

I have put the plans for my 1x42" strip sander and 1.5x48" strip sander into one package so don't have to decide which version to build ahead of time. Both are very similar in construction, but one is direct drive, the other belt driven. Personally I mostly use the strip sander XL, but the narrower belts on the 1x42" sander can get into places that the XL sander can't

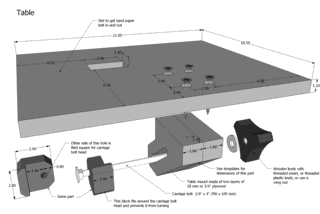

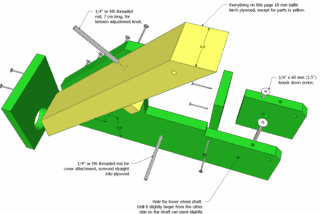

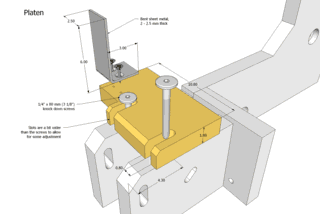

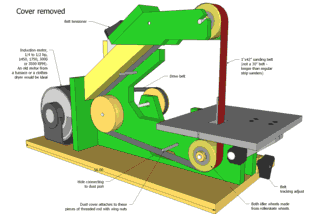

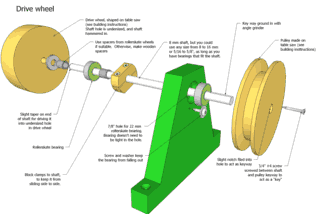

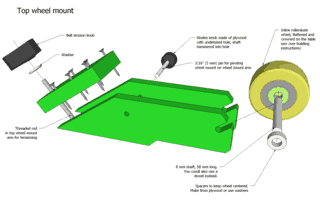

I have produced a detailed set of drawings for this machine. You can see a preview of the plans so you can get a better sense of what's inside before buying.

Included with the plans:

Also see the 1x42" sander specifications and 1.5x48" sander specifications

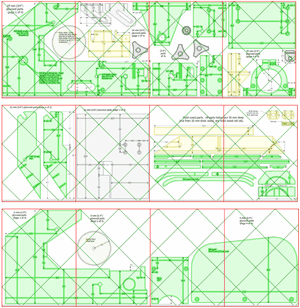

The plans include printable 1:1
cutting templates to simplify construction
See what's in the plans, and watch a Video about the 1x42" plans

The plans are in metric units, except for drill and shaft sizes, which are in imperial units. You can generate plans in imperial units simply by changing the units to "imperial" in SketchUp under "model info", but the units will not work out to even numbers like they do in metric.
Please also consider these important safety notes

Cost: $15
Or buy this plan and the 6x48" belt sander plans together for $22

On payment, you will be able to download your plans immediately.
The plans are a 12 megabyte zip file (your computer, Mac or PC, already knows how to open zip files) A download link will also be emailed to you automatically. Some email programs may treat this email as spam, so please check your spam folder if you did not receive the email.

You can checkout with your credit card or PayPal account.

If you encounter any problems with the download link or email, feel free to contact me at:
Sales email address
