Building the screw advance box joint jig videos

Building the screw advance box joint jig from these plans, as one 20-minute video.


Longer 4-part video series

I originally made this in 2012 as four videos totalling 40 minutes in length. If you are in the process of building these jigs, I recommend watching the longer videos.

Part 1:

Starting the stock holding box, starting the frame, adding splines to the stock box.

Part 2:

Guides for the box, plywood base, and bearing mounts

Part 3:

Aligning the bearing, threaded rod and nut, idler mount, gear cluster, gear mount

Part 4:

Finishing the gear mount, more gears, metal guide bar, handle

I didn't go into much detail on making the gears in the video because
I already have another article and video on how to make gears.

How long does it take to build?

People often ask how long it takes to build something like this. I don't usually keep track of time, and I most certainly can't predict how long it takes you to build something. But looking at the timestamps of the video clips, I had four sessions of three hours each when I built the jig. Each video represents about three hours of shop time, including setting up the camera tripod, and lights for every step and checking the videos as I went along, sometimes repeating steps to get better video.

I was, however, already familiar with the plans and had built this same jig before, so that is an advantage I have over you.

That said, editing together a video always takes much longer than building the project.

Some reader built box joint jigs:

Earl Davidson's
box joint jig
Yean-Yves's
box joint jig
Elyasaf Shweka's
box joint jig
Dave Tenney's
box joint jig
Gerald Finch's
box joint jig
Jim Lundin's
box joint jig
More screw advance box joint jigs on YouTube
By Joe Beukman
By Royer's custom woodworking
By par5endos562
See also:

The plans I used
Screw advance
box joint jig

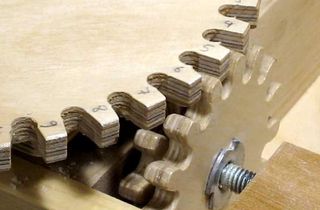

How to make gears
